When a handheld radio moves out of range, the network must quickly decide how traffic will reach it again. That decision becomes more complex when cameras, sensors, vehicles, and command systems share a changing multi-hop wireless topology with limited airtime. The Layer 2 vs Layer 3 MANET choice determines whether the mesh behaves like one extended Ethernet segment or a routed IP network. Understanding the difference helps planners evaluate mobility recovery, broadcast overhead, addressing, gateway control, and troubleshooting—so they can select bridging, routing, or a hybrid architecture that fits real operational demands.
At Layer 2, the mesh behaves like a distributed Ethernet fabric. Attached cameras, computers, sensors, or controllers can remain in the same subnet while the radio network decides how frames reach the destination MAC address. Higher-layer protocols need not understand the changing wireless path, which helps when endpoints cannot run a MANET routing protocol or depend on local discovery. The mesh can function as a virtual switch that carries Ethernet frames while keeping internal topology changes transparent to protocols above Layer 2.
Endpoint simplicity does not remove control work from the mesh. Nodes must still learn endpoint locations, handle unknown unicasts, deliver multicast traffic, prevent loops, and refresh forwarding state after movement. A small bridged deployment may feel straightforward, but a larger mobile broadcast domain requires tighter traffic control and more deliberate monitoring.
A routed MANET treats movement as a change in IP reachability. Each node discovers usable neighbors, maintains relevant topology information, and selects a next hop using metrics such as link quality, stability, hop cost, or available capacity. Subnets, external gateways, and policy boundaries remain visible rather than being concealed behind one broad Ethernet segment. Neighbor information normally includes both current connections and recently lost links so that routing decisions can respond to topology changes.
This model requires deliberate addressing and operators who understand routing state. In return, troubleshooting can follow an explicit chain: neighbor, metric, route, next hop, and gateway. Layer 3 trades endpoint transparency for clearer forwarding decisions, stronger traffic boundaries, and more controlled growth.
Design question | Layer 2 MANET | Layer 3 MANET |
Forwarding basis | Ethernet frames and MAC reachability | IP packets and routing information |
Endpoint view | One logical local network | Routed network boundaries |
Broadcast reach | May extend across the mesh | Usually contained within subnets |
Main strength | Transparent device connectivity | Segmentation, gateways, and scale |
The practical Layer 2 vs Layer 3 MANET distinction is therefore not whether one layer is universally faster. It is whether the deployment benefits more from hiding network changes from endpoints or exposing those changes to an IP routing system that can control them explicitly.
Consider a camera connected to a handheld radio while its operator moves behind a building. When the old path disappears, the Layer 2 mesh must learn that the camera’s MAC address is now reachable through another neighbor. Frames may be redirected, temporarily flooded, or held until forwarding information updates. The camera can often retain its IP address because mobility is concealed below Layer 3, preserving the experience of remaining on one logical local network.
Address continuity does not guarantee uninterrupted traffic. Stale reachability may send frames toward the former attachment point, while repeated movement can trigger additional flooding and retransmissions. An application may preserve its IP identity yet still experience a short pause, packet loss, or jitter while the bridge path changes. Rapid movement can make that difference visible even when endpoint configuration never changes.
Layer 3 recovery begins with a neighbor-state change. A node detects that a link has degraded, become one-way, or vanished; routing state then changes, a replacement next hop is selected, and traffic resumes. Neighbor discovery must distinguish a usable two-way relationship from a signal heard in only one direction. A dependable symmetric link requires both MANET interfaces to hear each other rather than treating every received transmission as proof of reliable bidirectional connectivity.
Metrics can favor a stable path over a stronger link that repeatedly appears and disappears. Link quality may incorporate signal-to-noise ratio, packet acknowledgments, packet loss, or control-message reception. Separate acceptance and rejection thresholds can also introduce hysteresis, preventing overly rapid changes in link status. This helps keep a marginal radio path from repeatedly entering and leaving the usable topology.
Proactive routing keeps routes ready before applications request them, reducing first-packet delay while consuming continuing control airtime. On-demand routing avoids maintaining every possible path but may add discovery delay after a break or when a new flow begins. The better behavior depends on whether the mission values immediate availability more than minimizing idle control traffic. Route acquisition time remains especially important for demand-based routing because applications cannot transmit until a usable path has been established.
Fast convergence can still select a low-capacity or short-lived route. Route flapping may reorder packets, queued data may arrive too late for real-time use, and retransmissions can consume the airtime the replacement path was meant to protect. A wider network partition is different from an ordinary link failure because no routing or bridging process can calculate a path that does not physically exist.
Tests should reproduce realistic walking, vehicle, airborne, and obstructed movement rather than rely only on disconnecting a stationary radio. Useful measurements include throughput, end-to-end delay, route acquisition, out-of-order delivery, packet loss, and control efficiency. Network size, average neighbor count, topology-change rate, and effective link capacity should also vary during testing.
These results show whether a Layer 2 vs Layer 3 MANET design recovers in a way that applications can actually use. The shortest interruption is not always the best outcome if it produces unstable paths, poor video continuity, or excessive control traffic immediately afterward.
Ethernet transparency carries more than application payload. ARP, IPv6 Neighbor Discovery, service discovery, multicast, and unknown unicast frames may cross several radios, with every relay competing for the same wireless medium. One small broadcast can therefore consume airtime at multiple hops before an endpoint receives useful data. IPv4 ARP is particularly relevant because its broadcasts may be seen by every participating node in a shared link model.
The effect matters when voice, video, command traffic, and telemetry share the channel. A quiet bridged mesh may run efficiently, while a discovery-heavy network can lose capacity without any endpoint appearing unusually busy. The concern is not that every Layer 2 MANET will suffer a broadcast storm. Rather, traffic multiplication depends on node count, forwarding implementation, hop depth, and the behavior of connected applications.
A subnet stretched across multiple underlying links also creates assumptions that require testing. Link-scoped multicast, Neighbor Discovery, duplicate-address detection, and applications designed around a one-subnet-to-one-link model may behave differently when that subnet spans a mobile multi-hop topology. Protocol-specific proxying can solve selected problems, but supporting a growing number of link-local applications increases complexity and becomes harder to scale cleanly.
Routing contains most endpoint broadcasts within local subnets, yet neighbor messages, topology updates, route requests, and gateway advertisements also consume airtime. Layer 2 vs Layer 3 MANET efficiency must therefore compare flooding overhead with routing control under the same traffic, mobility, and radio conditions. Describing Layer 2 as overhead-free would be just as misleading as treating every Layer 3 control packet as wasted capacity.
Key variables include node count, active routes, hop depth, topology-change rate, update frequency, traffic mix, packet loss, and retransmissions. A stable network carrying mostly unicast flows may have modest routing overhead. Rapid movement can make updates more expensive, although they may still consume less airtime than distributing every endpoint broadcast throughout the full mesh.
Delivered throughput and delay should be evaluated alongside the number of control and data transmissions required for successful delivery. This matters because control traffic and application payload often share the same capacity-limited wireless channel. Excessive internal overhead can therefore reduce external application performance even when nominal radio data rates remain unchanged.
Application payload + retransmissions + Layer 2 flooding or Layer 3 control traffic = occupied mesh airtime
The stronger architecture is the one that leaves enough usable airtime for mission traffic as topology and link quality change. That conclusion must be measured under representative loads rather than inferred from a simple Layer 2 versus Layer 3 feature comparison.
Choose Layer 2 when devices truly require one Ethernet domain, non-IP traffic must traverse the mesh, local discovery is essential, and broadcasts can remain controlled. Minimal endpoint changes may outweigh detailed path visibility. A small node count does not guarantee simplicity when applications generate continuous multicast, discovery, or unknown-unicast traffic.
Choose Layer 3 when the mission includes several subnets, teams, gateways, or security zones; when mobility requires explicit route control; or when operators must identify the path to a destination. Structured addressing and broadcast containment gain value as the deployment grows. Size alone remains an incomplete criterion because traffic behavior, hop depth, gateway count, and failure boundaries matter just as much.
Many deployments do not need an all-or-nothing answer. Small Layer 2 islands can connect cameras, controllers, or legacy endpoints, while a Layer 3 MANET carries traffic between mobile groups. Another pattern routes across the mesh but bridges local Ethernet devices behind each radio. Both approaches preserve adjacency where required without extending every endpoint broadcast across the complete topology.

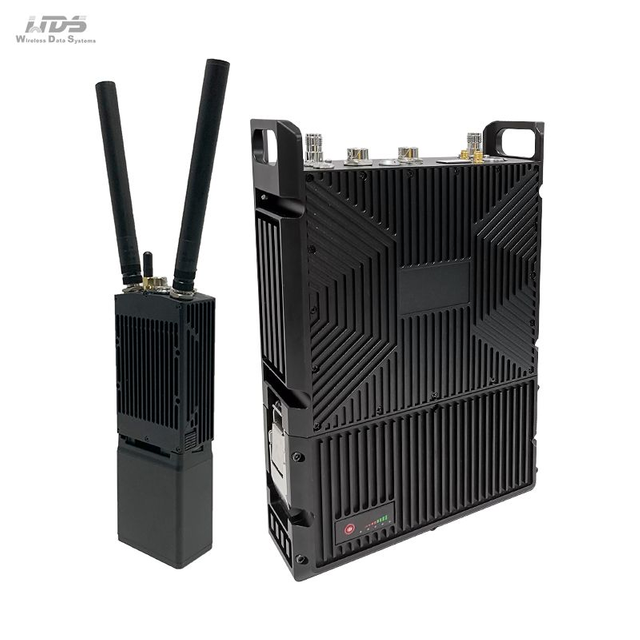

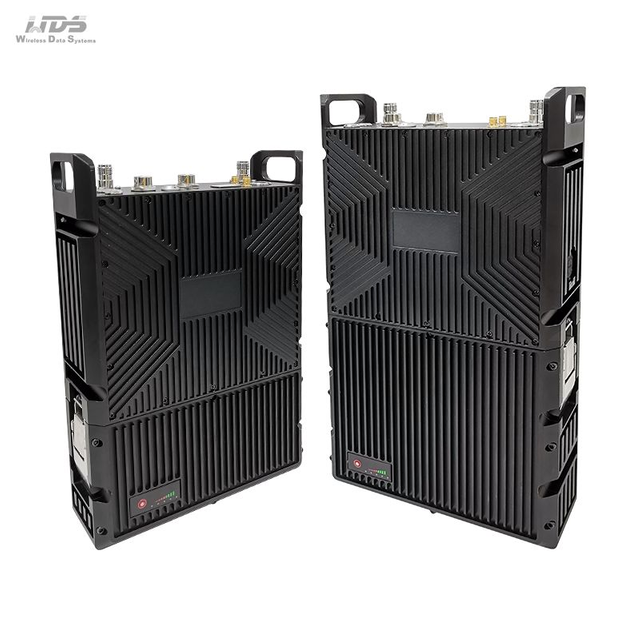

The WDS MIMOmesh handheld series supports a portable Layer 2 vs Layer 3 MANET deployment through dynamic routing, multi-hop relay, multiple topology modes, Ethernet and serial connectivity, and network-management visibility. The backpack series can also be configured with public-network, fiber, and satellite extensions, while both series support topology and link-status monitoring. These options allow the forwarding architecture to be chosen independently of the physical radio format.
Those capabilities create design choices rather than a predetermined answer. Before selecting the operating mode, ask:
● Must endpoints remain in one subnet, and is non-IP Ethernet required?
● How much broadcast, multicast, discovery, and real-time traffic will applications generate?
● How quickly will neighbors change, and how many hops are normal?
● Will the deployment use one gateway or several mobile exits?
● Are separate teams, traffic policies, or security zones required?
● Can operators diagnose dynamic routes, or is transparent endpoint behavior safer?
The answers usually point toward bridging, routing, or a hybrid more reliably than radio power, nominal throughput, or node count alone. A useful Layer 2 vs Layer 3 MANET decision connects the forwarding model to the mission’s applications, mobility pattern, gateway plan, and operational capabilities.
Choosing between Layer 2 and Layer 3 MANET is ultimately about matching network behavior to the mission. Layer 2 suits deployments that depend on transparent Ethernet connectivity, while Layer 3 offers clearer routing, traffic boundaries, and gateway control; hybrid designs can balance both needs. Shenzhen Sinosun Technology Co., Ltd. supports these choices through MIMOmesh handheld and backpack radios with Layer 2 or Layer 3 dynamic routing and multi-hop relay capabilities. Aligning the operating mode with mobility, airtime, addressing, and troubleshooting requirements helps teams build a mesh that remains manageable as conditions change.
A: Layer 2 bridges Ethernet frames using MAC reachability, while Layer 3 routes IP packets between subnets. This difference affects broadcasts, addressing, gateway control, and troubleshooting.
A: Neither is always better. Layer 2 preserves endpoint transparency, while Layer 3 provides explicit route control. Performance depends on convergence speed, link stability, traffic patterns, and hop count.
A: Yes. A bridged MANET can conceal path changes below the IP layer, allowing attached devices to retain their addresses while the mesh relearns their MAC reachability.
A: Broadcast, multicast, and unknown-unicast frames may be retransmitted across multiple wireless hops. This consumes shared airtime and can reduce capacity for voice, video, telemetry, and control traffic.
A: A hybrid design works well when local devices require Layer 2 adjacency, but the wider mesh needs Layer 3 segmentation, controlled gateways, structured addressing, and clearer route diagnostics.
