In a mobile ad hoc network, the hardest routing question is not simply how to find a path, but when that path should be created and how long it should be maintained. Constant topology changes can make precomputed routes stale, while on-demand discovery can add delay before traffic starts. For a MANET Mesh Radio network, that trade-off directly affects latency, control overhead, bandwidth use, and recovery after link failures. Understanding proactive, reactive, and hybrid routing helps engineers choose an approach that better matches traffic patterns, mobility, and real multi-hop operating conditions.
Proactive routing performs much of its work before application traffic needs a path. Nodes continuously or periodically exchange routing information, allowing them to maintain routes to reachable destinations in advance. When a device needs to transmit, the MANET Mesh Radio can usually consult an existing forwarding entry instead of beginning a new network-wide route search.
Reactive routing takes the opposite approach. Rather than maintaining every possible route, it discovers a path when a source actually needs to reach a destination. That reduces unnecessary routing activity when traffic is sparse, but a new communication flow may have to wait while the route is located. These two behaviors create a direct resource-versus-delay trade-off rather than a simple question of which method is universally better.
Hybrid routing divides the problem. A network can maintain frequently useful or nearby routes proactively while using on-demand discovery for destinations outside that scope. The goal is not to eliminate the costs of either model, but to place those costs where they create the most value.
Routing approach | Route availability | Control overhead | New-route delay | Most relevant when |
Proactive | Usually available in advance | Continuous or periodic | Low | Traffic is frequent or delay-sensitive |
Reactive | Created when needed | Mostly demand-driven | Higher during discovery | Traffic is intermittent or selective |
Hybrid | Depends on routing scope | Shared between both methods | Varies by destination | Local and distant traffic have different patterns |
The table is more useful as a starting point than as a selection rule. A proactive MANET Mesh Radio may provide fast access to known routes but spend valuable airtime maintaining paths that carry little data. A reactive design can avoid part of that control burden, yet repeated discoveries may become expensive when routes break frequently. Hybrid behavior becomes attractive when one part of the network needs persistent route knowledge while other destinations are contacted only occasionally.
A proactive protocol maintains enough routing state for nodes to forward traffic without first performing an end-to-end search. Routing or topology messages are exchanged at regular intervals or when relevant changes occur, and each node updates its view of reachable destinations. The result is a MANET Mesh Radio network in which forwarding information is generally prepared before a new application flow begins.
DSDV is a familiar distance-vector example, while OLSR represents a proactive link-state approach. OLSR regularly exchanges topology information and uses selected multipoint relays, or MPRs, to reduce redundant retransmissions during control-message flooding. The MPR mechanism limits the number of nodes required to forward broadcast control traffic, reducing unnecessary retransmissions compared with conventional flooding.
Proactive behavior is most compelling when a meaningful portion of the mesh communicates regularly. If many node pairs exchange data, maintaining routes that will soon be used can be more efficient than repeatedly discovering them. It is also worth evaluating when an application places a high value on predictable first-packet latency and the MANET Mesh Radio network has enough capacity to support continuing routing updates.
High mobility alone, however, does not make proactive routing the obvious choice. Rapid topology changes can make stored routing information obsolete more quickly, which may require more frequent control exchanges to keep the network view useful. A dense mobile mesh may therefore gain from ready routes while simultaneously paying a significant price for keeping those routes current.
Reactive routing postpones route creation until there is actual demand. AODV provides a clear example: when a source needs a destination for which it has no valid route, it can generate a Route Request, or RREQ. That request is disseminated through the ad hoc network until a suitable node can return a Route Reply, or RREP, establishing forwarding information toward the destination.
Once the route exists, normal traffic can use it without repeating discovery for every packet. If a link on the active path becomes unusable, AODV can generate a Route Error, or RERR, so affected nodes can invalidate the broken route and take corrective action. RREQ, RREP, and RERR work together to support route discovery, path establishment, and recovery after link failure.
Reactive routing can be attractive when only part of the network is actively communicating. Imagine a mesh with many radios deployed across a wide area but only a few active source-destination pairs at any given moment. Maintaining complete route information for every possible pair could consume channel capacity without delivering proportional value. Under those conditions, an on-demand MANET Mesh Radio strategy can concentrate routing effort around active traffic.
Intermittent telemetry, occasional file transfers, event-driven sensor traffic, and selective command links are examples of patterns that may benefit. The trade-off is that the first packet for a new destination can experience additional delay while a route is established. Demand-based routing can use network bandwidth and energy more efficiently when unnecessary route maintenance is avoided, but route discovery introduces additional latency.
Mobility changes the calculation because routes may stop being valid before they have delivered enough traffic to justify their discovery cost. A radio moving quickly is not automatically problematic if the overall formation preserves stable neighbor relationships. Conversely, relatively slow movement through buildings, terrain, interference, or antenna shadowing can break paths repeatedly.
For that reason, route lifetime is often a better operational question than vehicle or platform speed. If a MANET Mesh Radio repeatedly discovers a path only to lose it moments later, reactive overhead and interruptions can rise quickly. The suitability of on-demand routing therefore depends on both traffic demand and how long discovered paths remain useful.
Hybrid routing tries to place proactive route maintenance where it has the greatest benefit while avoiding network-wide maintenance for every possible destination. The Zone Routing Protocol, or ZRP, illustrates the idea clearly. Each node maintains routes proactively within a local routing zone, while destinations outside that zone are reached through a reactive query-and-reply mechanism.
In ZRP, the routing zone is defined by a configurable radius measured in hops. A larger radius means that a node knows more of its surrounding topology proactively, increasing immediate route availability but also expanding the scope of routing maintenance. A smaller radius limits that local control burden while pushing more distant communications toward reactive discovery.
ZRP is best treated as an architectural example rather than proof that every hybrid MANET Mesh Radio uses the same mechanism. ZRP remained an IETF Internet-Draft rather than becoming an Internet Standard, but its local-proactive and global-reactive structure remains a useful model for understanding hybrid routing behavior.
The hybrid model becomes especially relevant when traffic is not distributed uniformly across the network. A group of nearby nodes may exchange voice, telemetry, or coordination data continuously, while communication with more distant nodes occurs only occasionally. Maintaining nearby routes can minimize delay for common local traffic, while on-demand discovery avoids continuously tracking every remote path.
Larger or operationally diverse meshes can therefore justify evaluating hybrid behavior. The challenge is configuration rather than a simple protocol label: zone size and routing scope determine how much proactive overhead is accepted and how often reactive discovery is required. A hybrid MANET Mesh Radio should consequently be tested under realistic node spacing and traffic distribution instead of being assumed to outperform both pure approaches automatically.
Begin with the traffic the network must actually carry. Continuous video, voice, command links, persistent telemetry, and frequent node-to-node data exchanges create different routing demands from occasional sensor reports or file transfers. When communication is constant and the destination can change quickly, route readiness may deserve greater weight; when only a few paths are active, maintaining unused routes may be harder to justify.
Route stability should be assessed separately from raw mobility speed. Radios mounted on aircraft or vehicles moving in formation can travel rapidly while maintaining relatively stable neighbor relationships. By contrast, a slower MANET Mesh Radio moving behind structures, terrain, vegetation, or other obstructions may experience frequent link changes despite its lower physical speed.
The useful measurement is how long an end-to-end route remains viable and how quickly communication recovers when it does not. Application requirements then determine whether a brief route-discovery or recovery interval is acceptable.

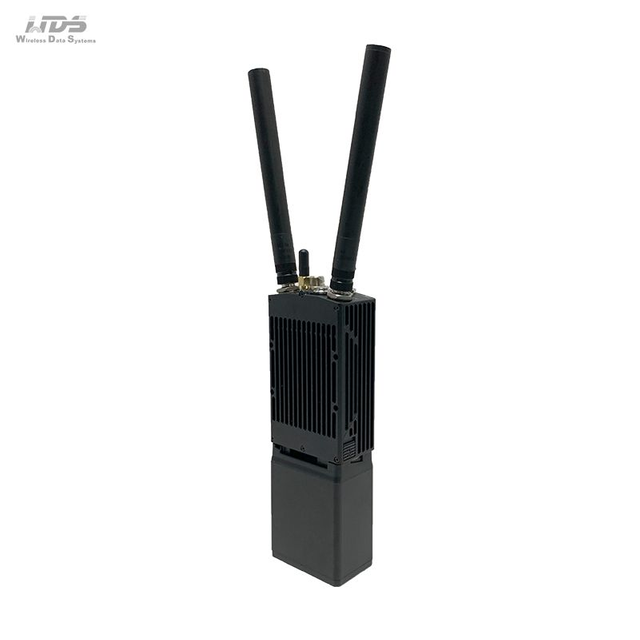

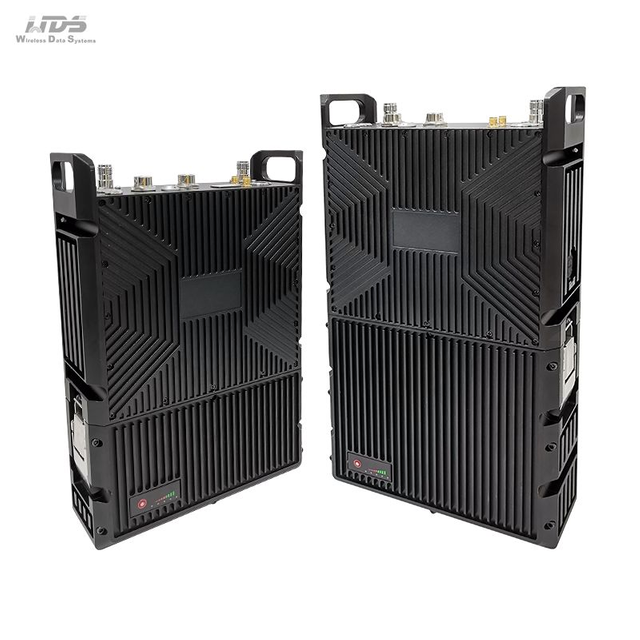

Protocol theory becomes useful only when it is connected to what the radio platform actually implements and measures. WDS MIMOmesh Lightweight Airborne Series combines a distributed, centerless wireless ad hoc architecture with Layer 2 or Layer 3 dynamic routing, multi-hop relay, and point-to-point, point-to-multipoint, multipoint-to-multipoint, star, line, network, and hybrid topology modes. These capabilities are relevant when evaluating how a MANET Mesh Radio can fit into mobile multi-hop deployments without assuming that it implements a particular textbook routing protocol.
The MIMOmesh lightweight airborne MANET Mesh Radio series supports an average single-hop delay of 6 ms under a unidirectional 20 MHz condition, together with network access, update, or switchover time below one second and multi-hop networking capability. These values should be treated as operating specifications tied to defined conditions rather than as evidence that the radio uses AODV, DSDV, OLSR, ZRP, or another named algorithm.
A useful routing decision matrix is therefore straightforward:
Deployment behavior | Routing approach to evaluate first |
Frequent traffic, changing destinations, strict first-packet latency | Proactive |
Sporadic traffic, relatively few active routes, greater discovery tolerance | Reactive |
Frequent local traffic with occasional communication beyond the local group | Hybrid |
The final selection should still come from representative testing. A MANET Mesh Radio may perform differently as hop depth, channel congestion, mobility, interference, and concurrent traffic increase, even when its underlying routing strategy looks appropriate on paper. Testing should reproduce the expected formation, node count, application mix, and failure events closely enough to reveal how route maintenance competes with payload traffic.
For distributed MANET Mesh Radio systems such as WDS MIMOmesh, capabilities such as dynamic routing and multi-hop relay provide a starting point for validation. The deployment team should confirm how quickly routes adapt, how throughput changes over several hops, and whether latency remains acceptable when the topology is disturbed. That evidence is more valuable than selecting equipment simply because its specifications use the term MANET Mesh Radio.
Choosing among proactive, reactive, and hybrid routing comes down to how a network balances route readiness, control overhead, mobility, and recovery time. A MANET Mesh Radio should therefore be evaluated against real traffic patterns, hop counts, and link changes rather than by protocol labels alone.
For deployments that need mobile multi-hop connectivity, Shenzhen Sinosun Technology Co., Ltd. offers MIMOmesh systems with dynamic routing and multi-hop relay capabilities. Used with realistic field testing, these capabilities can help teams build networks that maintain communication more efficiently as topology and operating conditions change.
A: MANET routing protocols are commonly grouped into proactive, reactive, and hybrid approaches. They differ mainly in when routes are created, maintained, and updated as network topology changes.
A: Proactive routing maintains routes continuously, reducing route setup delay. Reactive routing discovers paths only when needed, which lowers routine control traffic but can increase initial transmission latency.
A: There is no universal choice. Performance depends on route stability, traffic frequency, node density, hop count, and recovery requirements rather than mobility speed alone.
A: A MANET Mesh Radio can forward traffic through neighboring nodes, allowing data to reach destinations beyond direct radio range while routes adapt to changing connectivity.
A: AODV is a reactive routing protocol. It discovers routes on demand using route request and reply messages, then repairs or replaces paths when active links fail.
A: Routing messages share limited wireless airtime with application traffic. Excessive control traffic can reduce usable throughput, especially as node count, mobility, and multi-hop activity increase.
