A mesh radio network can look simple until traffic begins crossing several wireless hops. Should remote devices remain on the same Layer 2 segment, or should each part of the network use Layer 3 routing between subnets? Both approaches are valid, but they affect broadcast scope, IP planning, mobility, and traffic flow in different ways.
Choosing the right Mesh Radio Router architecture starts with understanding those operational differences. The sections below compare bridging and routing where they matter most, helping you match the network design to real deployment needs rather than relying on a default configuration.
Layer 2 bridging makes the wireless mesh behave much like a distributed Ethernet switch. Frames can cross multiple radio links while connected cameras, controllers, sensors, laptops, or other devices remain members of the same logical network. Layer 2 mesh operation can transparently carry traffic such as IPv4, IPv6, DHCP, and other higher-layer protocols without requiring endpoints to understand how the wireless path changes underneath them.
That transparency is useful when equipment must retain existing IP addresses or when an application genuinely depends on Ethernet adjacency. The trade-off is that broadcasts, unknown unicast traffic, ARP, discovery messages, and some multicast traffic can extend across the same Layer 2 domain. In a multi-hop wireless environment, those transmissions consume shared RF resources rather than essentially free switch-fabric capacity.
A routed design makes different parts of the mesh distinct IP networks. Instead of forwarding every relevant Ethernet frame through one extended segment, each Mesh Radio Router can make forwarding decisions based on destination IP networks and its current routing information. Intermediate nodes can therefore route traffic between subnets while the radio topology continues to change dynamically.
Those routing boundaries prevent ordinary Layer 2 broadcasts from automatically spreading into every attached network. They also make it easier to organize vehicles, sites, teams, sensor clusters, or local LANs into separate subnets with explicit paths between them. This does require more deliberate IP planning, but the routing architecture can provide cleaner operational boundaries as the topology expands.
Design factor | Layer 2 bridging | Layer 3 routing |
Main forwarding basis | Ethernet/MAC information | IP routes |
Endpoint view | Same logical LAN can span nodes | Separate IP networks can exist |
Broadcast scope | Can extend across the mesh | Usually contained within local subnet |
IP planning | Simple at first | More deliberate |
Best fit | Transparent Ethernet extension | Segmented, scalable multi-network mesh |
Calling Layer 2 “faster” because switching usually has less processing overhead misses the biggest constraint in a radio mesh: airtime. A wired Ethernet switch can forward large amounts of local traffic without competing for the same wireless channel, whereas mesh nodes frequently share spectrum with neighboring nodes and may retransmit traffic over several hops. Every unnecessary frame occupying that channel reduces the capacity available to application traffic.
Broadcast flooding becomes especially significant in multi-hop wireless networks because the same traffic may need to be retransmitted across several links. Bridging wired LANs into a wireless mesh can therefore increase broadcast traffic and raise contention on the shared medium. ARP requests, DHCP messages, device-discovery protocols, and multicast streams may have a much larger practical cost when an unnecessarily large Layer 2 domain is carried across RF.
A small bridged Mesh Radio Router deployment can still work efficiently. Problems usually emerge when administrators continue extending the same broadcast domain as more radios, endpoints, hops, and applications are added. At that point, architecture matters more than the theoretical difference between switching and routing overhead.
A realistic performance comparison should start with the number of radio hops, channel capacity, RF signal conditions, retransmissions, traffic load, QoS behavior, and end-to-end latency. Each additional hop requires another wireless transmission, and poor RF conditions may add retransmissions before Layer 2 or Layer 3 forwarding logic even becomes the dominant concern. Route changes can add another variable when the best path through the mesh is no longer available.

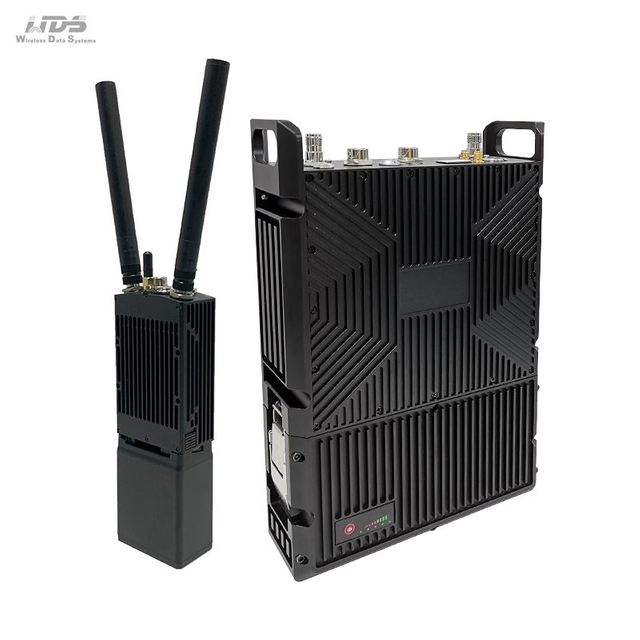

The WDS DDLmesh handheld and backpack series combines dynamic routing, multi-hop relay, QoS, and adaptive data rates up to 70 Mbps at 20 MHz bandwidth. Under a unidirectional 20 MHz operating condition, average single-hop delay can reach approximately 6 ms. These specifications illustrate the types of performance variables engineers should examine when evaluating a wireless mesh rather than focusing only on whether the network uses bridging or routing.
For a Mesh Radio Router deployment, a single-hop latency figure should therefore be treated as one input rather than the final answer. A three-hop video path under interference can behave very differently from a clean one-hop laboratory link. Testing should reproduce expected traffic mix, mobility, path length, and RF conditions as closely as possible.
One attraction of Layer 2 is that devices can remain inside the same IP subnet even when connected through different parts of the mesh. A centralized DHCP server can continue assigning addresses across the bridged domain, and fixed devices may retain configurations that were originally designed for an ordinary Ethernet LAN. That can simplify deployments involving legacy controllers, cameras, industrial interfaces, or applications that depend on local discovery.
The same convenience creates the architectural boundary that must be watched carefully. If every Mesh Radio Router transparently extends the same VLAN, then the associated broadcasts and Layer 2 behavior can also extend throughout that topology. Adding another radio can therefore enlarge not only RF coverage but also the logical failure and broadcast domain.
Layer 2 should consequently be extended because the application needs it, not merely because bridging is easy to configure. A fixed camera that must remain in an existing VLAN is a clear requirement. Extending a large VLAN across every field node “just in case” usually is not.
Layer 3 moves complexity from the shared broadcast domain into the addressing plan. Network designers need to determine which subnets belong behind each node or operational area, where default gateways live, which routes advertise attached LANs, which DHCP service handles each segment, and how traffic reaches external WAN or Internet gateways. The work is more visible up front, but the resulting boundaries are easier to reason about later.
A routed Mesh Radio Router can keep local broadcasts local while still forwarding application traffic to remote subnets. Troubleshooting also becomes more structured because engineers can identify the source network, next hop, route, and destination network instead of treating the entire wireless infrastructure as one stretched LAN. Larger systems can then add new routed segments without automatically enlarging every existing Layer 2 domain.
Roaming deserves separate attention. Moving a radio or client between routed areas does not inherently guarantee that the attached endpoint retains the same IP address. Session continuity depends on addressing, gateway placement, mobility mechanisms, and application behavior, so it should be tested rather than assumed from the word “mesh.”
Layer 2 makes sense when the requirement is genuinely equivalent to extending an Ethernet cable. Typical cases include equipment that must stay inside an established VLAN, legacy systems that are difficult to re-address, and applications whose discovery or control behavior depends on Layer 2 adjacency. A small number of predictable endpoints can also make the broadcast scope easy to understand and manage.
A useful design test is simple: if the two locations were connected by ordinary Ethernet, would the devices actually need to belong to the same LAN? If the answer is yes, bridging is solving a real application requirement. If the answer is no, making every Mesh Radio Router participate in one large Layer 2 domain may be adding traffic and operational coupling without providing a benefit.
Transparent bridging should therefore be treated as a specific networking tool rather than the default definition of mesh. The radio link can still be dynamic even when attached endpoints see a stable Ethernet environment. What matters is whether that transparency is valuable enough to justify extending the Layer 2 boundary.
Layer 3 becomes increasingly attractive as a deployment contains more independent LANs, mobile nodes, operational groups, gateways, or security boundaries. Each attached network can have its own address range while the mesh exchanges reachability information and selects paths between them. That architecture is easier to scale without exposing every endpoint to the same local broadcast environment.
This is also where the “router” part of Mesh Radio Router becomes more meaningful. The device is no longer only transporting frames between two Ethernet interfaces; it participates in moving IP traffic between networks while the underlying wireless links may appear, disappear, or change quality. Dynamic routing methods for mobile ad hoc networks are designed for exactly this type of environment, where paths cannot be assumed to remain fixed.
Separate routing domains can also make multi-gateway designs cleaner. A field network may need one route toward a command LAN and another toward an external backhaul, while traffic between local devices stays within its own subnet. Layer 3 provides an explicit mechanism for expressing those relationships.
Real deployments frequently need both behaviors. A small VLAN might be bridged between two locations for a specialized controller while most traffic is routed between separate node-side networks. That approach keeps transparent Ethernet where it has a clear purpose without forcing the entire mesh to inherit the same Layer 2 scope.

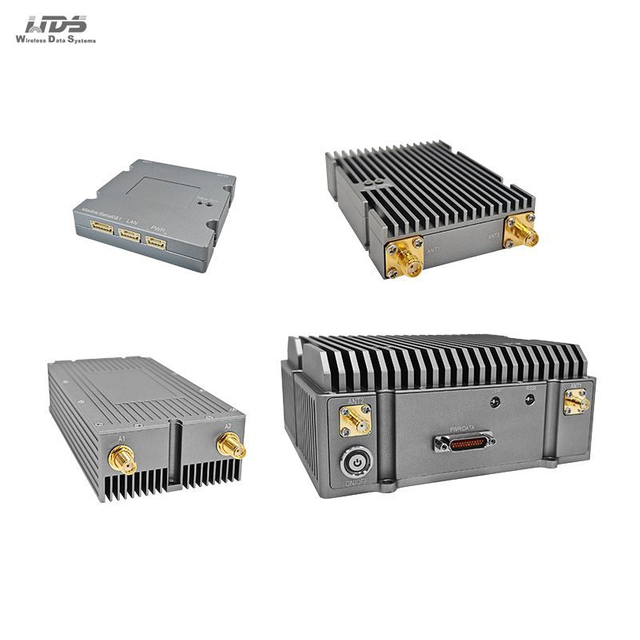

The WDS HX series functions as an industrial Mesh Radio Router, combining mesh networking with Ethernet WAN/LAN connectivity, RS232/485 serial interfaces, IPv6, firewall functions, and transparent data transmission. The DDLmesh handheld and backpack series adds VLAN support, decentralized P2P, P2MP and MP2MP networking, dynamic routing, multi-hop relay, QoS, and optional public-network routing. Together, these capabilities support deployments where transparent local connectivity and routed mesh networking may both be needed.
A Mesh Radio Router therefore does not have to be treated as exclusively a bridge or exclusively a router at the product level. The better approach is to decide which traffic requires transparency and which benefits from routing boundaries, then configure the network accordingly.
Layer 2 bridging is most useful when devices truly need the same Ethernet segment, while Layer 3 routing gives growing mesh networks cleaner subnet boundaries, better broadcast control, and more flexible path management. A hybrid design can make sense when only selected traffic requires Layer 2 transparency.
For deployments that need this balance, Shenzhen Sinosun Technology Co., Ltd. offers HX industrial routers and DDLmesh radio systems that can support different mesh networking requirements. Matching those capabilities to the actual traffic, mobility, and addressing plan helps build a Mesh Radio Router architecture that is easier to manage and scale.
A: Layer 2 forwards Ethernet frames using MAC addresses and can extend one logical LAN. Layer 3 routes IP packets between separate subnets, providing clearer network boundaries and broadcast control.
A: No. A bridge connects network segments at Layer 2 and forwards frames by MAC address. A router operates at Layer 3 and directs packets between different IP networks.
A: Layer 2 bridging works well when remote devices must remain on the same VLAN or subnet, retain existing addressing, or depend on Ethernet-level discovery and transparent connectivity.
A: Layer 3 routing is better suited to larger or mobile meshes with multiple subnets, changing paths, separate operational groups, or a need to contain broadcast traffic.
A: Yes. Some Mesh Radio Router deployments use a hybrid architecture, bridging selected VLANs or legacy traffic while routing other IP networks to improve segmentation and scalability.
A: Both can affect performance, but hop count, RF conditions, retransmissions, broadcast traffic, route convergence, and available airtime often matter more than forwarding-layer overhead alone.
