A UAV can respond to commands on a tiny data stream yet lose usable video when the radio link becomes overloaded. That contrast makes bandwidth planning more complicated than selecting a modem by its advertised peak rate. Control, telemetry, and HD video place very different demands on the same connection.
The key question is how much stable UAV data link bandwidth the aircraft can maintain during real flight. The sections below compare each traffic type, build a practical bandwidth budget, and show how to protect control and telemetry when video demand rises.
Pilot inputs, flight-mode changes, waypoint updates, return-to-home instructions, gimbal movement, and payload triggers are all small messages. A practical planning allowance is roughly 5–100 kbps, including acknowledgements and protocol overhead. Poor control performance usually comes from latency, jitter, packet loss, or queue congestion rather than a lack of raw capacity.
The uplink still needs protected capacity because most high-volume UAV traffic travels in the opposite direction. A link may have ample downlink room for video but leave control packets waiting behind other traffic. Command data should therefore receive reserved priority whenever several applications share one radio.
Bandwidth also cannot be evaluated without considering command timing. A delayed payload instruction may be inconvenient, while a delayed flight-mode or recovery command can affect the mission immediately. For that reason, control traffic should be judged by response consistency as well as average data consumption.
Telemetry includes position, attitude, altitude, battery condition, navigation state, mission progress, link quality, and payload health. Basic reporting may use 10–50 kbps, while a normal ground-control-station stream commonly fits within 50–300 kbps. High-rate diagnostics, detailed logs, several payloads, or multiple aircraft can push the total toward 1 Mbps or more.
Demand depends on both message size and frequency. Attitude data sent dozens of times per second consumes more capacity than a battery update sent once per second. MAVLink allows individual message intervals to be changed, helping teams reduce nonessential traffic without removing critical state data.
Reducing telemetry should be selective rather than indiscriminate. High-frequency data that supports navigation, control, or operator awareness should be preserved, while repetitive debug messages can be slowed or disabled during normal operation. This keeps the telemetry budget efficient without hiding important changes in aircraft condition.
Compressed video normally dominates the UAV data link bandwidth budget. Useful planning ranges are about 2–5 Mbps for 720p at 30 fps, 4–12 Mbps for 1080p at 30 fps, 8–20 Mbps for 1080p at 60 fps, and 15–40 Mbps for compressed 4K monitoring. Actual demand varies with codec, frame rate, motion, image detail, low-light noise, keyframe interval, and encoder quality settings.
H.264 is widely used for packetized video, while H.265 can reduce the bitrate needed for comparable quality when the equipment supports the additional processing load. Variable-bitrate streams may also spike when the aircraft turns toward foliage, water, buildings, or other detailed movement. For operational monitoring, a stable moderate-bitrate feed is usually more useful than a sharper stream that freezes near the edge of coverage.
Traffic type | Practical planning range | Main concern |
Control commands | 5–100 kbps | Latency and delivery |
Routine telemetry | 10–300 kbps | Reliability and update rate |
Payload data | 10–500 kbps | Sensor type and frequency |
720p30 video | 2–5 Mbps | Sustained throughput |
1080p30 video | 4–12 Mbps | Throughput and jitter |
1080p60 video | 8–20 Mbps | Capacity and link margin |
These values should be treated as planning ranges, not universal encoder settings. Two cameras producing the same resolution and frame rate can generate different loads because their scenes, compression profiles, and quality targets differ. Measuring the actual stream is more reliable than estimating it from resolution alone.
Use a simple formula: required stable throughput equals continuous traffic, expected bursts, and operating margin. Count every stream active during the same mission phase, including secondary or thermal video, payload commands, sensor status, dashboards, diagnostics, maps, and log transfers. Additional viewers or aircraft may multiply traffic unless distribution happens after the feed reaches the ground.
Calculate uplink and downlink separately because some radios quote an aggregate rate shared between both directions. Onboard recording does not consume radio bandwidth until files are transferred, but a later download can saturate the connection unless it is rate-limited. Operating margin should cover encoder peaks, overhead, retransmissions, changing modulation, and temporary interference.
Long-range flight, changing antenna orientation, congested spectrum, or relay paths require more reserve than short-range work in a clean field. The purpose of the margin is not to inflate the specification. It is to keep essential traffic stable during the weakest expected part of the mission.
Consider one 1080p H.264 stream at 6 Mbps, 0.1 Mbps of autopilot telemetry, 0.05 Mbps for payload status and commands, and 0.5–0.7 Mbps for a dashboard and intermittent diagnostics. The continuous and average load is about 6.7–6.9 Mbps. Adding 3–5 Mbps of reserve gives a sensible minimum target of approximately 10–12 Mbps of stable application throughput.
A radio advertised at 12 Mbps is not automatically sufficient. It must sustain that rate at the intended distance, altitude, aircraft attitude, channel conditions, and traffic mix. A second camera adds its own full stream bitrate, while multiple UAVs require an aggregate calculation for every shared network segment.
Mission setup | Suggested stable-throughput envelope |
Control and telemetry only | Below 1 Mbps |
720p video with telemetry | 5–10 Mbps |
One 1080p stream with mixed data | 10–20 Mbps |
Two HD streams or compressed 4K | 20–50+ Mbps |
Multiple UAVs or relay nodes | Calculate each path |
These ranges are useful for early selection, but they do not replace measurement. Record actual encoder output during realistic motion and lighting, then add the observed non-video traffic. This prevents both under-sizing the link and carrying unnecessary weight, power demand, or spectrum capacity.
Channel width, physical-layer rate, network throughput, and application throughput describe different things. The physical rate includes capacity consumed by coding and framing, while applications receive less because headers, encryption, error correction, acknowledgements, retransmissions, routing, and management traffic use airtime. A large datasheet number therefore cannot be treated as the bandwidth available to the camera and flight controller.
Adaptive radios also move to more robust modulation and coding as signal quality falls. That preserves connectivity but lowers throughput, while retransmissions consume additional airtime and buffering adds delay. Compare stable measured throughput at mission range rather than the maximum rate achieved under ideal laboratory conditions.
Throughput changes as the aircraft moves. Distance, line of sight, Fresnel-zone clearance, ground-antenna height, polarization, and interference all affect signal quality. Banking or yawing can place an antenna in a weak part of its pattern, while batteries, carbon fiber, metal structures, or payloads may block the path.
A setup that carries flawless video on the bench may become unstable when the UAV turns, descends, or reaches the farthest part of its route. Test the real mission profile, including turns and altitude changes, while measuring packet loss, jitter, latency, and sustained throughput. Plan around the weakest condition in which connectivity is still required.
Two cameras, several UAVs, separate unicast feeds for multiple viewers, or background maintenance traffic all divide available airtime. Relay and mesh paths can extend coverage, but forwarded packets consume radio resources on more than one hop. End-to-end capacity may therefore fall even when each local link appears healthy.
Identify where traffic converges and calculate the combined load at that point. Do not assume every node receives the full headline rate simultaneously. A simple topology diagram with direction and bitrate labels often reveals bottlenecks more clearly than one network-wide total.
A mixed-data link needs a clear service order: flight commands first, followed by essential telemetry and link-health messages, safety-related payload commands, live video, and finally logs or file transfers. This hierarchy prevents a visually demanding stream from delaying a tiny but critical packet. It also makes the system’s behavior predictable when available capacity falls.
Quality of Service, separate queues, selectable service priority, and rate limits are more valuable than unused peak capacity alone. Without them, a video burst or file download can fill the queue even when average traffic appears acceptable. Video should have a maximum bitrate, and background transfers should be paused or capped during flight.
As link margin declines, pause bulk transfers first, then lower video bitrate, reduce frame rate, reduce resolution, and disable a secondary stream if needed. Essential control and telemetry should remain available for as long as the RF link can support them. The sequence should be configured before deployment rather than improvised during a mission.
Constant bitrate creates a predictable load but may waste capacity in simple scenes or lower image quality in complex ones. Variable bitrate uses available bits efficiently but can produce bursts near the link limit. A constrained variable-bitrate profile with a firm maximum often provides a workable compromise.
Testing should reduce available throughput gradually. A sudden disconnect only proves that the link can fail; it does not show whether queues build, latency rises, or the encoder adapts first. Record video delay, command response, telemetry continuity, and packet loss at each step.
Once the traffic budget is known, compare stable throughput at range, uplink and downlink capacity, latency under load, QoS, interfaces, channel settings, antenna arrangement, airborne mass, power draw, and thermal needs. Interface compatibility matters because control data may arrive through serial or Ethernet while video enters through IP, HDMI, SDI, or CVBS. A fast modem that requires multiple converters can add wiring, delay, weight, and failure points.

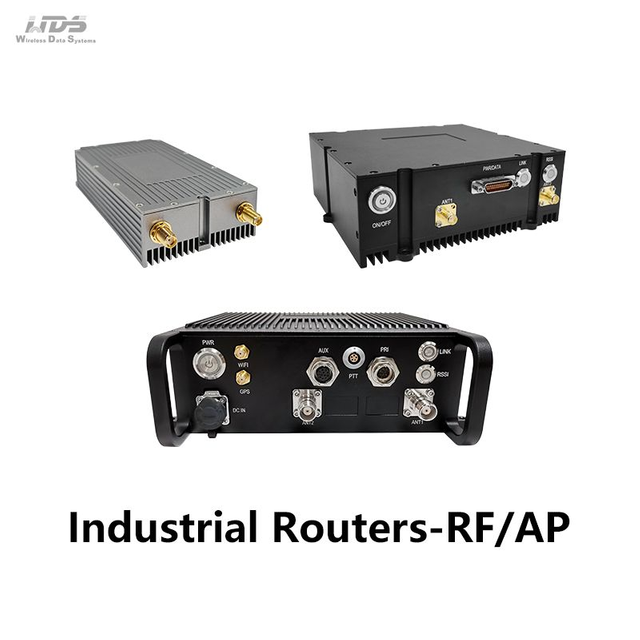

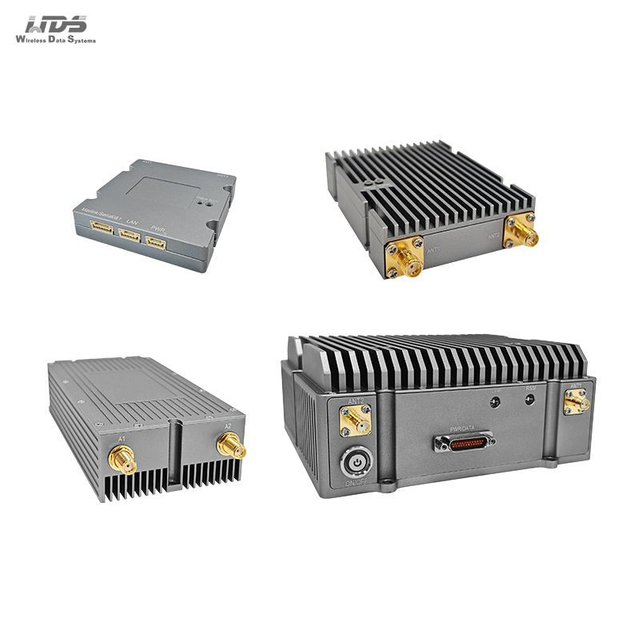

The WDS Mesh DDLmesh airborne series supports configurable UAV data link bandwidth for mixed video and data traffic. Available capabilities include 1–70 Mbps broadband operation at 20 MHz, 50–1000 kbps adaptive narrowband operation, QoS, selectable service priority, transparent Ethernet and serial transport, MAVLink support, configurable broadband channel widths from 1.25 to 20 MHz, and point-to-point, point-to-multipoint, and small-scale mesh modes. Simultaneous video and data interfaces also allow flight-control, payload, positioning, voice, and camera traffic to share one airborne communication system.
These capabilities are only the starting point. Validate the selected configuration with every intended stream active while the aircraft moves through representative distances and orientations. Log application throughput, direction-specific utilization, signal quality, latency, jitter, packet loss, and encoder behavior to confirm that control and telemetry remain usable before video quality collapses.
Control and telemetry usually require far less capacity than HD video, but they demand higher priority and more consistent delivery. A practical UAV data link bandwidth target should therefore reflect real application throughput, simultaneous traffic, operating range, interference, and enough margin for bitrate spikes or weaker link conditions.
Shenzhen Sinosun Technology Co., Ltd. offers DDLmesh airborne data links that combine video, telemetry, and bidirectional data transmission with traffic-priority and adaptable networking features. Matching those capabilities to a measured mission budget can simplify system integration while helping critical commands remain available as video quality adjusts.
A: A compressed 1080p stream typically needs 4–12 Mbps at 30 fps. Telemetry, control traffic, protocol overhead, and operating margin should be added separately.
A: Control commands may require about 5–100 kbps, while routine telemetry commonly uses 10–300 kbps. Reliability, latency, and message frequency matter more than raw capacity.
A: Yes, provided the link offers sufficient stable throughput and traffic prioritization. Control and essential telemetry should receive priority when video demand approaches the available capacity.
A: Protocol headers, encryption, error correction, acknowledgements, retransmissions, and weaker signal conditions reduce the bandwidth available to cameras, flight controllers, and payload applications.
A: Yes. Throughput often decreases with distance, interference, antenna misalignment, aircraft movement, and obstructions. Bandwidth planning should reflect the weakest expected part of the flight.
