A MANET Radio link may look viable on paper yet become unstable once nodes move, obstacles change, or signal conditions deteriorate. The key question is not simply whether the receiver can detect the signal, but whether enough power remains after path loss, hardware losses, and fading to support the required operating mode reliably.
A practical link budget makes that headroom visible. By accounting for transmit power, antenna gain, propagation loss, receiver sensitivity, and fade margin, engineers can estimate whether each hop has enough resilience for real MANET conditions—and identify which part of the link needs improvement before deployment.
A link budget is easiest to audit when it follows the signal in the same order that the hardware does. Begin with transmitter output power in dBm, add transmit antenna gain in dBi, and subtract any feedline, connector, or other transmitter-side losses. After propagation loss is deducted, add receive antenna gain and subtract receiver-side hardware losses. The result is predicted received power, normally expressed in dBm.
EIRP is a convenient intermediate check. It represents transmitter power after transmit-side losses and antenna gain have been applied, helping engineers separate what leaves the antenna from what happens across the propagation path. In a standard RF budget, received power can be expressed as transmitter power plus antenna gains minus transmitter, propagation, and receiver losses.
The units matter because they are not interchangeable. dBm expresses an absolute power level, while dBi expresses antenna gain relative to an isotropic radiator and dB expresses a gain or loss ratio. Once power has been converted to dBm, the link budget becomes an addition-and-subtraction exercise. A lost 2 dB in cable, antenna orientation, or another component removes the same 2 dB from the margin available at the receiver.
Parameter | Typical Unit | Budget Role | Typical Source |
Transmit power | dBm | Gain | Radio specification |
Antenna gain | dBi | Gain | Antenna data |
Cable/connector loss | dB | Loss | Cable data or measurement |
Propagation loss | dB | Loss | Calculation/model |
Received power | dBm | Result | Calculated or measured |
Receiver sensitivity | dBm | Threshold | Radio specification |
A positive received-power figure relative to sensitivity does not automatically mean the application will perform as intended. Receiver sensitivity is the minimum received power associated with successful operation under specified conditions, and link margin is commonly calculated as received power minus receiver sensitivity.
The important detail is which sensitivity value enters the calculation. A MANET Radio may maintain connectivity using a robust low-rate modulation while no longer supporting the bandwidth or throughput required by video, telemetry, or other traffic. The relevant threshold is therefore the receiver requirement for the channel bandwidth and operating mode that the deployment actually needs, not simply the most favorable number available on a specification sheet.
Free-space path loss provides the cleanest starting point for propagation:
FSPL (dB) = 32.44 + 20 log₁₀(distance in km) + 20 log₁₀(frequency in MHz)
The relationship immediately reveals two useful design facts. Increasing distance increases loss, and increasing frequency also increases free-space loss when distance stays unchanged. The constant changes when different distance or frequency units are used, so units must remain consistent throughout the calculation.
FSPL is valuable for feasibility checks because it isolates geometric spreading from the messier parts of a field deployment. It should not, however, be treated as a promise of actual received signal. The free-space model assumes an unobstructed propagation environment; it does not account for terrain, vehicle bodies, vegetation, polarization errors, interference, or changing antenna orientation.
Fresnel clearance is another reason visible line of sight can be misleading. An operator may be able to see the other node while terrain, structures, or vegetation still intrude into the RF propagation region around the direct path. The result can be diffraction, reflection, and additional attenuation that never appears in the basic FSPL figure.
Some losses are relatively stable. Feedline attenuation, connectors, adapters, and fixed installation losses can usually be estimated once and entered directly into the spreadsheet. Others change as the network moves. A vehicle turning through an intersection may alter antenna orientation, a UAV banking can change its radiation pattern relative to another node, and a moving obstruction can suddenly shadow a previously clean path.
Multipath deserves particular attention because reflected, diffracted, and scattered versions of the same transmission can combine constructively or destructively at the receiver. Multipath fading can produce substantial signal-strength fluctuations, while longer-term path loss and shadowing change link quality over larger distances and timescales. Interference and the local noise floor add another dimension: a strong RSSI does not necessarily mean a strong usable link if SNR has deteriorated.
For most MANET planning, these effects are better represented as realistic propagation allowances than ignored because they are difficult to predict exactly. Specialized losses such as rain or atmospheric absorption can be added when the frequency, distance, and operating environment make them relevant. Otherwise, the budget should concentrate on the losses that are most likely to consume meaningful margin in the intended deployment.
Link margin tells you how far the predicted received signal sits above the receiver threshold. If a calculation predicts −80 dBm at the receiver and the required operating level is −100 dBm, the nominal margin is 20 dB. That number answers whether the planned link closes on paper, but it does not tell you how much degradation the system will experience during movement.
Fade margin is the portion of signal headroom available to absorb temporary deterioration before the required operating threshold is crossed. In practical terms:
Fade Margin = Predicted Received Level − Required Operating Level
There is no single fade-margin target that fits every MANET Radio deployment. A stationary link with unobstructed geometry and modest availability requirements does not face the same variability as radios attached to moving vehicles, aircraft, robots, or personnel. Terrain, operating frequency, interference, antenna patterns, obstruction probability, and the modulation that must be maintained all influence how much headroom is useful.
The design objective is therefore not “any positive margin.” A 2 dB surplus might look successful in a spreadsheet yet disappear after a small orientation change or a brief shadowing event. The better question is whether the remaining margin reflects the severity and frequency of variations the network is expected to encounter.
A static budget produces one predicted received level because its inputs are fixed. A moving MANET produces a range of possible levels because several of those inputs effectively change with time. Distance may increase, antenna alignment may become less favorable, Fresnel clearance can deteriorate, and obstacles can introduce shadowing. Multipath can then create smaller-scale fluctuations on top of those changes.
Average SNR can serve as a longer-term link-quality measure when choosing a useful next-hop connection, while shorter-term channel changes occur on a faster timescale. This is why a MANET Radio link budget should not be viewed only as a range calculation: the available margin also influences how consistently a particular neighbor remains a useful forwarding option.
A link designed very close to its threshold may repeatedly shift to a more robust mode, suffer retransmissions, or disappear from the available topology. More reserved headroom gives the radio room to tolerate those changes before network behavior must compensate.
Receiver performance is tied to the operating configuration. Narrower channel bandwidth can reduce integrated receiver noise and may allow better sensitivity, while higher-order modulation carries more data but generally demands better signal quality. Adaptive modulation uses that trade-off dynamically, moving toward more robust schemes when channel quality worsens and toward higher-capacity schemes when conditions permit.
A MIMO-enabled MANET Radio can improve link behavior through techniques such as receive diversity, space-time coding, beamforming, or spatial multiplexing. Those benefits should not be converted into an assumed fixed “MIMO gain” and added casually to the budget. Diversity improvement, beamforming gain, and multiplexing capacity are different effects; only a documented or measured link-level gain for the actual antenna geometry and operating mode should be treated as a numeric budget input.
Consider a simplified 10 km MANET hop operating at 2.4 GHz. Assume one 2 W transmit branch for the example, equal 8 dBi antennas at both ends, 1 dB of hardware loss on each side, and an additional 8 dB allowance for non-ideal propagation. A 2 W RF output corresponds to approximately 33 dBm. The example is intentionally a single-link calculation rather than an attempt to combine two MIMO transmit chains into one arbitrary power figure.
Using the FSPL equation:
FSPL = 32.44 + 20 log₁₀(10) + 20 log₁₀(2400) ≈ 120.0 dB
The received level then becomes approximately:
33 + 8 − 1 − 120 − 8 + 8 − 1 = −81 dBm
If the selected operating mode uses a −103 dBm receiver threshold, nominal remaining margin is about 22 dB. The result does not predict exact field performance; it shows how every engineering assumption is exposed and how quickly the answer changes when distance, antenna gain, loss allowance, or receiver requirement changes.
Link-budget item | Value | Running Effect |
Tx power | +33 dBm | +33 |
Tx antenna gain | +8 dBi | +41 |
Tx hardware loss | −1 dB | +40 |
FSPL at 2.4 GHz / 10 km | −120 dB | −80 |
Additional propagation allowance | −8 dB | −88 |
Rx antenna gain | +8 dBi | −80 |
Rx hardware loss | −1 dB | −81 dBm received |
Required receiver level | −103 dBm | ≈22 dB margin |

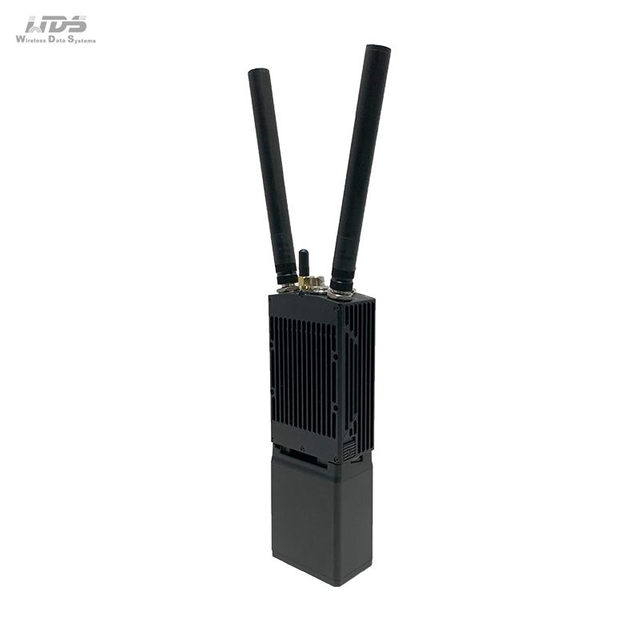

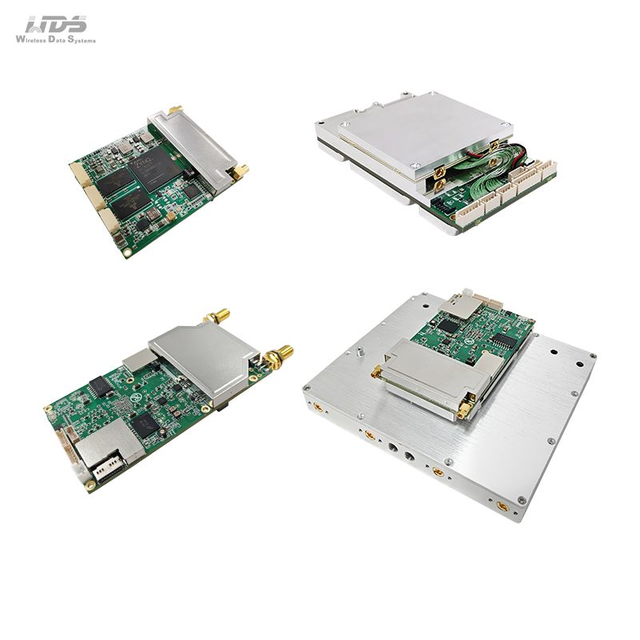

The WDS lightweight airborne MANET Radio supports a receive sensitivity of −103 dBm at 5 MHz bandwidth. Available configurations include channel bandwidths of 1.25, 2.5, 5, 10, and 20 MHz, with 40 or 80 MHz options on selected variants. Adaptive TD-COFDM modulation ranges from BPSK and QPSK through 16QAM, 64QAM, 256QAM, and 1024QAM. Transmission-power control and multiple RF output configurations provide additional flexibility when matching the radio setup to the link requirement.
For MIMO operation, the series supports space-time coding, receive diversity, transmit/receive beamforming, and spatial multiplexing. Frequency configurations span multiple VHF/UHF, L-band, S-band, and C-band ranges, including 2.3–2.5 GHz options that make 2.4 GHz a reasonable illustrative frequency for the example above.
These values are useful inputs, but maximum range should never replace the link budget itself. Range depends on the selected frequency, actual RF power configuration, antenna gain and pattern, bandwidth, receiver threshold, path environment, interference, and the fade margin reserved for operation. Even a radio designed for long-distance links cannot make those variables disappear.
The same caution applies to sensitivity. The −103 dBm value used here is associated with 5 MHz bandwidth; it should not automatically be assigned to every channel configuration. When engineering a real MANET Radio link, use the receiver requirement corresponding to the configuration being deployed and verify mode-specific values before finalizing the budget.
A reliable MANET Radio link budget depends on more than achieving a signal above receiver sensitivity. Engineers need to account for antenna gain, path and hardware losses, operating bandwidth, modulation requirements, and enough fade margin to handle movement, obstruction, multipath, and changing interference.

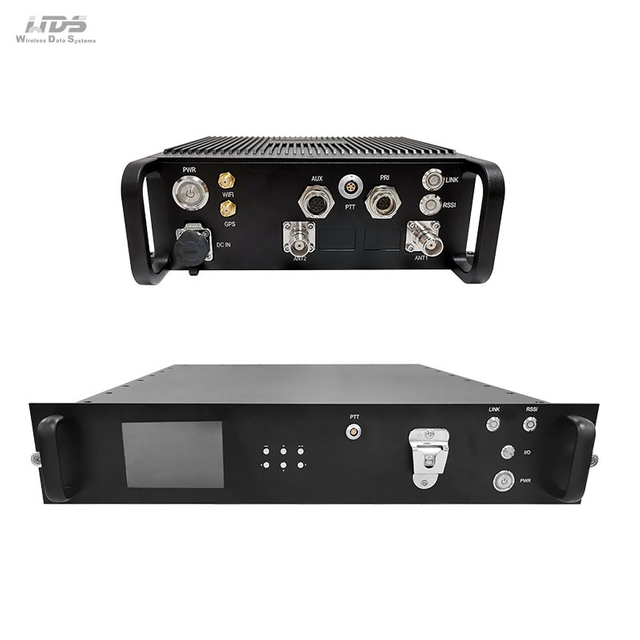

Shenzhen Sinosun Technology Co., Ltd. offers MIMOmesh radio solutions that can support this planning approach with configurable RF parameters and mesh networking capabilities. Matching those settings to realistic link-budget calculations helps teams build links with more dependable coverage, usable throughput, and resilience across changing deployment conditions.
A: A MANET Radio link budget calculates expected received signal power by combining transmit power, antenna gains, propagation losses, hardware losses, and receiver sensitivity for each wireless hop.
A: Add transmitter power and antenna gains, then subtract cable, connector, propagation, and other relevant losses. The result is the predicted signal level at the receiver.
A: Fade margin is the signal headroom between the predicted received level and the required receiver threshold. It helps accommodate fading, obstruction, mobility, and other temporary signal degradation.
A: Higher antenna gain can improve received signal strength and link margin by concentrating RF energy, although antenna directionality, orientation, and the required coverage pattern must also be considered.
A: Receiver sensitivity defines the minimum signal level needed for a specified operating mode. Using the correct sensitivity value helps determine whether the link can sustain the required performance.
A: Mobility changes distance, antenna orientation, line-of-sight conditions, shadowing, and multipath. These variations can reduce available margin even when the original static calculation predicts a viable connection.
