| SDR Platform, Waveform | 9363+7Z020, Mobile Network MANET |
| MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming |
Frequency (70M-6GHz customizable |
UHF(360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz)/ L Band(1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz)/ S Band(2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz)/ C Band( 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz) |
Channel Bandwidth | 250k/500k/1MHz(Dual Antenna), 400kHz(Single Antenna) |
| Sensitivity | -117dBm@250KHz |
Modulation Mode |
BPSK/QPSK/16QAM (Adaptive), SCFDE(Single Antenna)/OFDM(Dual Antenna) |
| Airborne Data Rate (Single Antenna/ Dual Antenna) | 50-250kbps@250kHz(Dual Antenna) 125-500kbps@500kHz(Dual Antenna) 250-1000kbps@1MHz(Dual Antenna) 130kbps@400kHz (Single Antenna |
Multi-access Mode | CSMA/TDMA |
RF Channel | 1Tx+1Rx/2Tx+2Rx, TDD/FDD |
Transmit Power |
0.25/0.5/1/2/4(5)/10/20/40(50)Watts(Dual Antenna) 2/10Watts(Single Antenna) |
Single Hop Communication Distance
| 30-100 km (LOS), 1-30 km (Urban Area) |
Work Mode
|
Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Dynamic routing/Multi-hop relay, Star/Line/Network/Hybrid |
Connectors |
Serial port (point-to-point bidirectional, point-to-multiple unidirectional)/ Network Port (unicast, multicast, broadcast)/Voice, Location (broadcast) |
| Single Hop Delay | Average 7mS (1MHz BW) |
Encryption |
DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
Anti-Jamming Mode |
Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode optional |
Local/ Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, realtime display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
| Others | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second |
| Network Size/ Multi-hop Capability | Single Network More Than 256 Nodes/15 Hops |
| Operation Temperature | -40℃ ~+80℃ |
| Voltage/ Power Consumption |
3.5-5VDC/Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts x2 Dual Module/Airborne, NB-nano 9-32VDC/Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts x2 Dual Module/Airborne, NB-mini 9-39VDC/Operation 0.5-1A/Standby 0.4-0.6A@12V, 1Watts x2 Dual Module/Airborne 12-36VDC/Operation 1-2A/Standby 0.5-0.7A@12V, 2/4(5)Watts x2 Dual Module/Airborne/Handheld/ Vehicle&Shipboard 18-32VDC/Operation 3-6A/Standby 0.7-0.9A@16.8V, 10Watts x2 Dual Airborne/Backpack/Vehicle&Shipboard 18-32VDC/Operation 6-7A/Standby 0.7-0.9A@20V, 20/40(50)Watts x2 Dual Airborne/Backpack/ Vehicle&Shipboard 9-20VDC/Operation 1-2A/Standby 0.5-1A@12V, 2Watts Single Handheld/Enclosed/Module 12-20VDC/Operation 2-4A/Standby 0.7-1A@12V, 10Watts Single Vehicle |
Power Selection | Power Supply by Twist-Lock Battery or Main Cable |

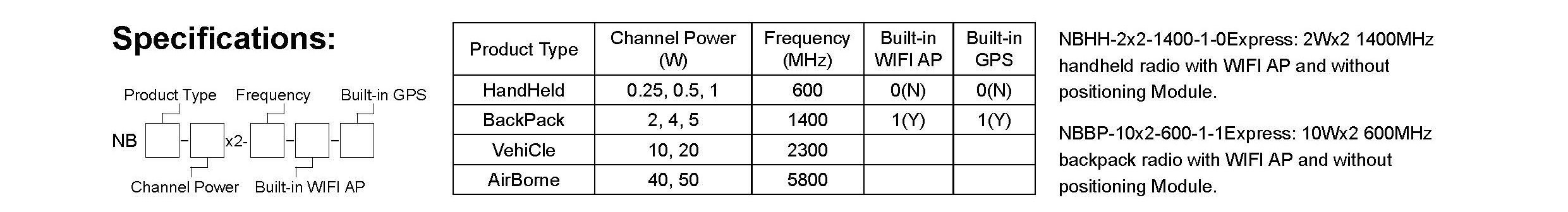

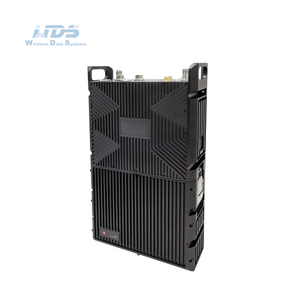

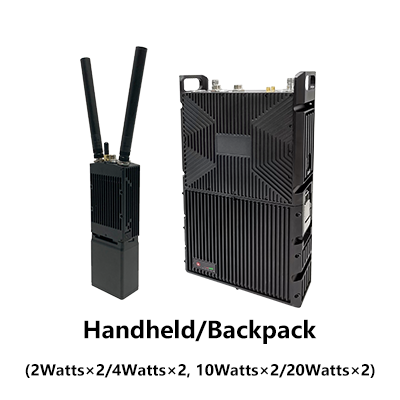

| Batteries | 8-10/6-8 hours for 114/77.7Wh (Handheld Radio) 10-12/6-8 hours for 427/213Wh (Backpack Radio) polymer lithium batter |
Dimensions/Weight |

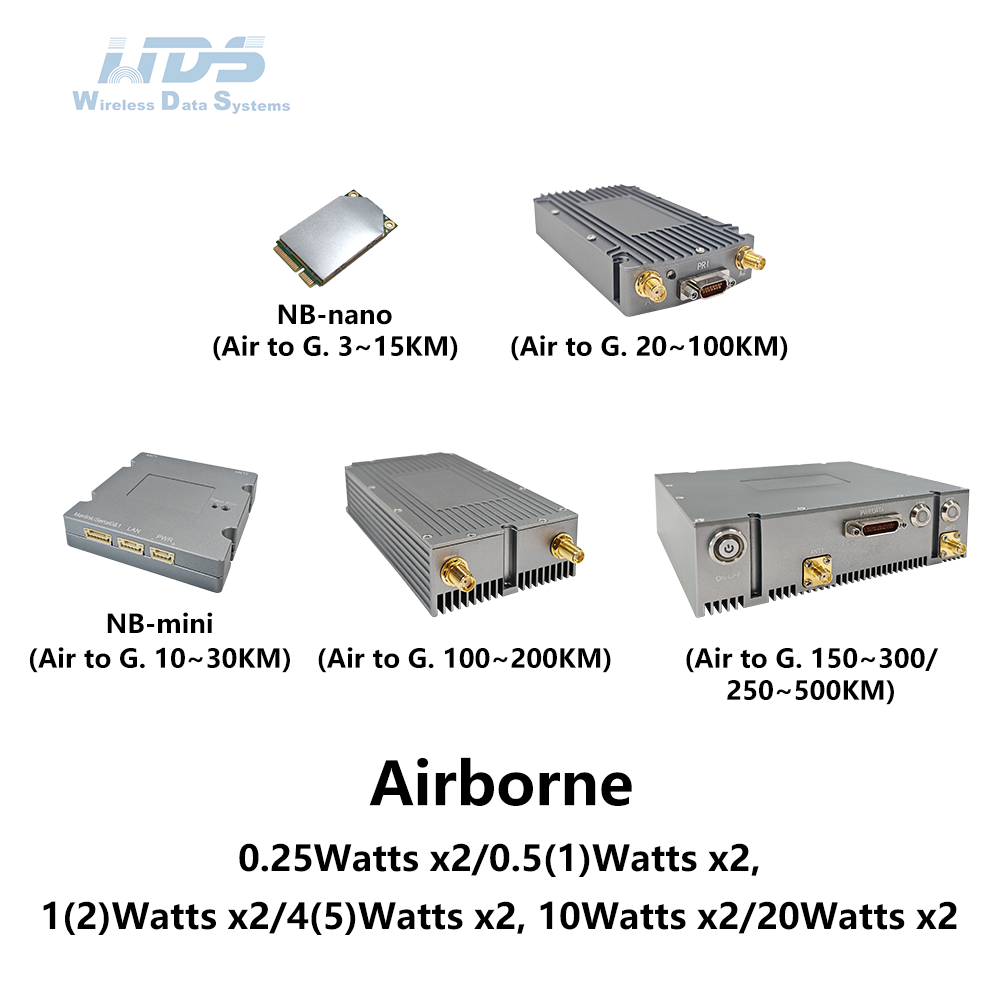

5.1x3.0x0.7cm/14g, 0.25Wx2 Dual Antenna Airborne, NB-nano 6.0x4.8x1.1cm/46g, 0.5(1)Wx2 Dual Antenna Airborne, NB-mini 6.0x5.8x1.3cm/60g, 0.5(1)Wx2 Dual Antenna Airborne, NB-mini 11.7x6.2x2.0cm/160g, 1(2)Wx2 Dual Antenna Airborne-Iron Gray 13.8x6.2x2.7cm/225, 4(5)Wx2 Dual Antenna Airborne-Iron Gray 12.8x13.4x3.8cm/598g, 10/20Watts x2 Dual Antenna Airborne-Iron Gray 14.2x14.0x5.0cm/962g, 10/20Watts x2 Dual Antenna Airborne-Black 11.7x6.2x3.2cm/279g, 4(5)Wx2 Dual Antenna Vehicle&Shipboard 19.1x18.6x6.3cm/2.16kg, 10/20Wx2 Dual Antenna Vehicle&Shipboard 25.8x21.3x6.5cm/3.95kg, 40(50)Wx2 Dual Antenna Vehicle&Shipboard 19.0x6.8x3.8cm/769g, with 11.1V/77.7Wh battery Dual Antenna Handheld 22.9x18.9x6.2cm/3.86kg, with 22.2V/213Wh battery Dual Antenna Backpack 8.7x4.3x2.0cm/75g, 2Watts Single Antenna Module 9.9x2.8x6.1cm/172.5g, 2Watts Single Antenna Enclosed 23.5x6.8x3.9cm/786g, 2Watts Single Antenna Handheld 13.9x12.3x4.4cm/750g, 10Watts Single Antenna Vehicle |
| Installation/Color | 4 Mounting Holes/Black, Iron Gray、Army Green Optional |
| Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
Push to talk/ Auxiliary interfac | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is dow |
| RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
| Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
| Size/Weight | 5.1x3.0x0.6cm/11g, 0.25Watts x2 Module, NB-nano 5.8x4.8x1.0cm/27g, 0.5Watts x2 Module, NB-mini 8.7x5.4x1.0cm/40g, 1Watts x2 Module 8.7x5.4x1.0cm/43g, 2Watts x2/4Watts x2 Module 11.5x5.4x1.3cm/56g, 5Watts x2 Module 12.7x11.0x3.4cm/524g, 10(20)Watts x2 Modul |
