General |

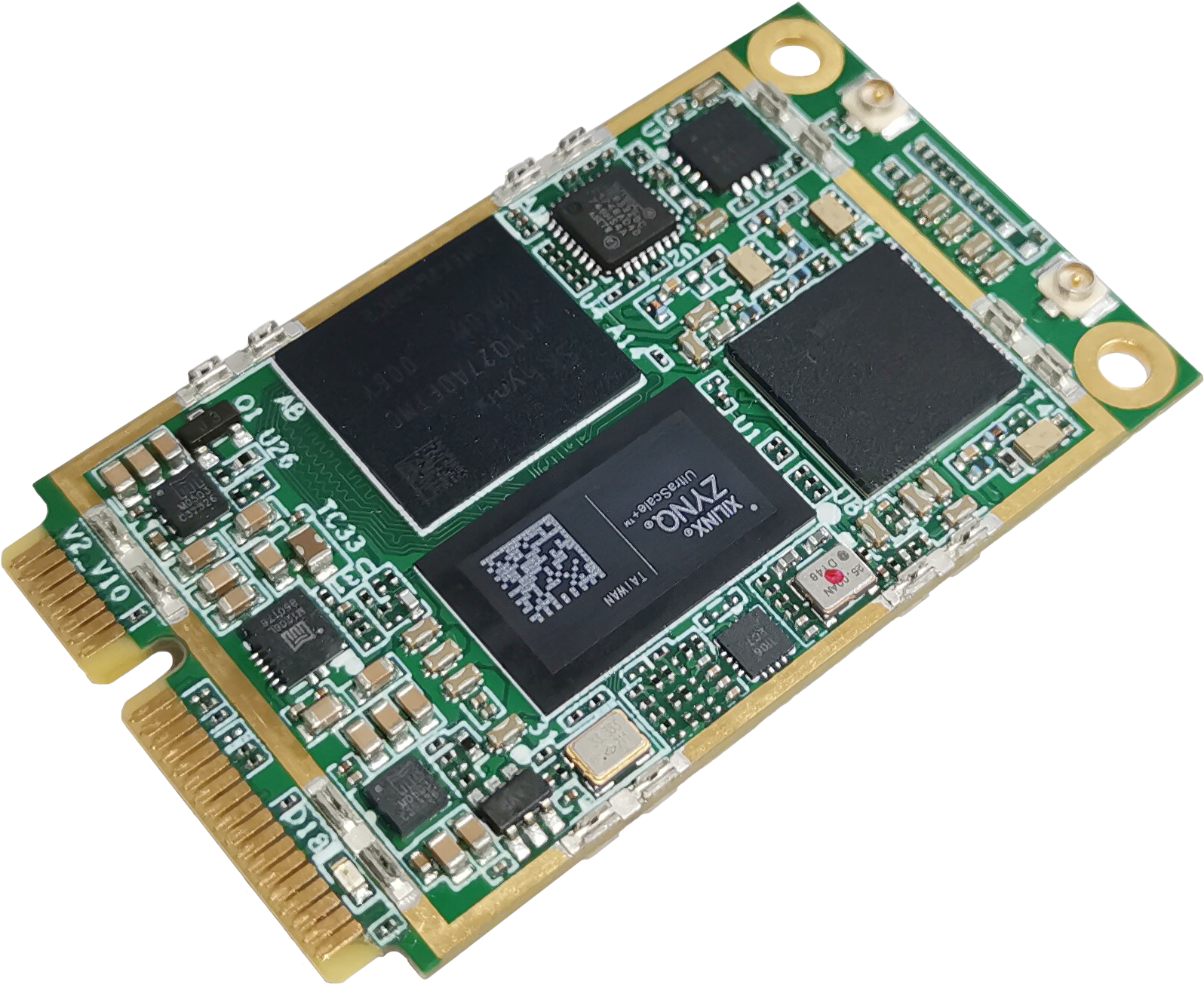

SDR Platform, Waveform | 9363 or 9361+7Z020, Mobile Network MANET |
MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming |
Receive Sensitivity | -103dBm@5MHz BW |
Channel Bandwidth | 1.25/2.5/5/10/20MHz setting; Supports transmission and reception with different channel bandwidths, achieving mixed broadband and narrowband |
Data Rate | 1-70Mbps(20MHz BW) Adaptive, QoS |
Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) |
RF Output Power (Support TPC, transmission power control, 1dBm adjustable) | 0.25Watts x2 0.5(1)Watts x2 1Watts x2 2Watts x2 4(5)Watts x2 10(20)Watts x2 |
Single Hop Communication Distance |
Air to G. 3-15KM, 0.25Watts x2; 10-30KM, 0.5Watts x2; 20~50KM, 1Watts x2/2Watts x2; 50~150KM, 4Watts x2; 150~300KM, 10Watts x2; 250~500KM, 20Watts x2 |
Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
Single Hop Delay | Average 10mS(20MHz BW) |
Encryption | DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands(300M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band) |
BAND | Frequency range (MHz) | BAND | Frequency range (GHz) |
UHF |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470* | S Band | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/ 3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/ 2.1-2.7/2.7-3.6* |
L Band |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.2* | C Band | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) |
|
MIIT | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
|
Environmental |
Operation Temperature | -40℃ ~+80℃ |
Protection Level | IP66, IP67/IP68 Customized |
Mechanical |
Size/Weight |

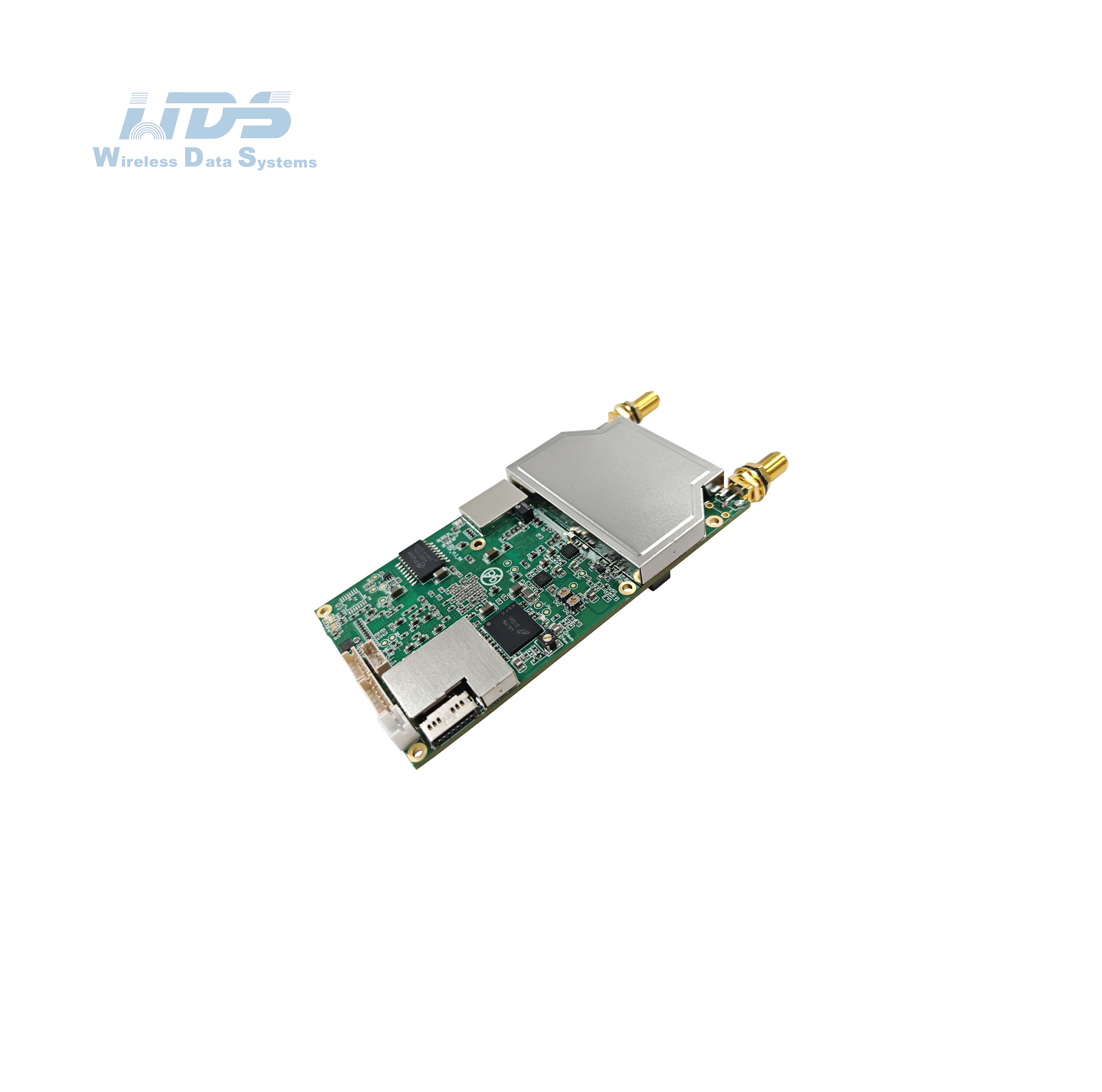

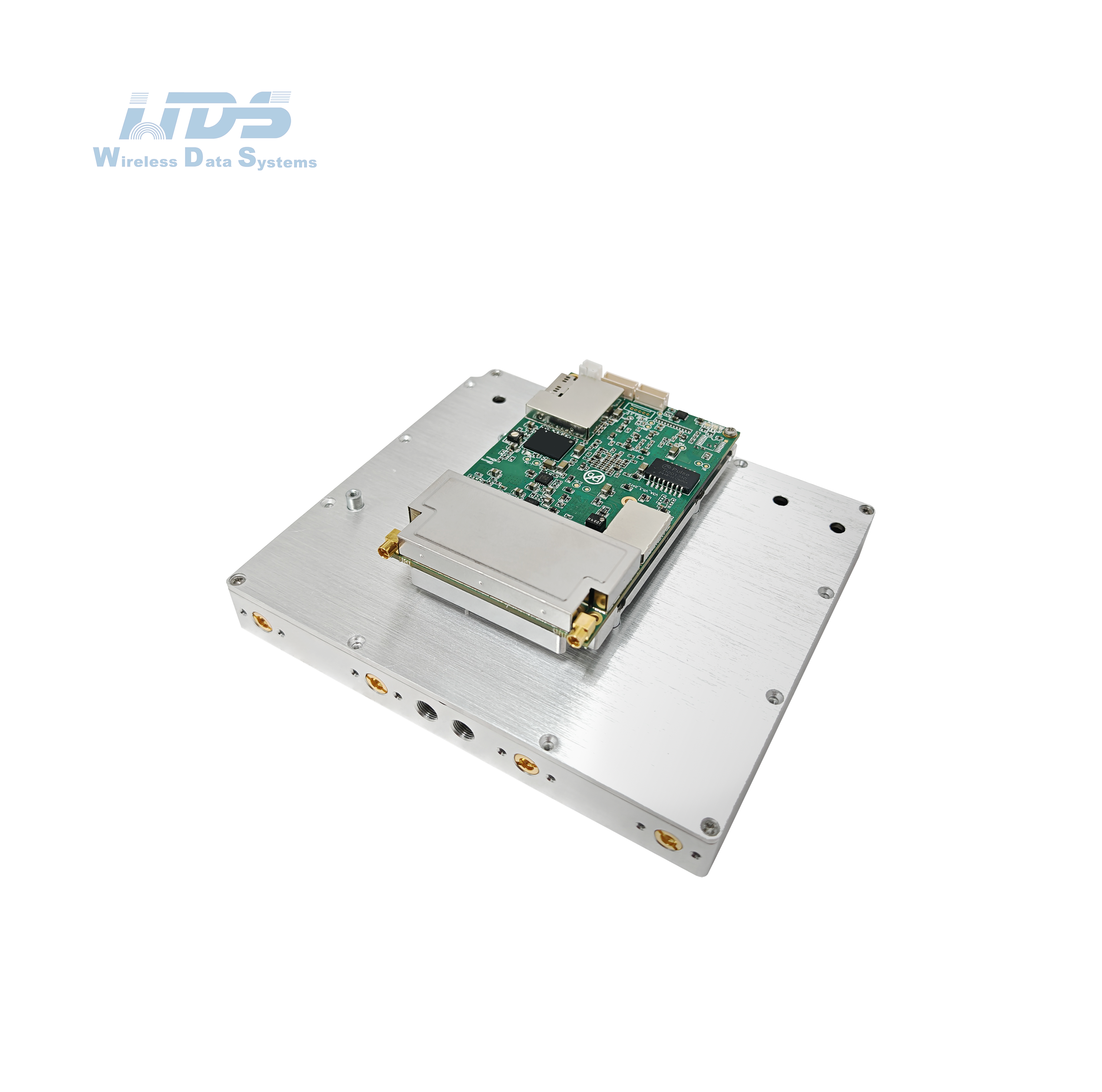

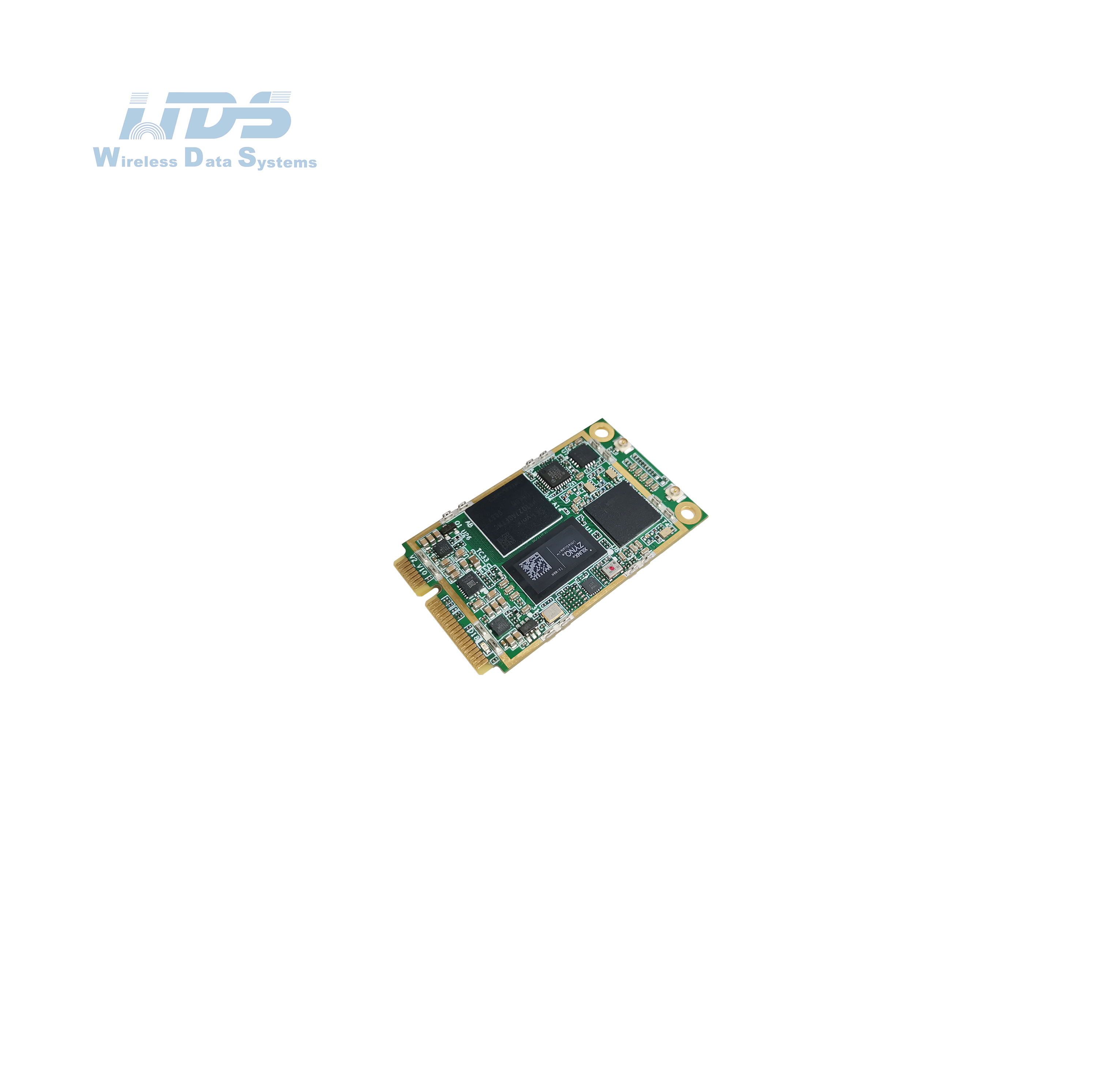

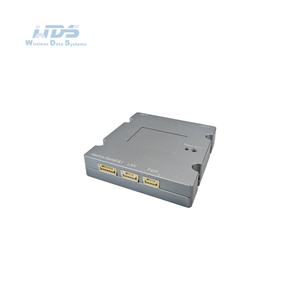

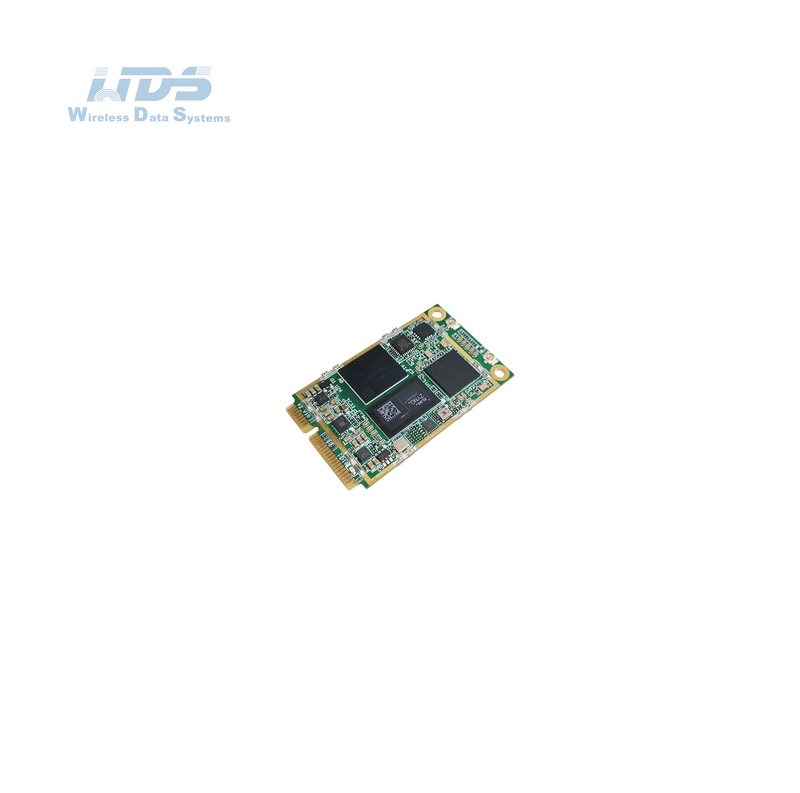

5.1x3.0x0.6cm/11g, 0.25Watts x2 Module, SM-nano 5.8x4.8x1.0cm/27g, 0.5Watts x2 Module, SM-mini 8.7x5.4x1.0cm/40g, 1Watts x2 Module 8.7x5.4x1.0cm/43g, 2Watts x2/4Watts x2 Module 11.5x5.4x1.3cm/56g, 5Watts x2 Module 12.7x11.0x3.4cm/524g, 10(20)Watts x2 Module |
Installation/Color | 4 Mounting Holes/Black, Iron Gray、Army Green Optional |
Power |
Supply Voltage |
3.5-5VDC, 0.25Watts×2, SM-nano 9-32VDC, 0.5Watts×2, SM-mini 9-39VDC, 1Watts×2 12-36VDC, 2Watts×2/4(5)Watts×2 18-32VDC, 10(20)Watts×2 |
Power Consumption |
Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2, SM-nano Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2, SM-mini Operation 0.5-1A/Standby 0.4-0.6A@12V, 1Watts×2 Operation 1-2A/Standby 0.5-0.7A@12V, 2Watts×2/4(5)Watts×2 Operation 3-6A/Standby 0.7-0.9A@16.8V, 10Wx |
Power Selection | Power Supply by Twist-Lock Battery or Main Cable |
Interface |
Basic interface |

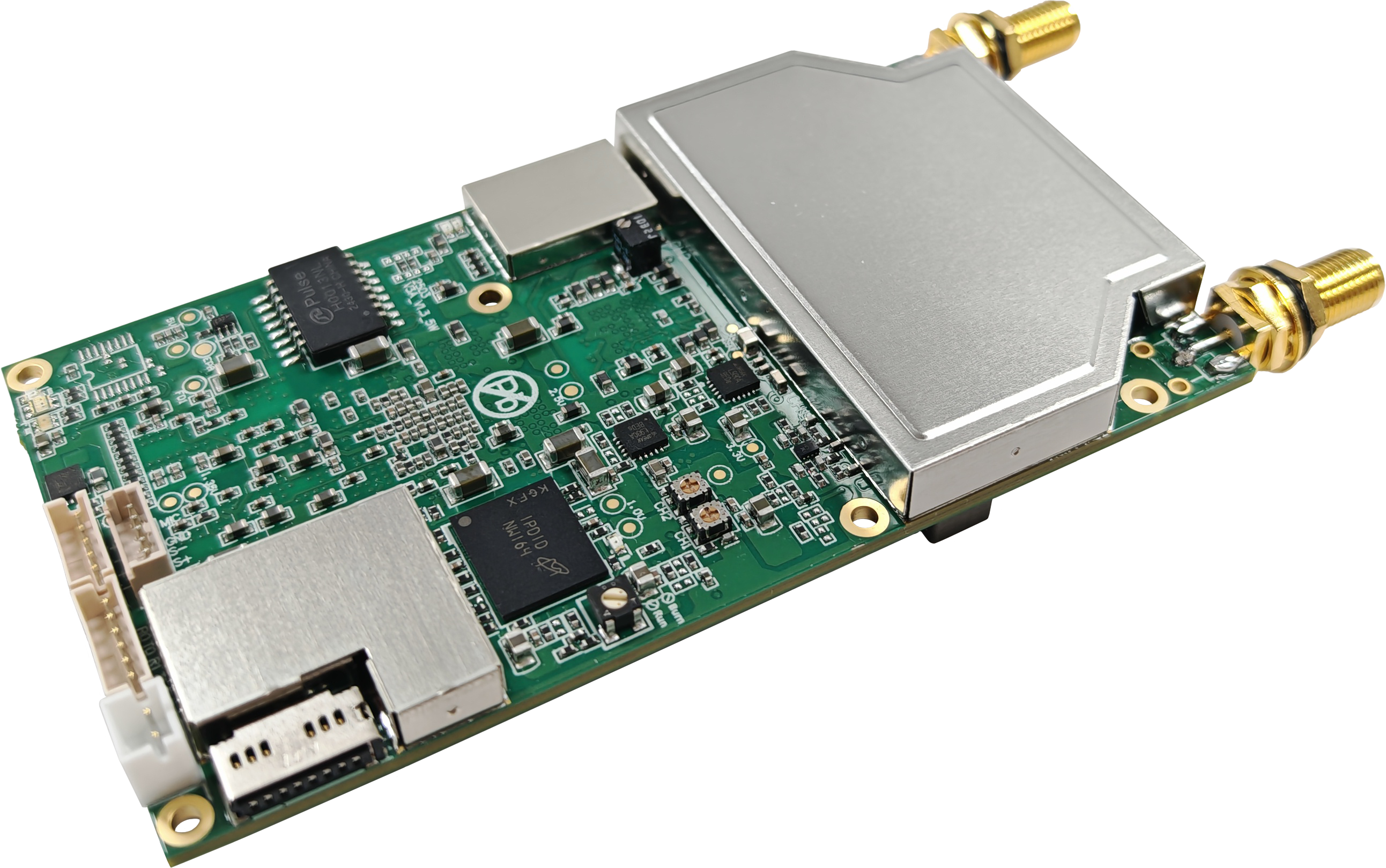

RF: MMCX×2 (2×TRx), J1 (DC input), J4 (Ethernet business, data channel), J7 (serial port 0, serial port 1 RS-232 level), external power amplifier control line |
Push to talk/ Auxiliary interface | MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG |
Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down |
RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
Management Interface/ Control Interface | Web-based network management/GUI, API secondary development interface/SNMP |
