General |
SDR Platform, Waveform | 9363 or 9361+7Z020, Mobile Network MANET |
MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming |
Receive Sensitivity | -103dBm@5MHz BW |
Channel Bandwidth | 1.25/2.5/5/10/20MHz setting; Supports transmission and reception with different channel bandwidths, achieving mixed broadband and narrowband |
Data Rate | 1-70Mbps(20MHz BW) Adaptive, QoS |
Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) |
RF Output Power (Support TPC, transmission power control, 1dBm adjustable) |
0.25Watts x2 0.5(1)Watts x2 1Watts x2 2Watts x2 4(5)Watts x2 10Watts x2 20Watts x2 |
Single Hop Communication Distance |

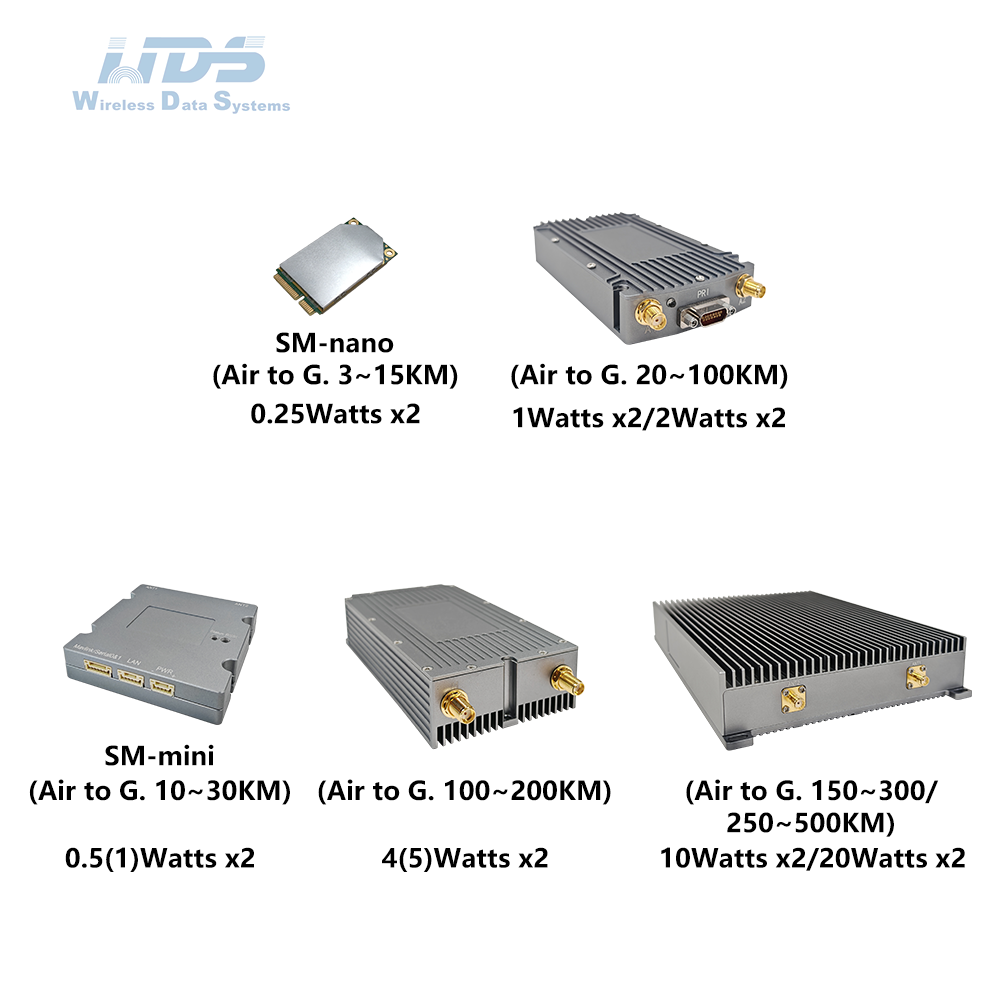

Air to G. 3-15KM, 0.25Watts x2; 10-30KM, 0.5Watts x2; 20~50KM, 1Watts x2/2Watts x2; 50~150KM, 4Watts x2; 150~300KM, 10Watts x2; 250~500KM, 20Watts x2 |
Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
Single Hop Delay | Average 10mS (20MHz BW) |
Encryption | DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |

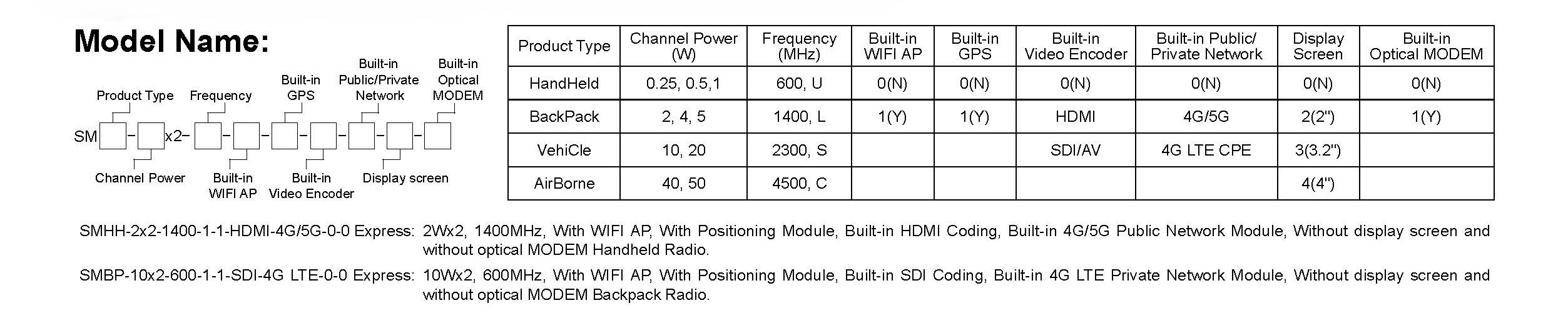

Bands(70M-6GHz customizable. Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change*) |
BAND | Frequency range | BAND
| Frequency range (GHz) |
VHF/UHF (MHz) |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470* | S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/ 3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/ 2.1-2.7/2.7-3.6* |
L Band (GHz) |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.5* | C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) |
|
MIIT (MHz) | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
|
Environmental |
Operation Temperature | -40℃ ~+80℃ |
Protection Level | IP66,IP67/IP68 Customized |
Mechanical |
Size/Weight |

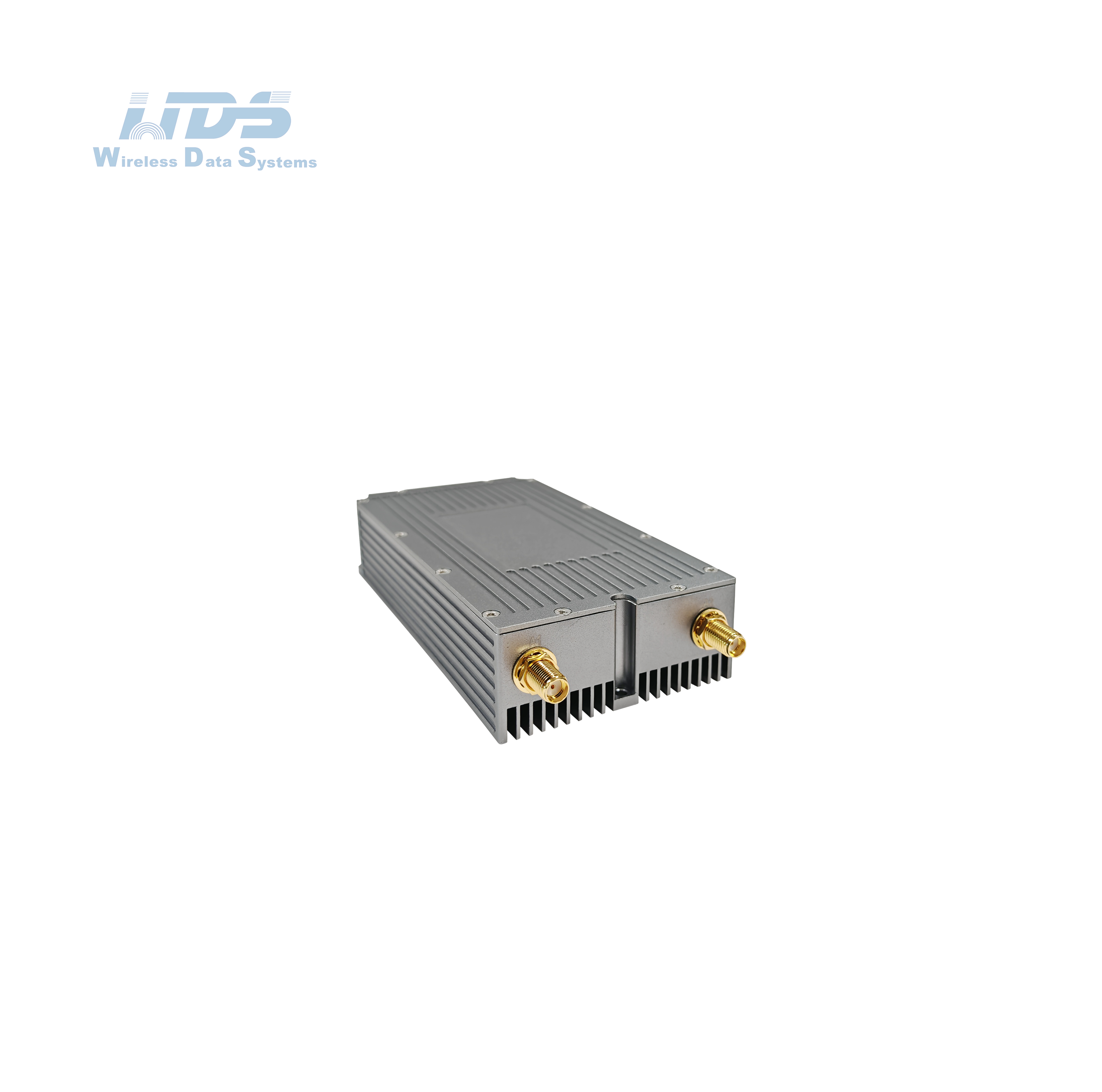

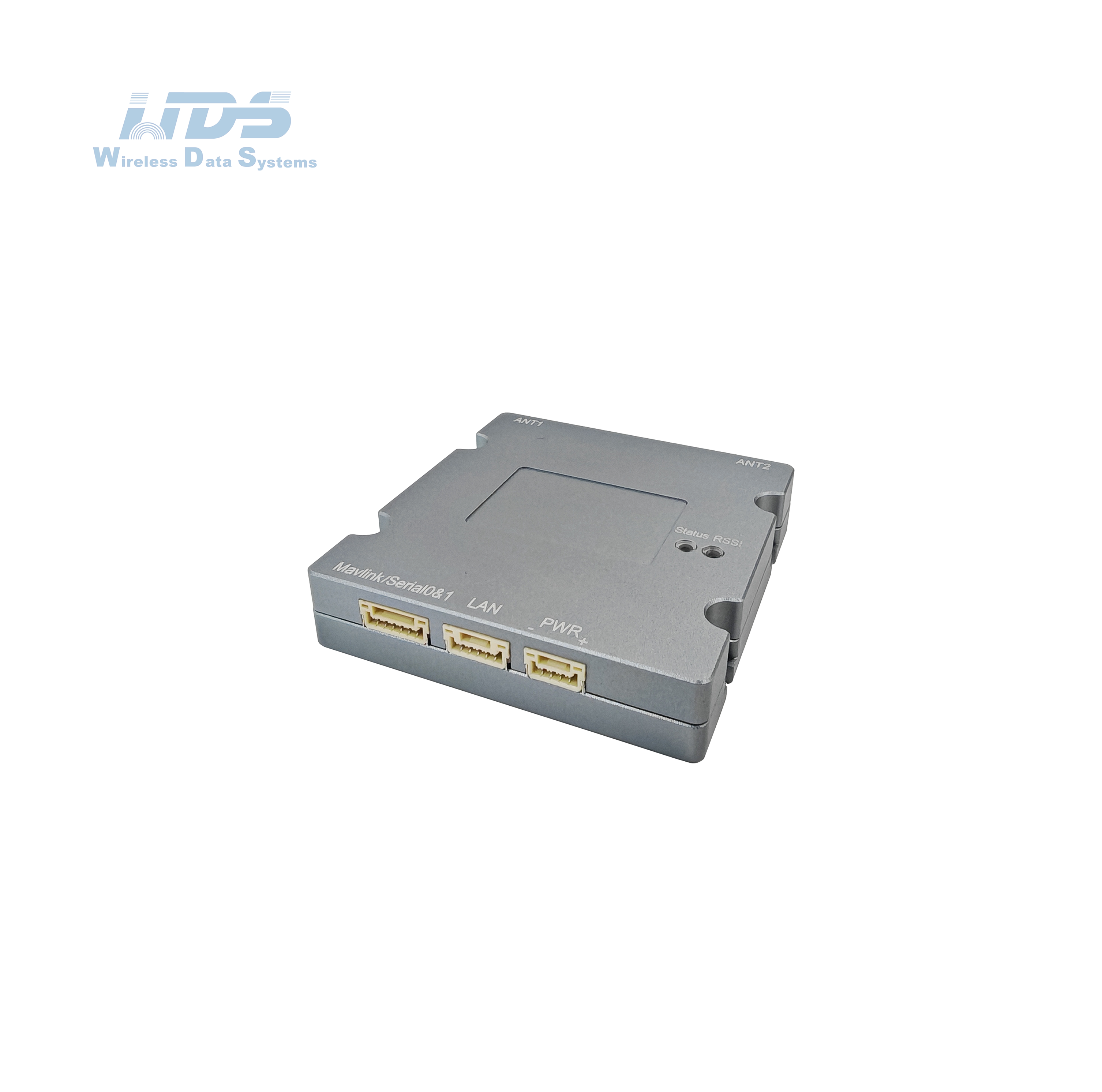

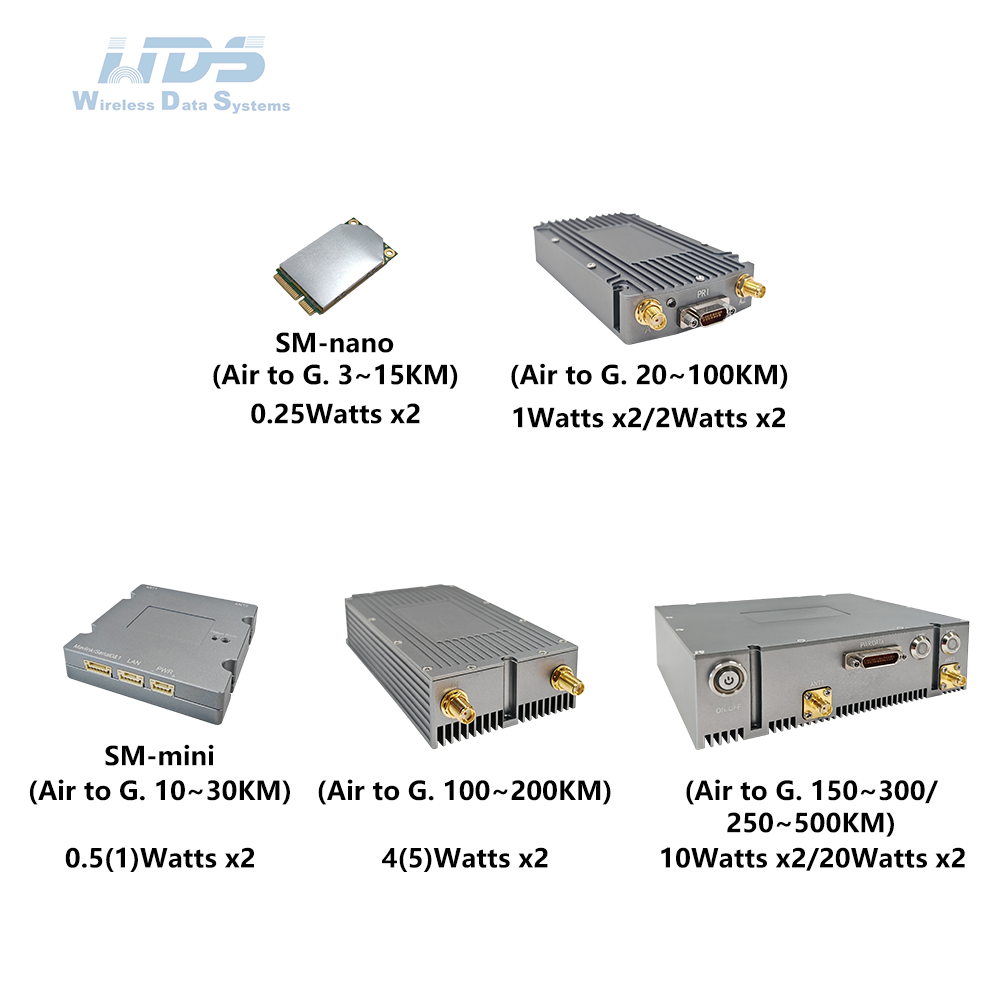

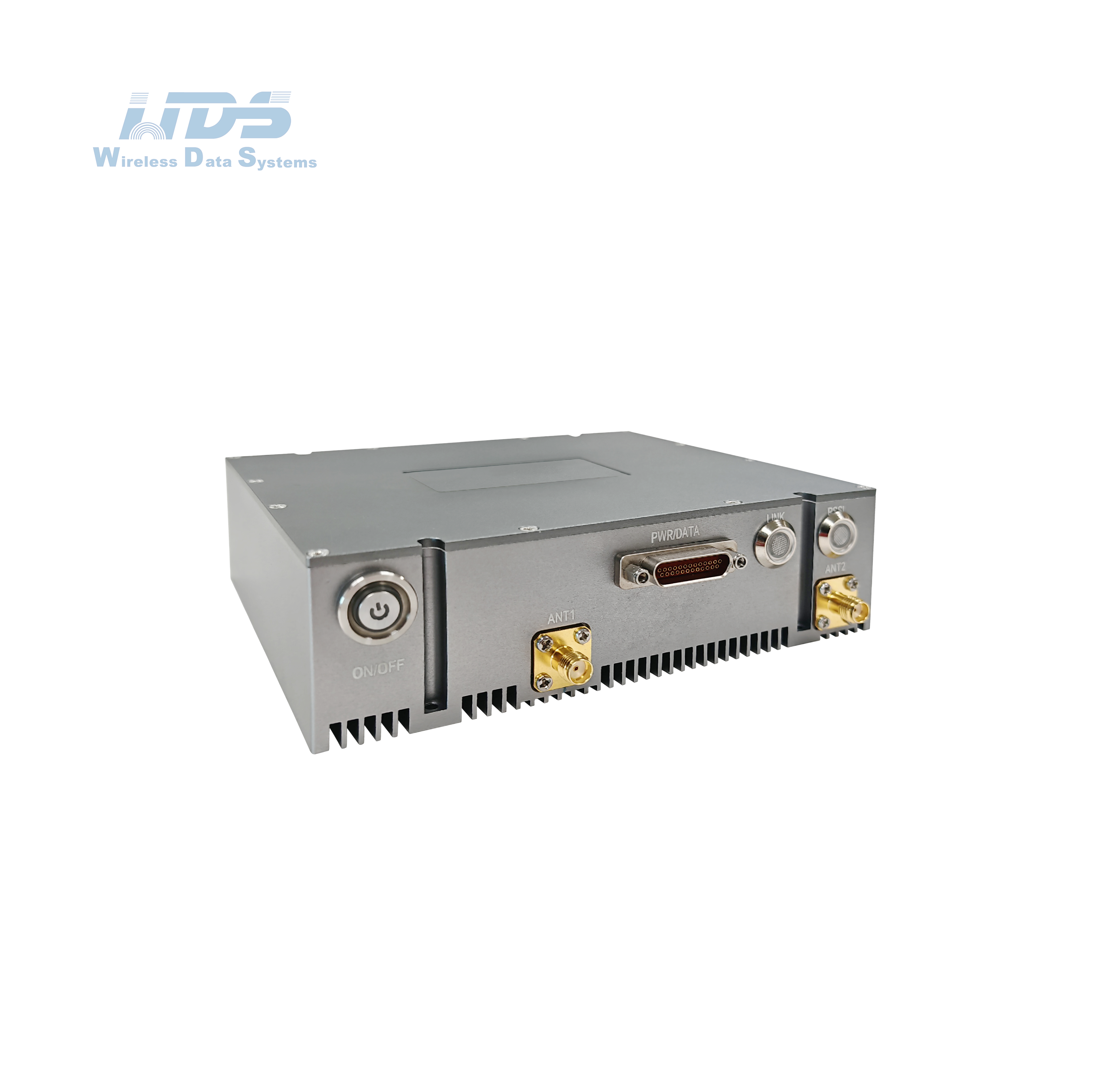

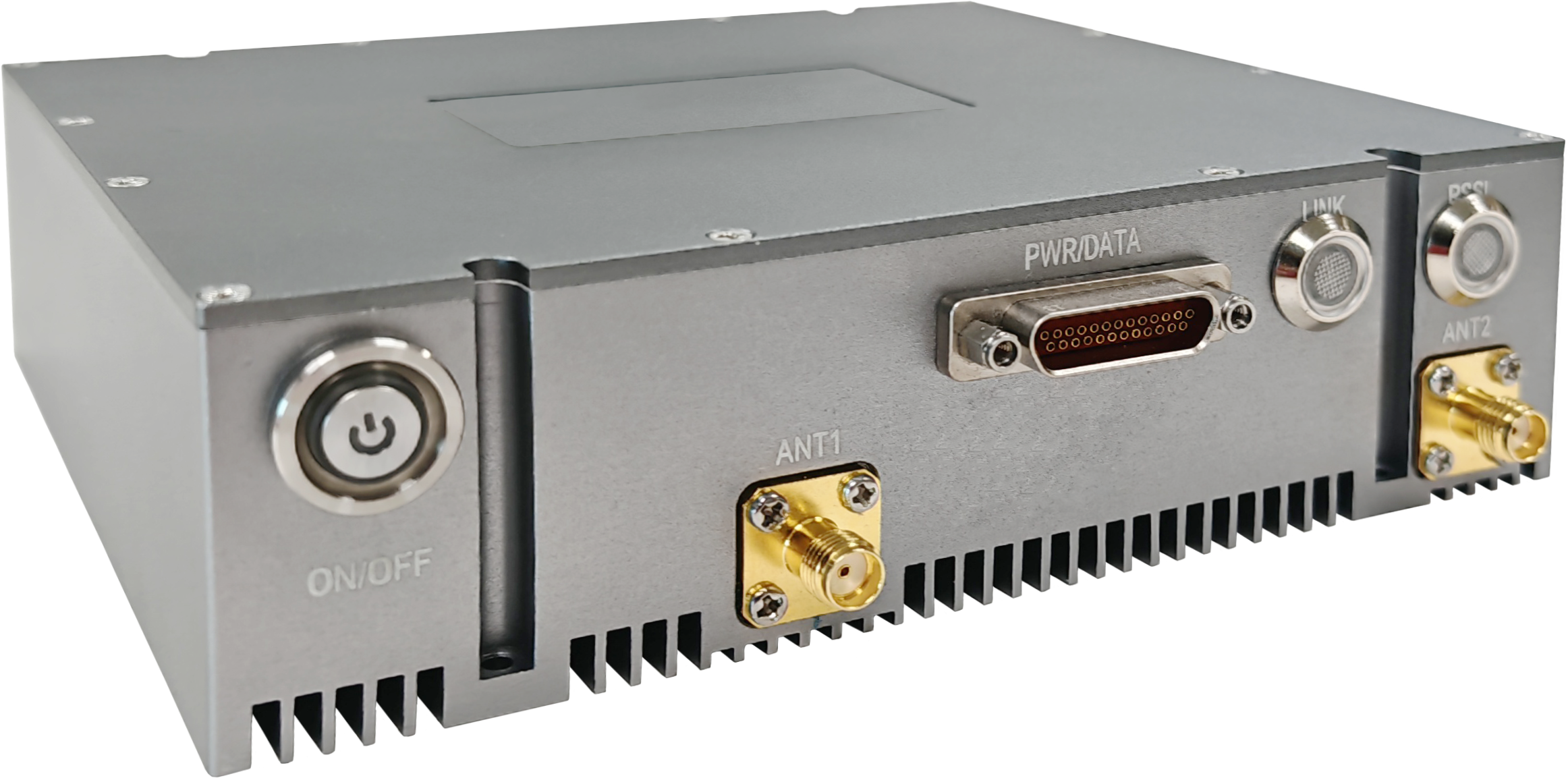

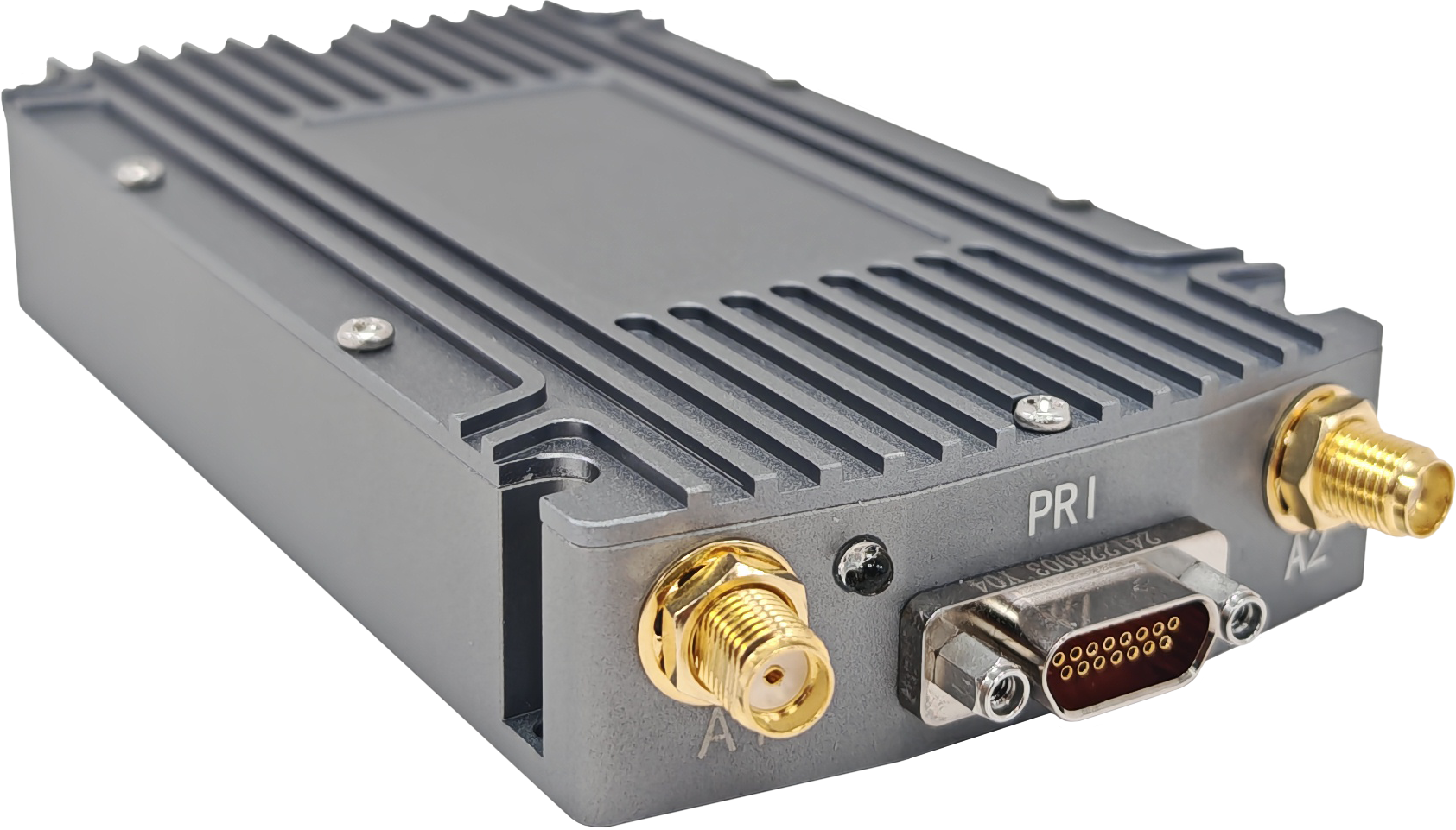

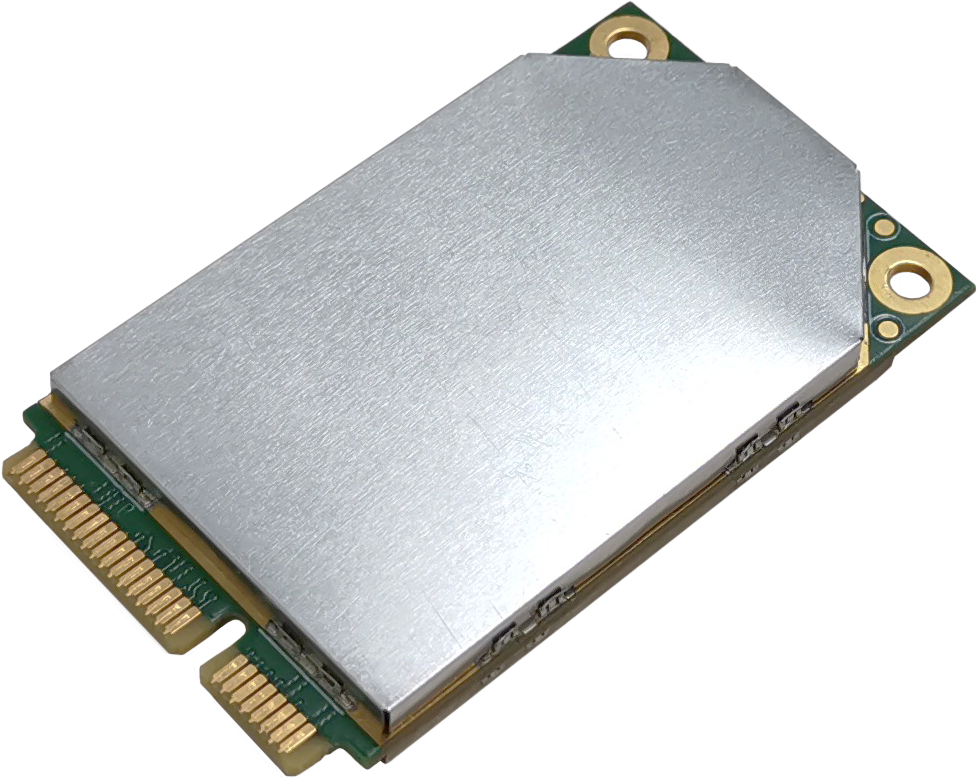

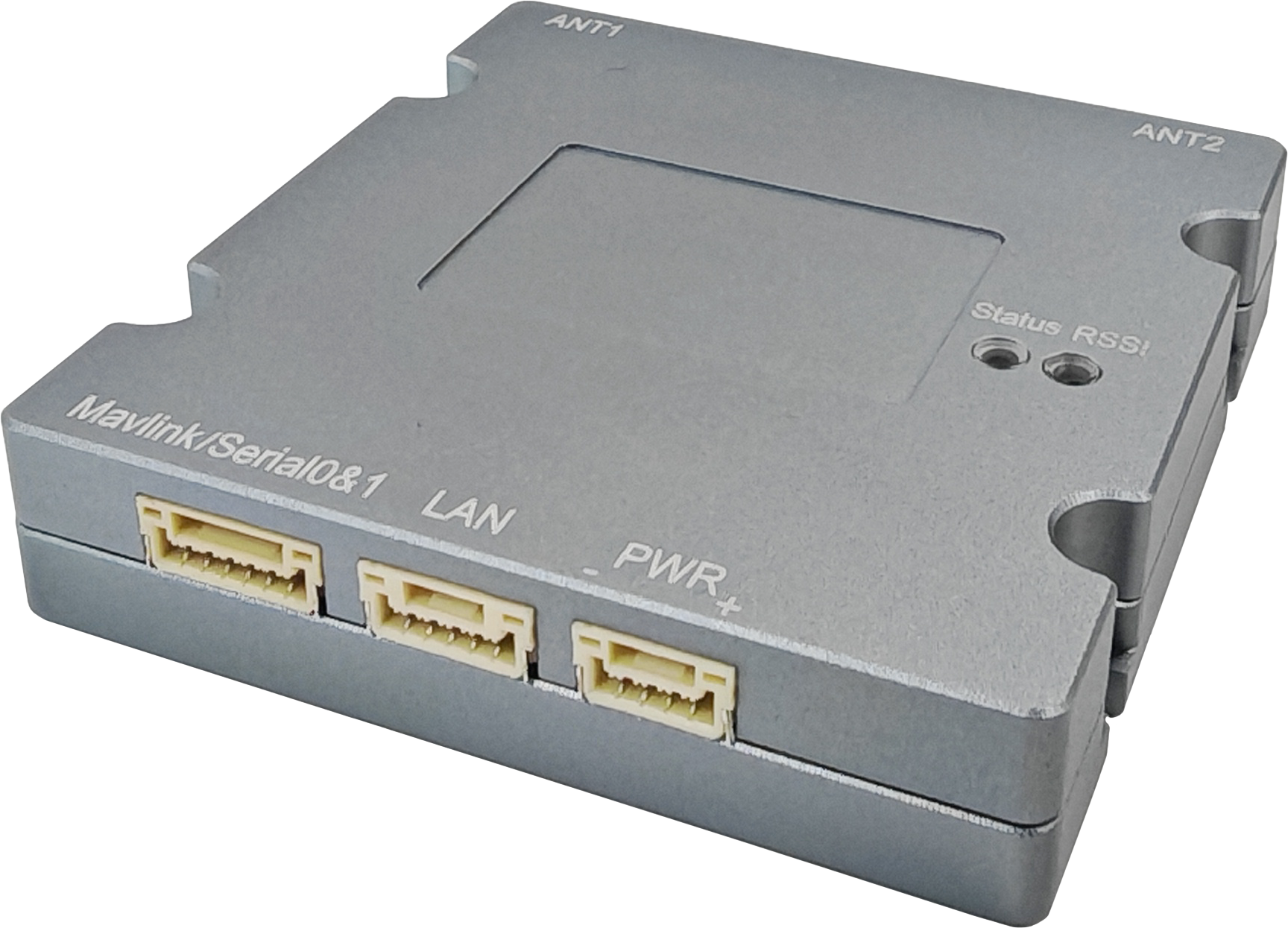

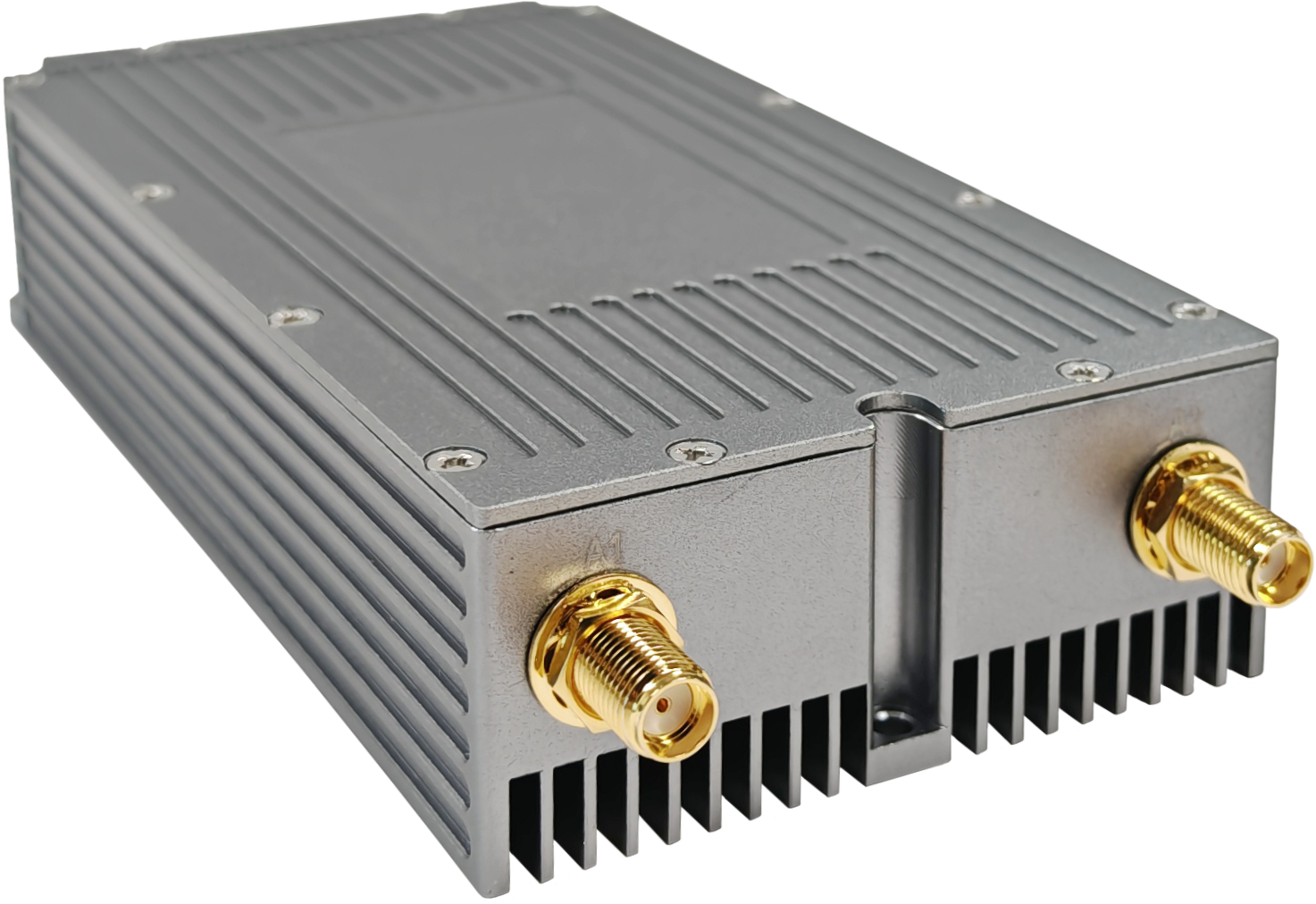

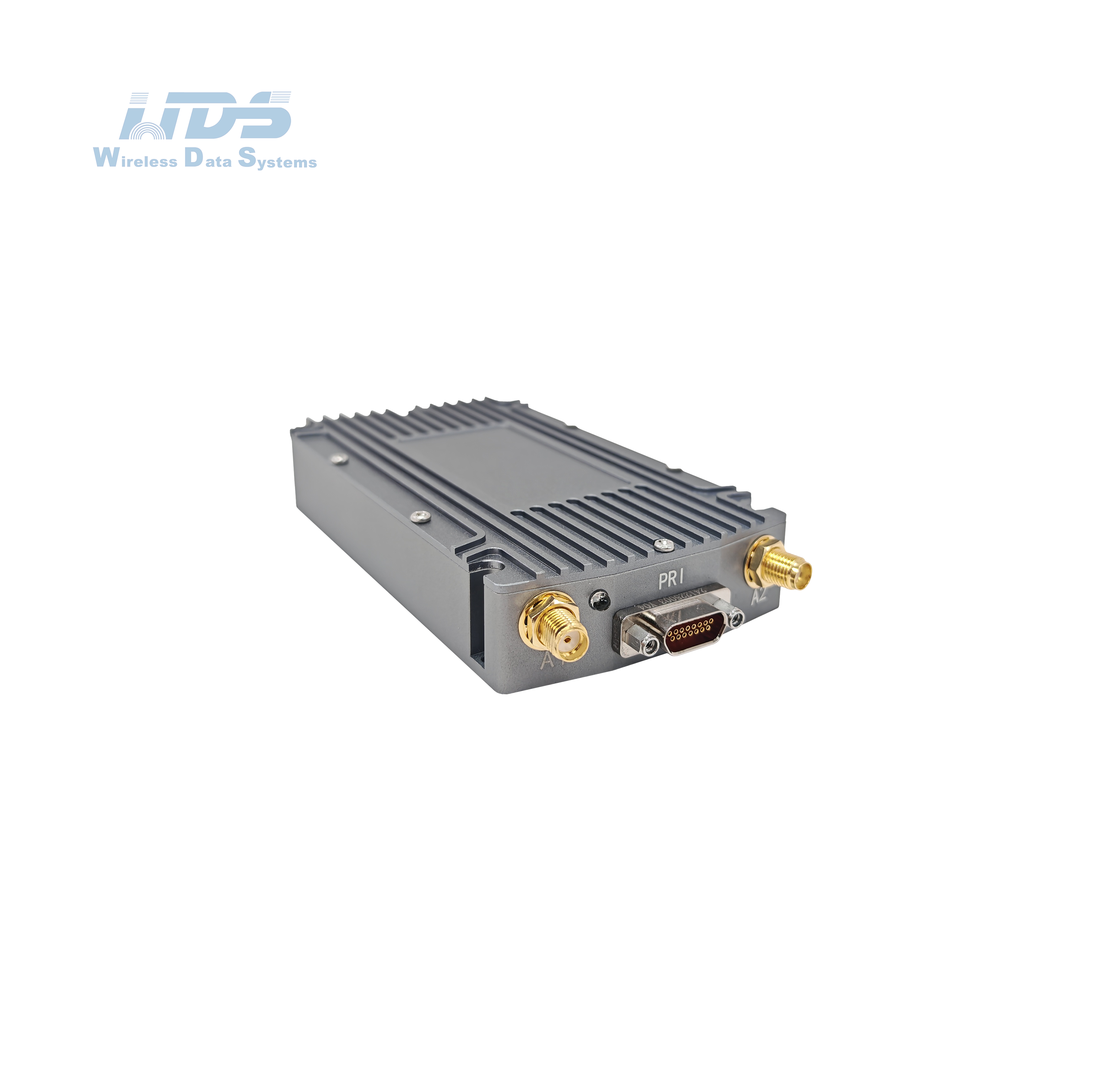

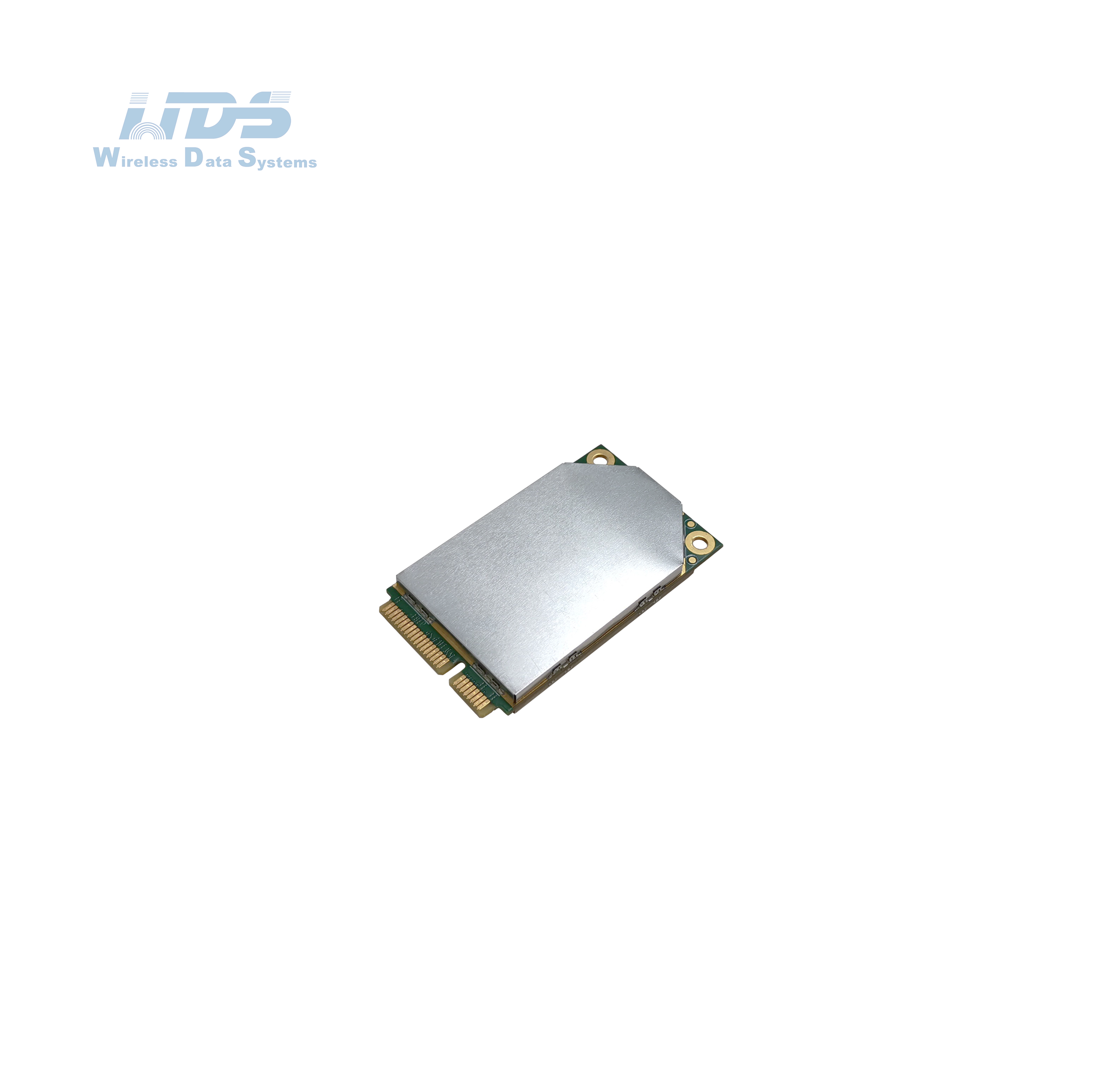

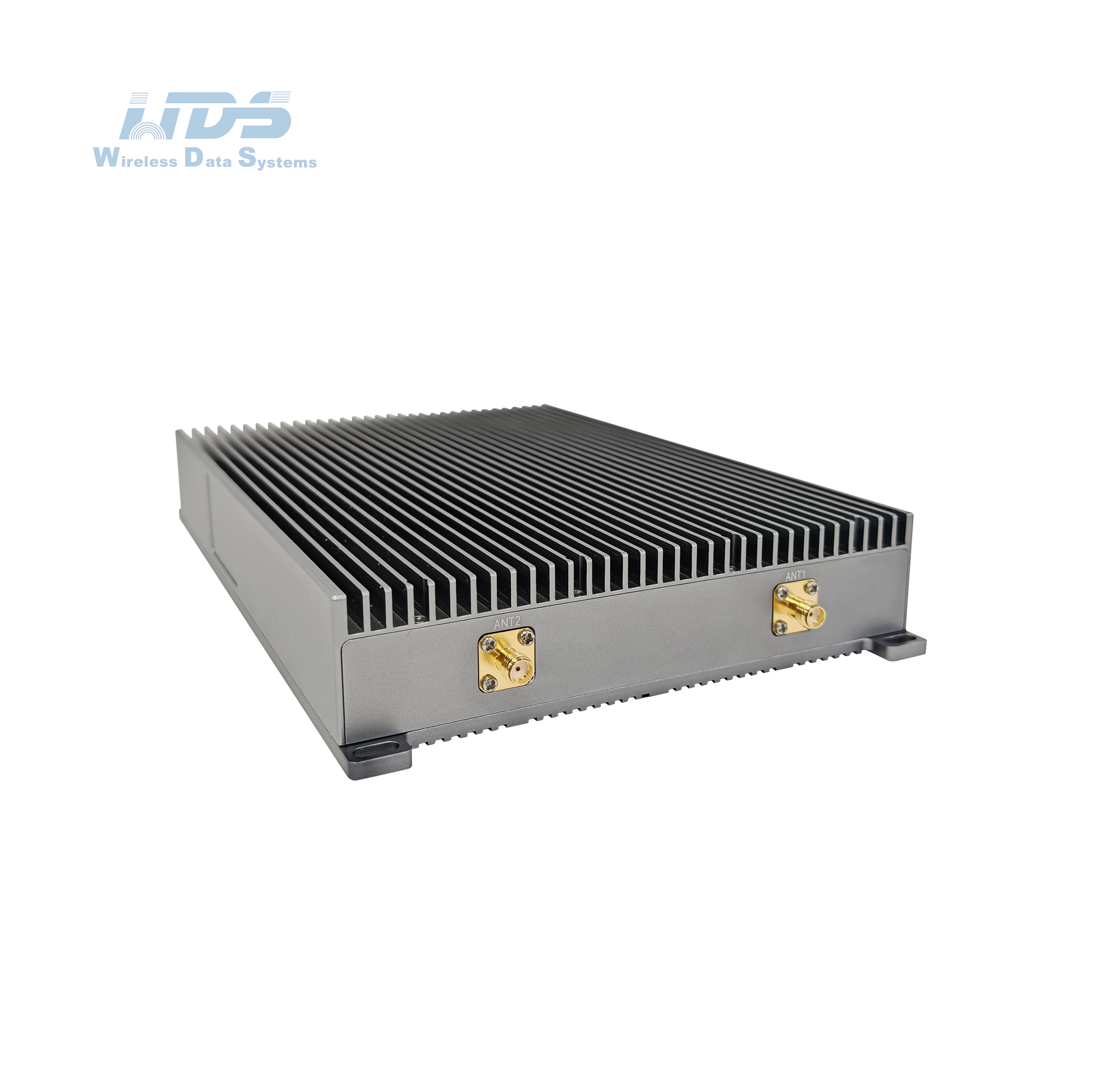

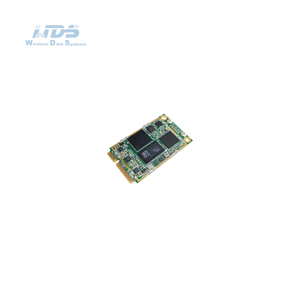

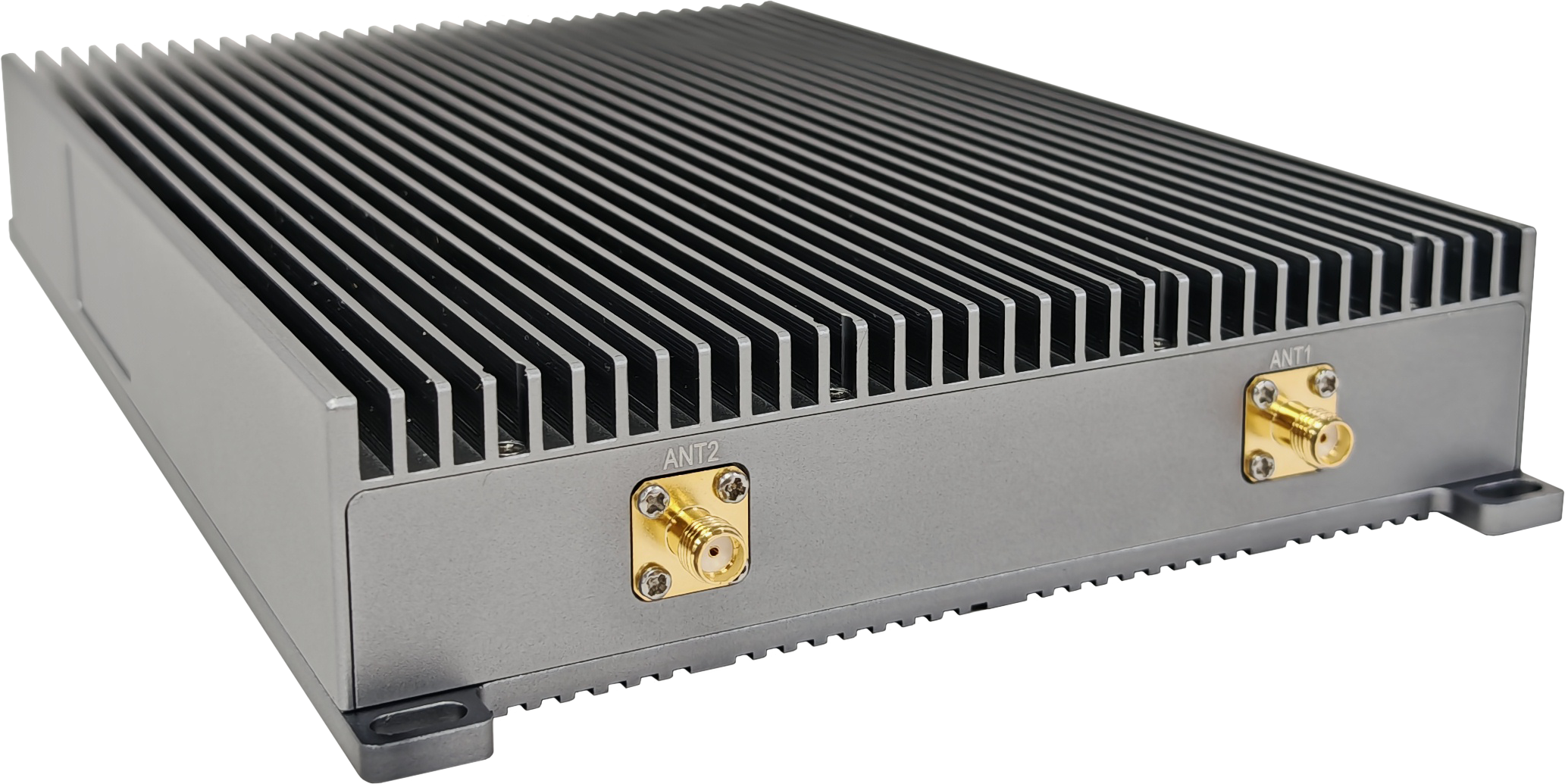

5.1x3.0x0.7cm/14g, 0.25Watts x2 Airborne Radio, SM-nano 6.0x4.8x1.1cm/46g, 0.5(1)Watts x2 Airborne Radio, SM-mini 6.0x5.8x1.3cm/60g, 0.5(1)Watts x2 Airborne Radio, SM-mini 11.7x6.2x2.0cm/160g, 1(2)Watts x2 Airborne Radio-Iron Gray 11.7x6.2x3.8cm/343g (1watts×2/2watts×2 Airborne Multi-interface Radio-Black) 11.7x6.2x4.2cm/364g (1watts×2/2watts×2 Airborne Multi-interface Radio-Black) 13.8x6.2x2.7cm/225, 4(5)Watts x2 Airborne Radio-Iron Gray 12.8x13.4x3.8cm/598g, 10Watts x2/20Watts x2 Airborne Radio-Iron Gray 14.2x14.0x5.0cm/962g, 10Watts x2/20Watts x2 Airborne Radio-Black |
Installation/Color | 4 Mounting Holes/Black, Iron Gray、Army Green Optional |
Power |
Supply Voltage |
3.5-5VDC, 0.25Watts x2, SM-nano 9-32VDC, 0.5Watts x2, SM-mini 9-39VDC, 1Watts x2 12-36VDC, 2Watts x2/4(5)Watts x2 18-32VDC ,10Watts x2/20Watts x2 |
Power Consumption |
Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts x2, SM-nano Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2, SM-mini Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2 Operation 2-4A/Standby 0.5-0.7A@12V, 4(5)Watts×2 Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2 Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2 |
Power Selection | Power Supply by Main Cable |
Interface |

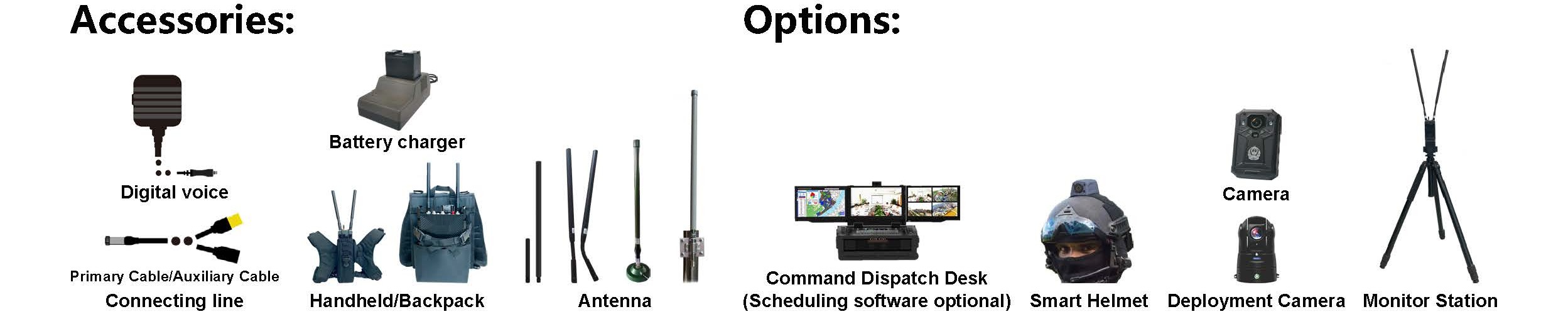

Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
Push to talk/Auxiliary interface | MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG |
Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down |
RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
Management Interface/ Control Interface | Web-based network management/GUI, API secondary development interface/SNMP |
