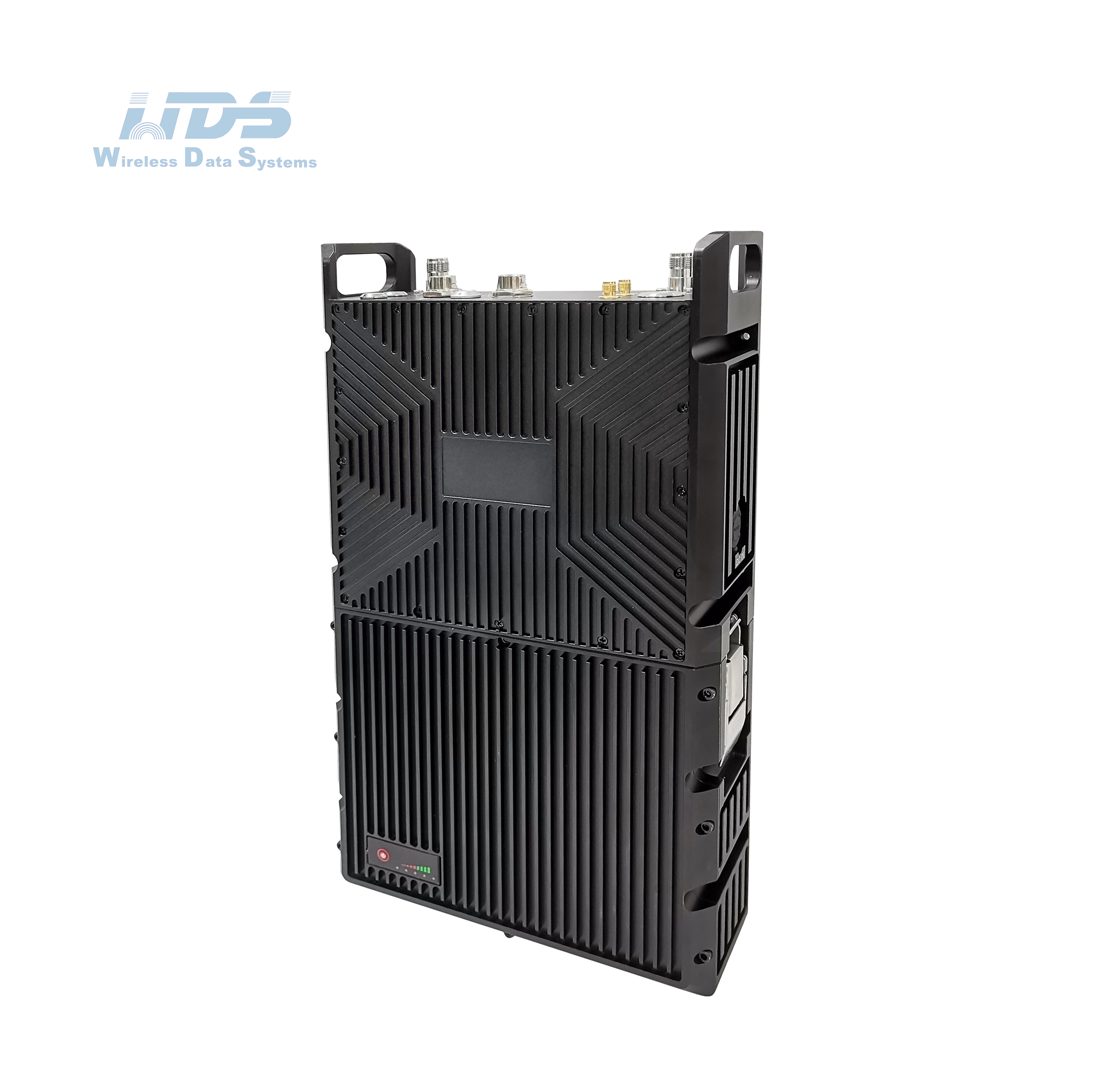

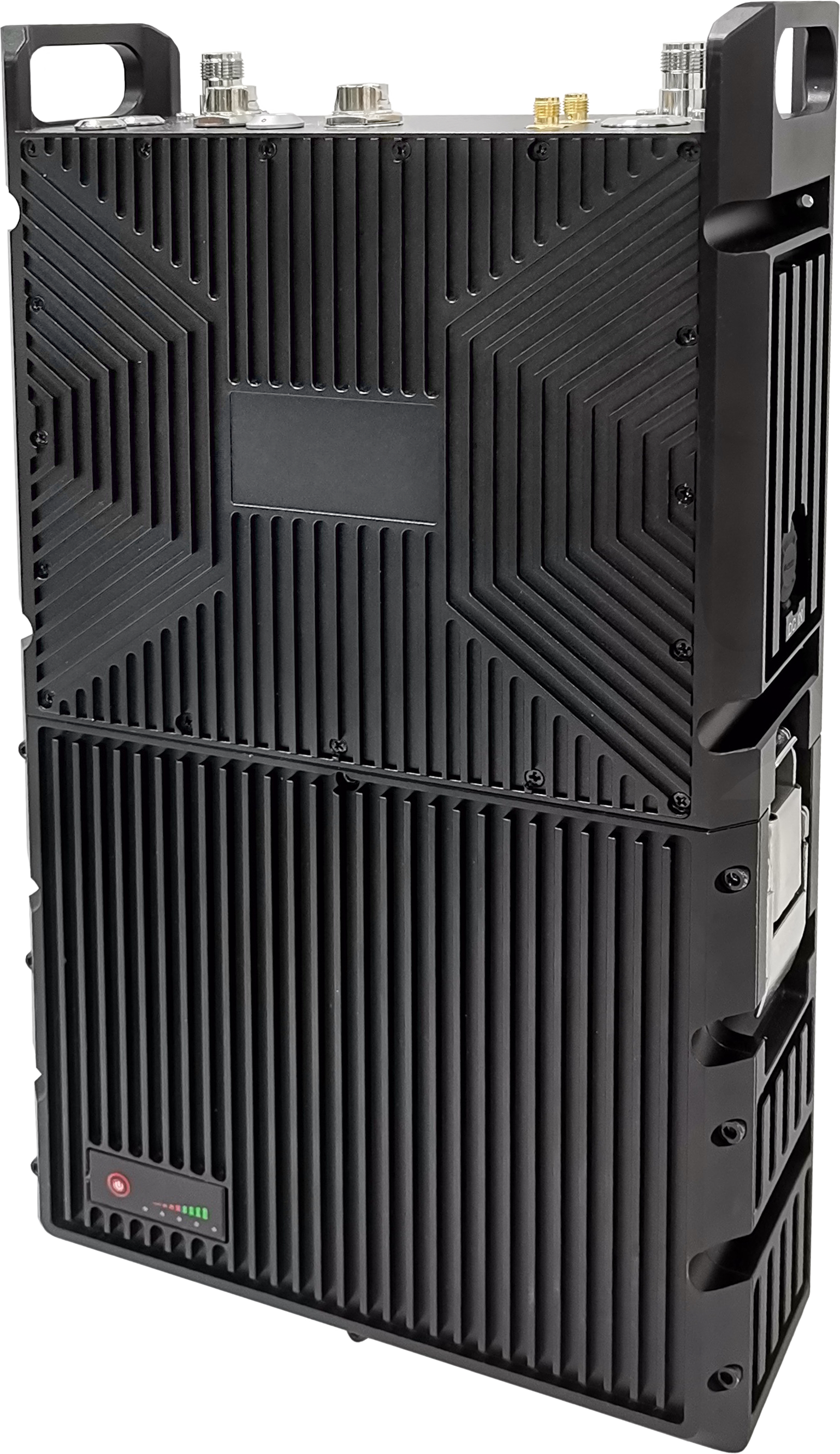

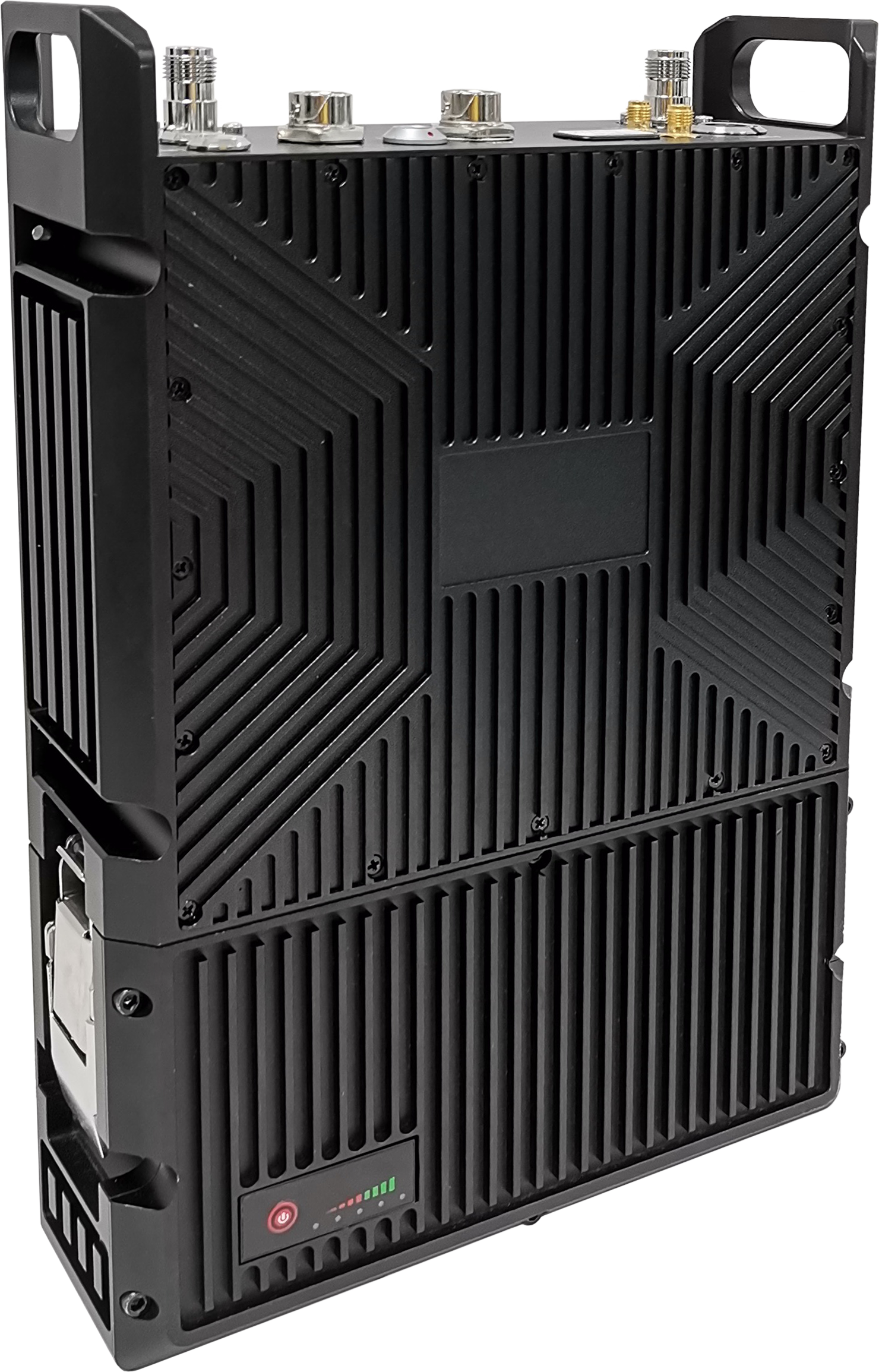

1. IP67 Rugged Backpack Design For MESH Networking In Harsh Environments
2. 10 Watts×2 Transmit Power, 10/12 Hours Or More Long Battery
3. Rich Interface, Built-In Network Port, Serial Port, High-Fidelity (G.722) Intercom Call
4. Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability
(WiFi)
(WiFi/HDMI/5G)
Product Advantage
1. IP67 Rugged Backpack Design For MESH Networking In Harsh Environments
2. 10 Watts×2 Transmit Power, 10/12 Hours Or More Long Battery
3. Rich Interface, Built-In Network Port, Serial Port, High-Fidelity (G.722) Intercom Call
4. Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability
(WiFi)
(WiFi/HDMI/5G)
Technical Parameters
| General | |||
SDR Platform, Waveform | 9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO | ||
MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing | ||
Receive Sensitivity | -103dBm@5MHz BW | ||
Channel Bandwidth | 1.25/2.5/5/10/20MHz、30/40MHz setting; 80MHz Carrier Aggregation (Dual-antennas with two-frequencies of 40MHz+40MHz for transceiver) optional | ||
Data Rate | 1-130Mbps(20MHz BW)/252Mbps (40MHz BW)/350Mbps(40MHz+40MHz of Carrier Aggregation) Adaptive, QoS | ||
Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) | ||
RF Output Power (Support TPC, transmission power control, 1dBm adjustable | 10Watts×2 20Watts×2 | ||
Single Hop Communication Distance | 100-300 KM (LOS), 1-30 KM (urban area) | ||
Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid | ||
Single Hop Delay | Average 10mS (20MHz BW) | ||
Encryption | DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine | ||
Anti-Jamming Mode | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional | ||
Local/ Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance,GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade.Remote silence and wake-up optional | ||
Others | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) | ||
| Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) | |||
BAND | Frequency range | BAND | Frequency range |
VHF/UHF (MHz) | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* | S Band(GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/ 2.7-3.6* |
L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.2* | C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) | |||
MIIT (MHz) | 336-344/512-582/566-626/606-678/1420-1520/1430-1444 | ||
| Environmental | |||
Operation Temperature | -40℃ ~+80℃ | ||
Protection Level | IP66, IP67/IP68 Customized | ||
| Mechanical | |||
Size/Weight | 22.9x18.9x6.2cm/3.86kg (with 22.2V/213Wh battery Backpack Radio) 31.4x18.9x6.2cm/4.95kg (with 22.2V/427Wh battery Backpack Radio) | ||
Color | Black, Iron Gray、Army Green Optional | ||
Installation | 4 Mounting Holes | ||
| Power | |||
Supply Voltage | 18-24/18-36VDC (10Watts×2/20Watts×2) | ||
Power consumption | Operation 3-6A/Standby 0.7-0.9A@16.8V (10Watts×2) Operation 6-7A/Standby 0.7-0.9A@20V (20Watts×2) | ||
Power Selection | Power Supply by Twist-Lock Battery or Main Cable | ||
Batteries | 10-12/6-8 hours for 427/213Wh polymer lithium battery | ||
| Interface | |||
Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input | ||
Push to talk/ Auxiliary interface | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG | ||
Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite | ||
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 | ||
Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down | ||
RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down | ||
Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP | ||
