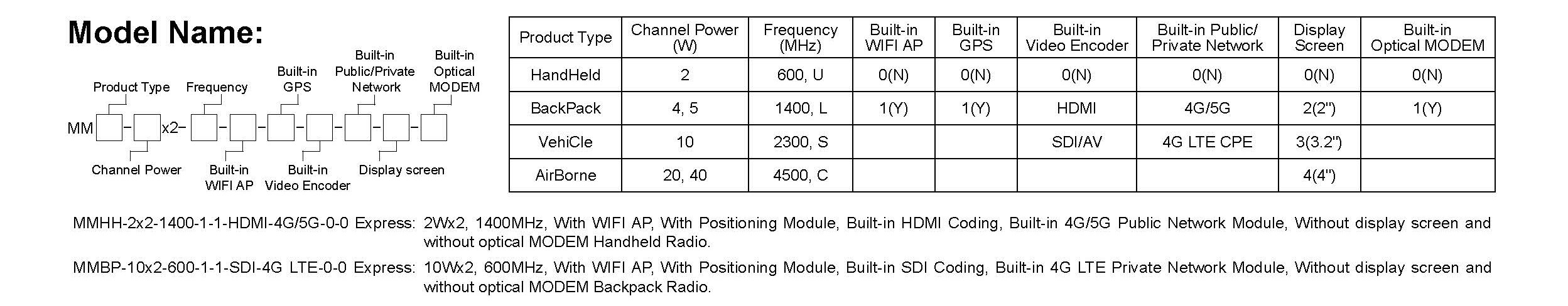

| General |
SDR Platform, Waveform | 9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO |
MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing |
Receive Sensitivity | -103dBm@5MHz BW |
Channel Bandwidth | 1.25/2.5/5/10/20MHz、30/40MHz setting; 80MHz Carrier Aggregation (Dual-antennas with two-frequencies of 40MHz+40MHz for transceiver) optional |
Data Rate | 1-130Mbps(20MHz BW)/252Mbps (40MHz BW)/350Mbps(40MHz+40MHz of Carrier Aggregation) Adaptive, QoS |
Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
RF Output Power
(Support TPC, transmission power control, 1dBm adjustable) | 2Watts×2 4Watts×2 5Watts×2 10Watts×2 20Watts×2 |
Single Hop Communication Distance | Air to G. 50~150/100~200KM (2Watts×2/4Watts×2), Air to G. 150~300/250~500KM (10Watts×2/20Watts×2) |
Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
Single Hop Delay | Average 10mS (20MHz BW) |
Encryption | DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
Anti-Jamming Mode | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional |
Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands (70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) |
BAND | Frequency range | BAND | Frequency range |
VHF/UHF (MHz) |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470* | S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/ 3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/ 2.1-2.7/2.7-3.6* |
L Band (GHz) |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.5* | C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) |
|
MIIT (MHz) | 336-344/512-582/566-626/606-678/1420-1520/1430-1444 |
| Environmental |
Operation Temperature | -40℃ ~+80℃ |
Protection Level | IP66, IP67/IP68 Customized |
| Mechanical |

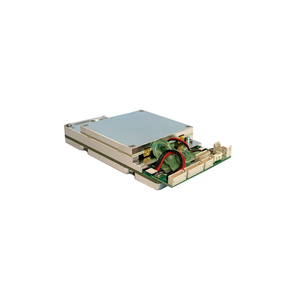

Size/Weight |

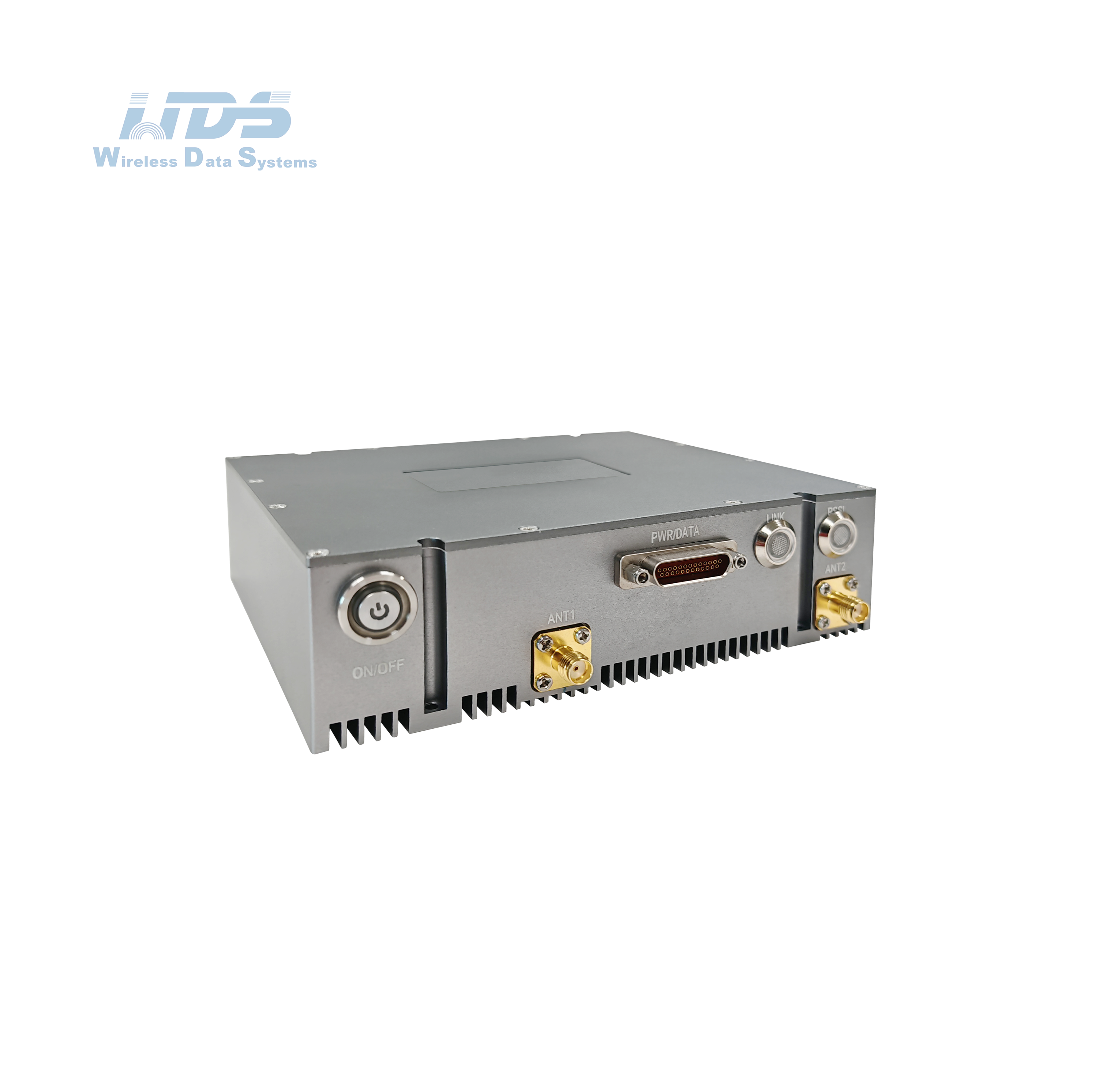

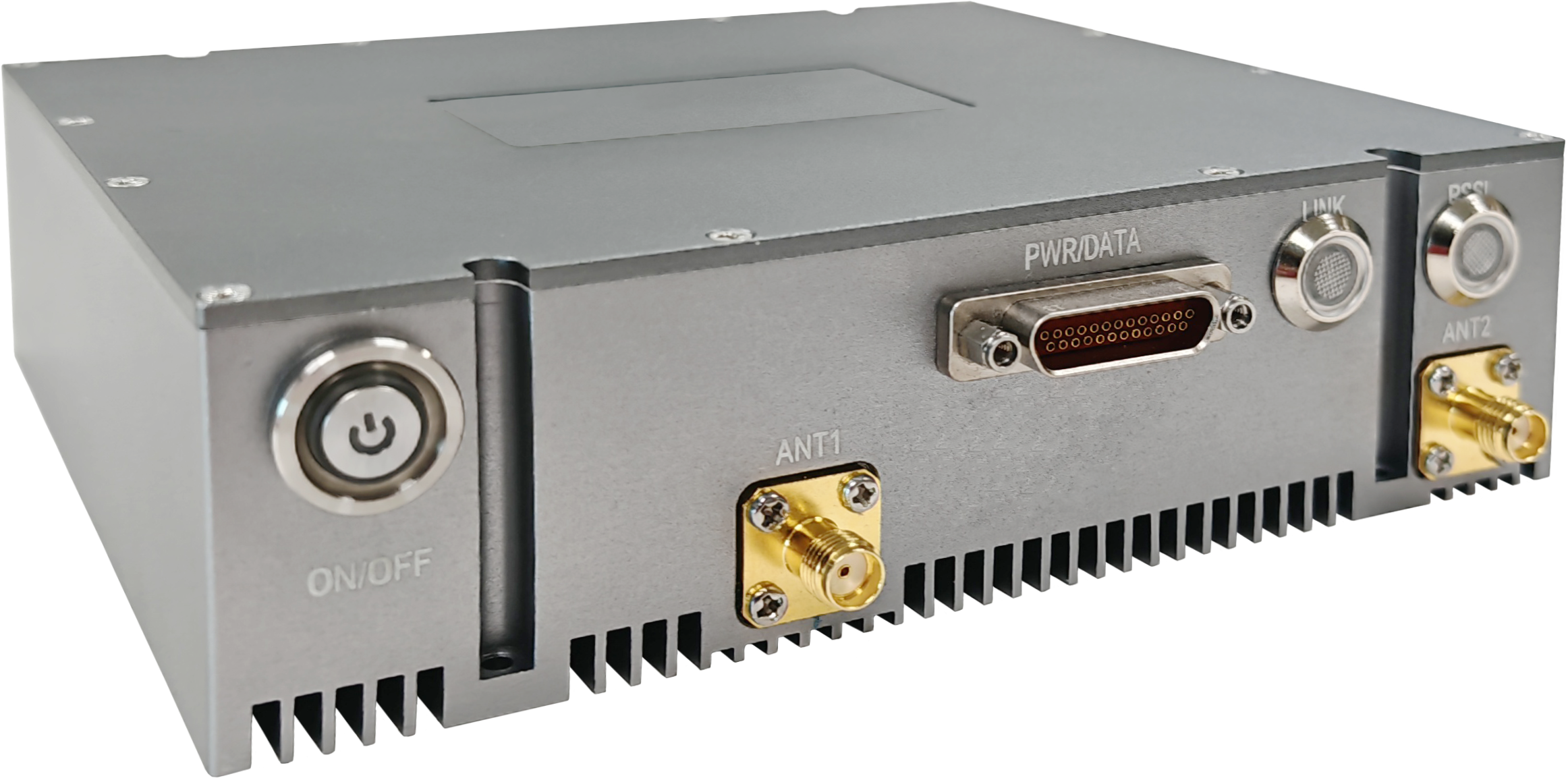

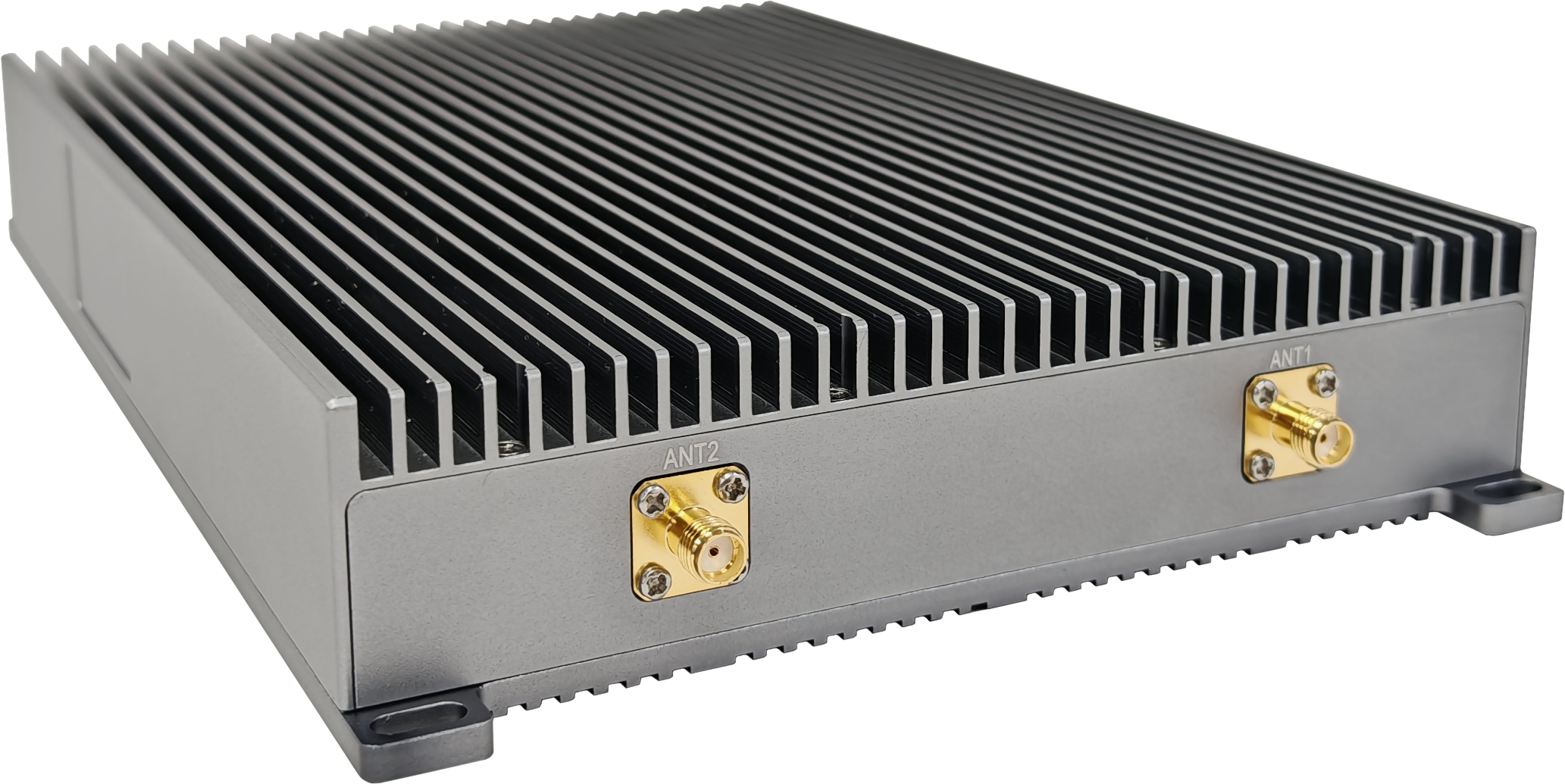

11.7x6.2x3.2cm/279g (2watts×2/4watts×2/5Watts×2 Airborne Radio-Iron Gray) 11.7x6.2x3.8cm/343g (2watts×2/4watts×2/5Watts×2 Airborne Multi-interface Radio-Black) 11.7x6.2x4.2cm/364g (2watts×2/4watts×2/5Watts×2 Airborne Multi-interface Radio-Black) 12.8x13.4x3.8cm/674g(10watts×2/20watts×2 Airborne Radio-Iron Gray) 14.2x14.0x5.0cm/990g (10watts×2/20watts×2 Airborne Radio-Black) |
Installation/Color | 4 Mounting Holes/Black, Iron Gray、Army Green Optional |
Power |
Supply Voltage |
9-24VDC (2Watts×2) 12-28VDC (4Watts×2/5Watts×2) 18-24VDC (10Watts×2) 18-36VDC (20Watts×2) |
Power consumption |
Operation 1-2A/Standby 0.4-0.6A@12V (2Watts×2) Operation 2-4A/Standby 0.5-0.7A@12V (4Watts×2/5Watts×2) Operation 3-6A/Standby 0.7-0.9A@24V (10Watts×2) Operation 6-7A/Standby 0.7-0.9A@24V (20Watts×2) |

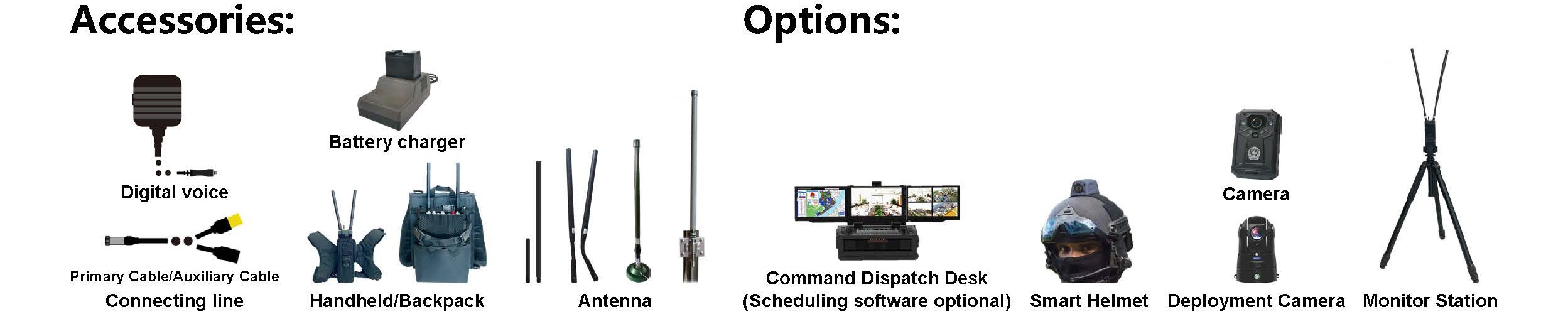

Power Selection | Main Cable |
| Interface |
Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP, GPS/BD, RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down |
RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
