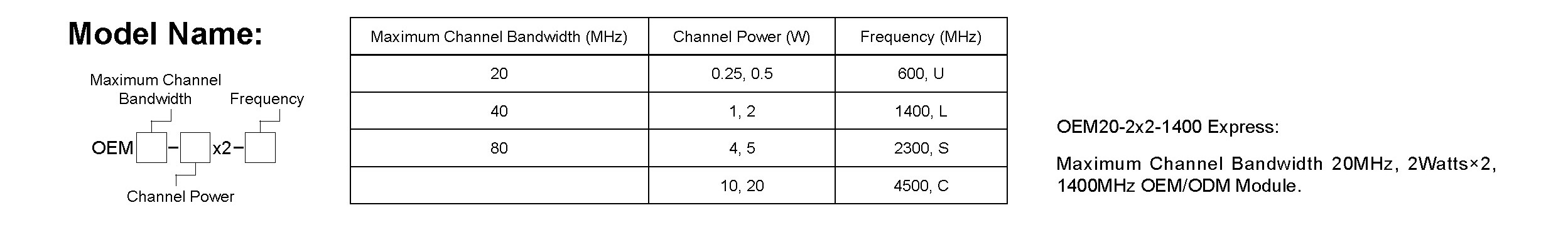

| General |
SDR Platform, Waveform | AD936X+FPGA (7Z020、7Z030、7Z035、7Z100), Mobile network MANET+MIMO |
MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing |
Receive Sensitivity | -103dBm@5MHz BW |
Channel Bandwidth | 1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
Data Rate | 1-70Mbps (20MHz BW, 7Z020)/1-130Mbps (20MHz BW, beamforming by 7Z030)/1-252Mbps (40MHz BW, 7Z035)/1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS |
Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
RF Output Power (Support TPC, transmission power control, 1dBm adjustable) | 0.25Watts×2; 0.5Watts×2; 1Watts×2; 2Watts×2; 4Watts×2; 5Watts×2; 10Watts×2; 20Watts×2 |
Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
Single Hop Delay | Average 6ms (Unidirectional, 20MHz BW) |
Encryption | DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
Anti-Jamming Mode | Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) |
Others | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second; There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops); The total transmission rate loss for more than three hops is less than 70%; Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands (70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R for single-band/dual-band/tri-band) |
BAND | Frequency range | BAND | Frequency range |
VHF/UHF (MHz) | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* | S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/ 3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/ 2.1-2.7/2.7-3.6* |
L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.5* | C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) |
|

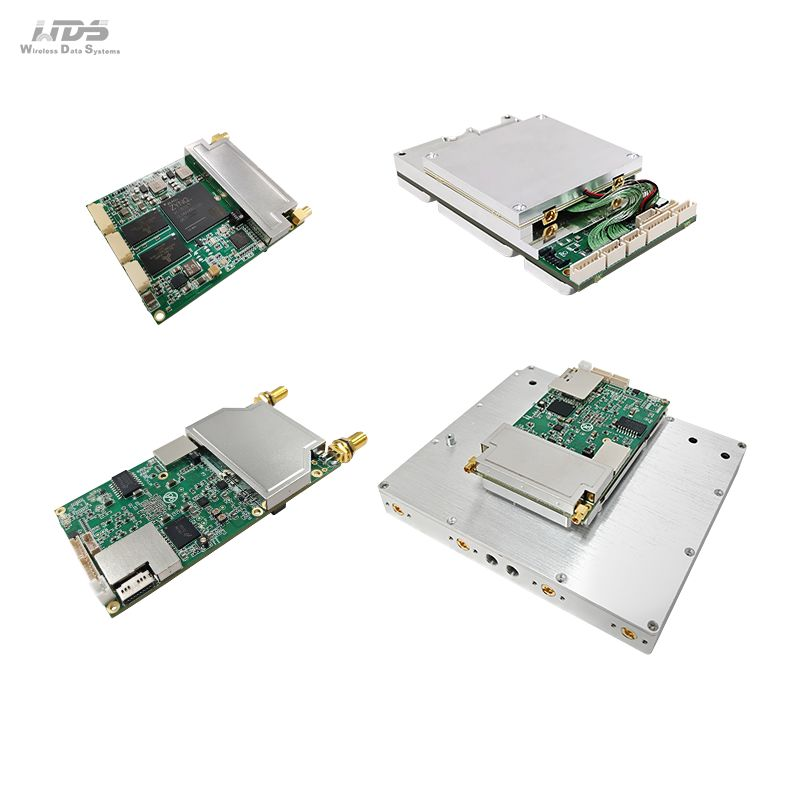

MIIT (MHz) | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
| Environmental |
Operation Temperature | -40℃ ~+80℃ |
Protection Level | IP66 (IP67/IP68 Customized) |
| Mechanical |

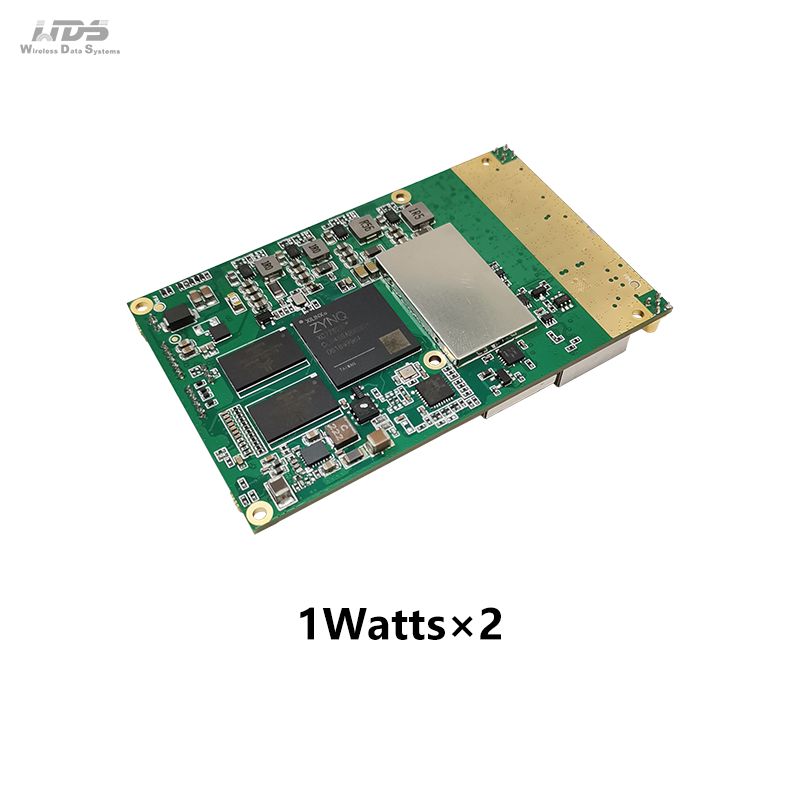

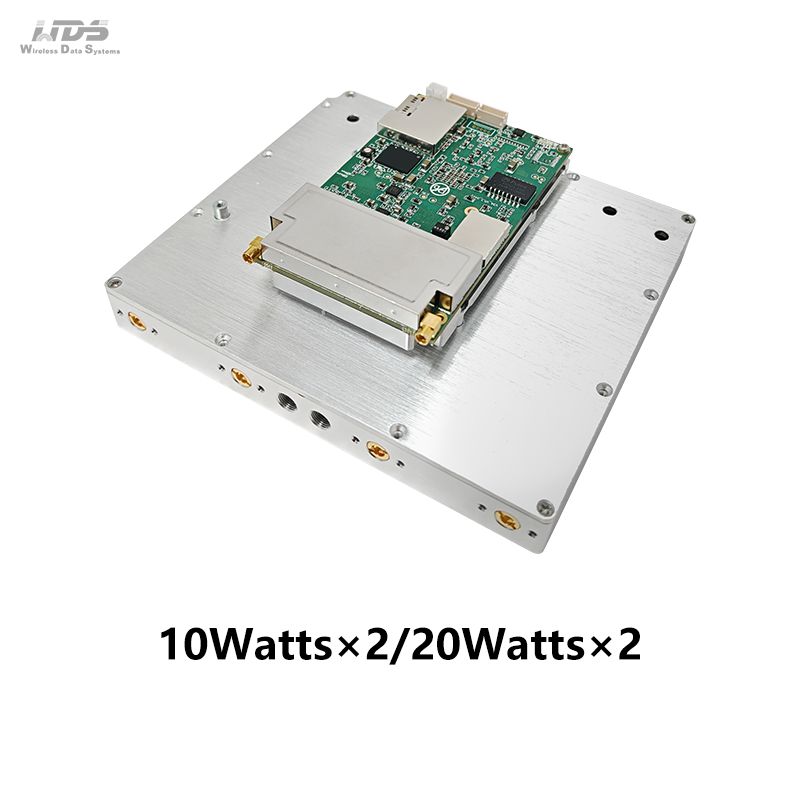

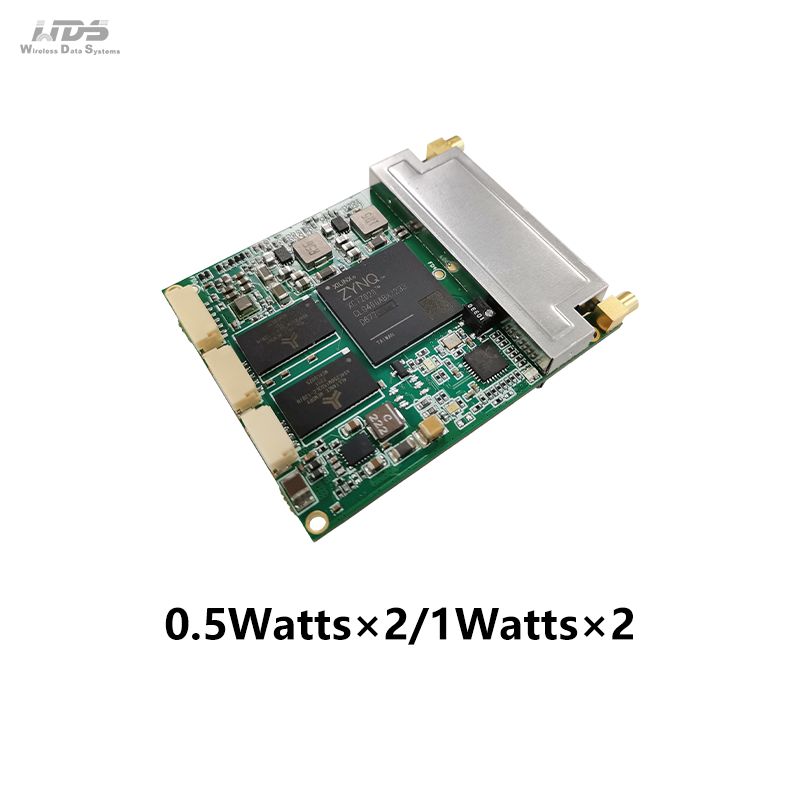

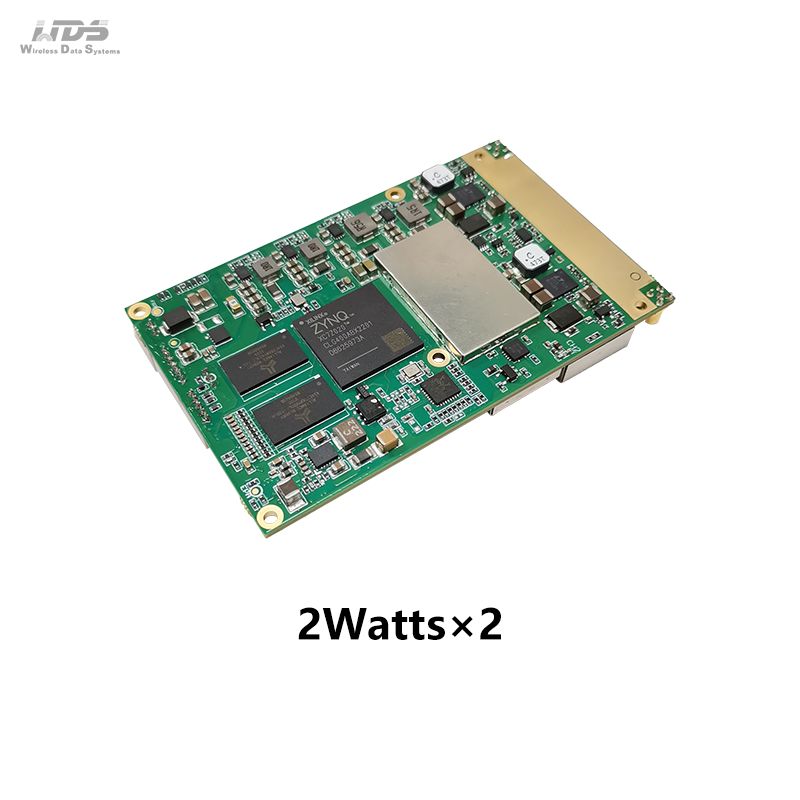

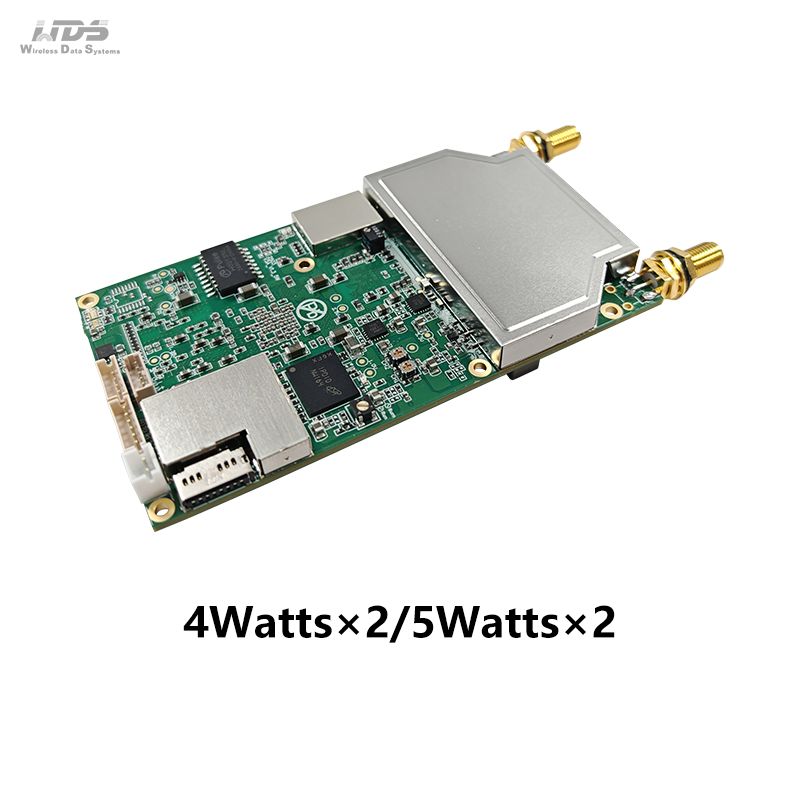

Size/Weight | 5.1x3.0x0.6cm/11g, 0.25Watts×2 5.8x4.8x1.0cm/27g, 0.5Watts×2/1Watts×2 8.7x5.4x1.0cm/40g, 1Watts×2 8.7x5.4x1.0cm/43g, 2Watts×2 11.5x5.4x1.3cm/56g, 4Watts×2/5Watts×2 10.1x5.4x1.9cm/124g, 2Watts×2/4Watts×2/5Watts×2 10.1x5.4x1.9cm/127g, 2Watts×2/4Watts×2 12.7x11.0x3.4cm/524g, 10Watts×2/20Watts×2 12.7x11.0x3.6cm/575g, 10Watts×2/20Watts×2 12.7x11.0x3.6cm/600g, 10Watts×2/20Watts×2 |
| Installation | 4 Mounting Holes |
Power |
Supply Voltage | 3.5-5V DC, 0.25Watts×2 9-39V DC, 0.5Watts×2/1Watts×2 12-36V DC, 2Watts×2/4Watts×2/5Watts×2 18-32V DC, 10Watts×2/20Watts×2 |
Power consumption | Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2 Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2 Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2 Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2 Operation 3-6A/Standby 0.7-0.9A@18V, 10Watts×2 Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2 |
Power Selection | Power Supply by Main Cable |
| Interface |
Basic interface | 2xIPEX/2xMMCX/2xSMP/2xSMA RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps, WIFI AP, BD/GPS (GNSS) optional. Supports transparent transmission via Ethernet and serial ports, and supports all communication protocols, including MAVLink. Service priority can be selected |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Power Indicator | Steady green - Powered on |
Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected |
RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor Off - The link is interrupted |
Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
