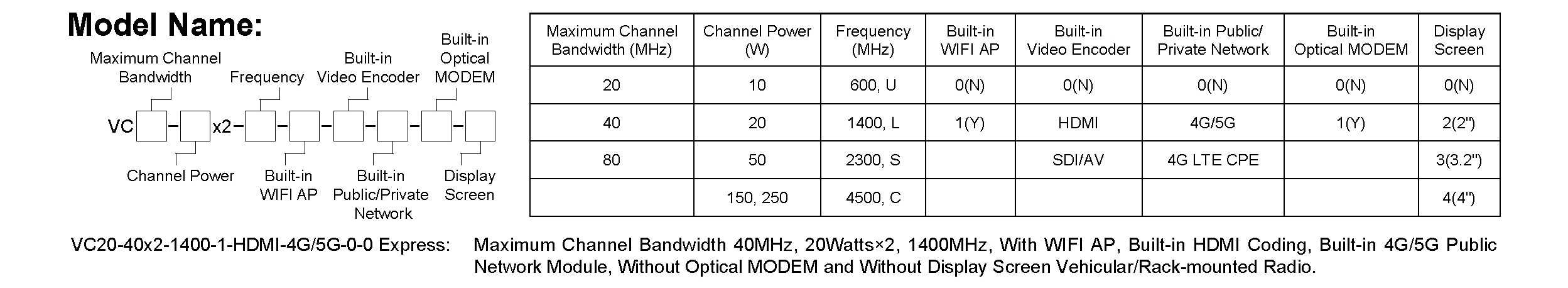

| General |
SDR Platform, Waveform |
AD936X+FPGA (7Z020、7Z030、7Z035、7Z100), Mobile network MANET+MIMO |
MIMO Technology |
Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing |
Receive Sensitivity |
-103dBm@5MHz BW |
Channel Bandwidth |
1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
Data Rate |
1-70Mbps (20MHz BW, 7Z020)/1-130Mbps (20MHz BW, beamforming by 7Z030)/1-252Mbps (40MHz BW, 7Z035)/1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS |
Modulation Mode |
TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
RF Output Power (Support TPC, transmission power control, 1dBm adjustable) |
10Watts×2/20Watts×2 40Watts×2/50Watts×2 150Watts×2/250Watts×2 (Customization) |
Mode |
Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
Single Hop Delay |
Average 6ms (Unidirectional, 20MHz BW) |
Encryption |
DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) |
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second; There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops); The total transmission rate loss for more than three hops is less than 70%; Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands (70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R for single-band/dual-band/tri-band) |
BAND |
Frequency range |
BAND |
Frequency range |
VHF/UHF (MHz) |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470* |
S Band (GHz) |
2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/ 3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/ 2.1-2.7/2.7-3.6* |
L Band (GHz) |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/ 1.7-2.4/1.8-2.5* |
C Band (GHz) |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
|
(Note: RF power, Dimensions, Weight is different) |
|
MIIT (MHz) |
336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
| Environmental |
Operation Temperature |
-40℃ ~+80℃ |
Protection Level |
IP66 (IP67/IP68 Customized) |
| Mechanical |
Size/Weight |

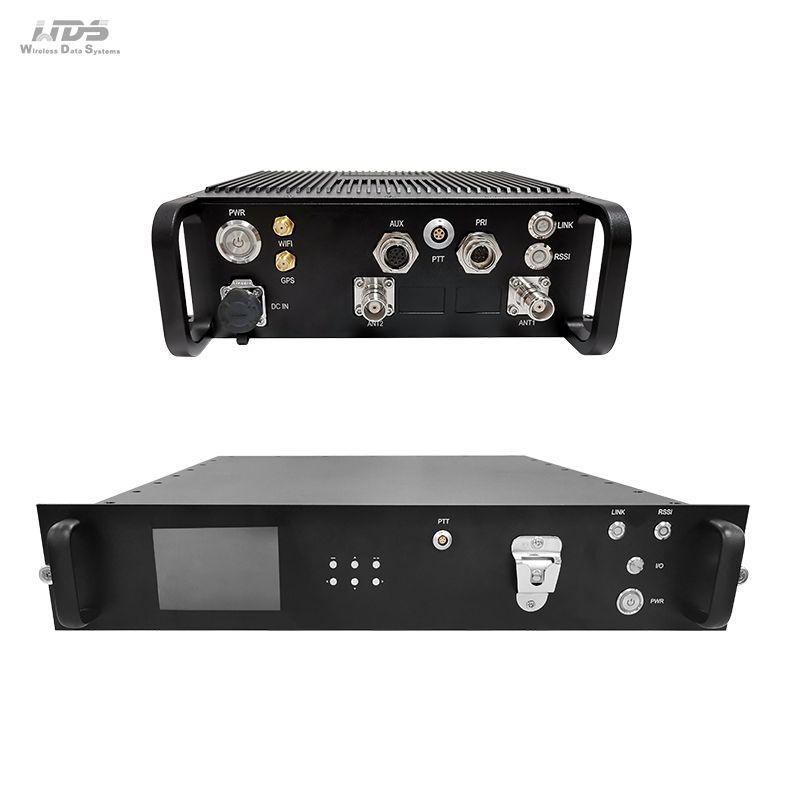

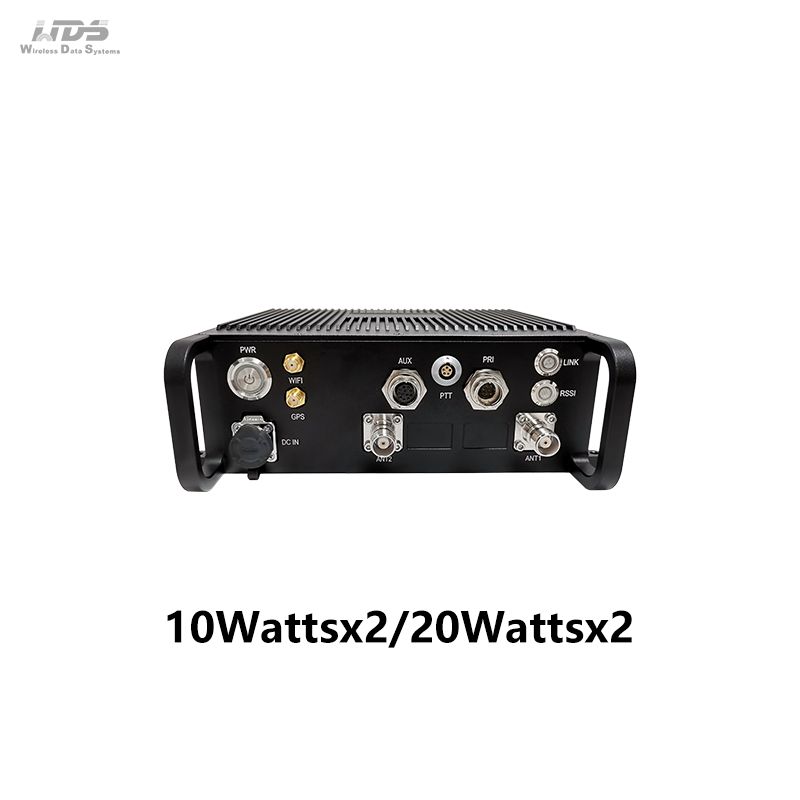

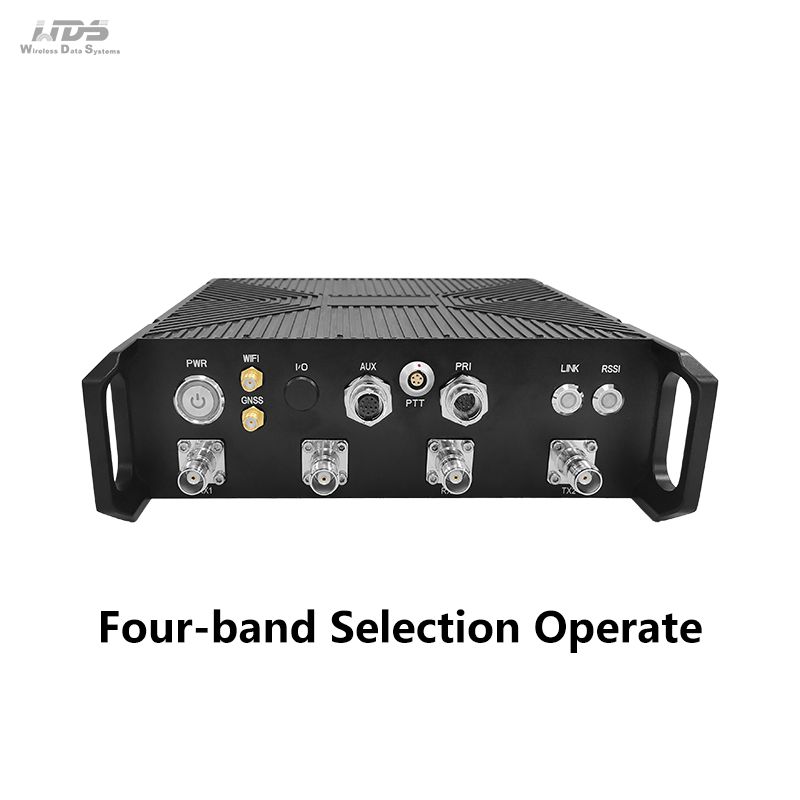

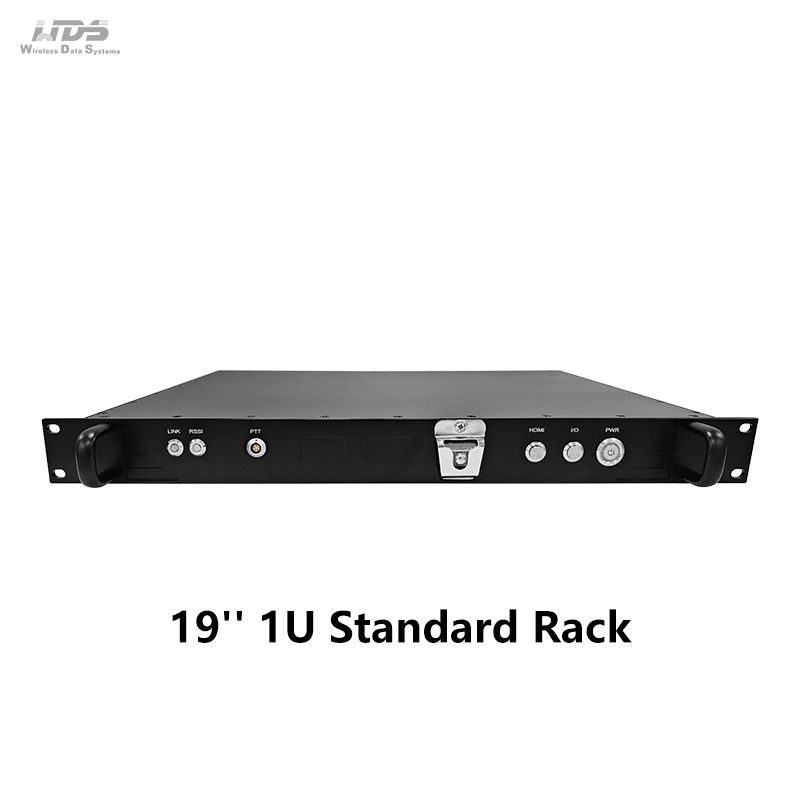

19.1x18.6x6.3cm/2.16kg, 10Watts×2/20Watts×2 25.8x21.3x6.5cm/3.95kg, 40Watts×2/50Watts×2 19.0x23.0x6.5cm/3.0kg, Dual-band Operation Simultaneously/Four-band Selection Operate 48.2x42.0x4.5cm/3.9kg, 19'' 1U Standard Rack Radio 48.2x42.0x8.8cm/5.9kg, 19'' 2U Display Screen Standard Rack Radio |
| Color |
Black (Iron Gray, Army Green optional) |
Installation |
4 Mounting Holes, Ears |
Power |
Supply Voltage |
18-32V DC, 10Watts×2/20Watts×2 28-32V DC, 40Watts×2/50Watts×2 |
Power consumption |
Operation 3-6A/Standby 0.7-0.9A@24V, 10Watts×2 Operation 6-7A/Standby 0.7-0.9A@24V, 20Watts×2 Operation 22A/Standby 0.4-1.6A@28-32V, 40Watts×2 Operation 30A/Standby 0.5-1.7A@28-32V, 50Watts×2 |
Power Selection |
Power Supply by Main Cable |
| Interface |
Basic interface |
2xTNC/2xN RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps, WIFI AP, BD/GPS (GNSS) optional. Supports transparent transmission via Ethernet and serial ports, and supports all communication protocols, including MAVLink. Service priority can be selected |
Push to talk/Auxiliary interface |
MIC, SPK, PTT, GND/1xRS232, TTL, SBUS |

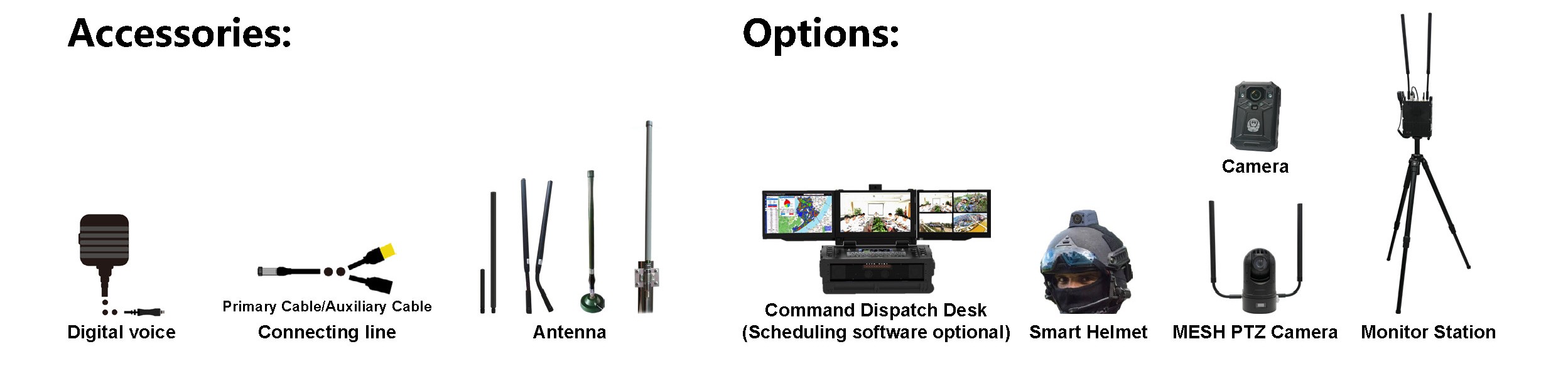

| Network Extension Optional |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
Video Extension Optional |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator |
Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Push-To-Talk has been pushed |
RSSI Link Indicator |
Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor Off - The link is interrupted |
Management Interface/ Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
