When a patrol vehicle drops behind terrain while several teams request the same video feed, choosing between unicast, multicast, and broadcast becomes an airtime and reliability decision—not a textbook distinction. Wireless multicast can reduce repeated transmissions, yet mobility, weak links, and limited acknowledgement mechanisms may change the outcome.
The key is matching each traffic type to the right delivery model. By examining multi-hop forwarding, loss tolerance, group membership, and field testing, the discussion shows when a multicast mesh network saves capacity, when unicast offers safer control, and why broadcast should remain narrowly scoped.
Begin with the intended audience. A command for one radio belongs on unicast, while a common video feed requested by several command posts is a multicast candidate. Broadcast fits only when every reachable node needs the message or the receivers are not yet known.
Multicast is not a lighter broadcast. It targets a host group, whereas broadcast exposes traffic to every device in its domain regardless of interest. This selectivity lets a multicast mesh network scale shared traffic when membership and forwarding state remain accurate.
Receiver count alone can mislead. Check whether recipients need identical content, expect individual responses, tolerate loss, and share relay paths. Security scope and route stability may change the answer even when group size stays constant.
Decision factor | Unicast | Multicast | Broadcast |
Intended receiver | One node | Selected group | All reachable nodes |
Scaling pattern | Separate flow per receiver | Shared flow with controlled replication | Reaches interested and uninterested nodes |
Feedback | Practical per destination | Needs group-aware recovery | Usually best effort |
Best tactical fit | Commands, acknowledgements, files | Shared video, voice, operational updates | Discovery and limited alerts |
Main risk | Repeated airtime | Loss or stale group state | Congestion and needless processing |
Use one practical rule. Choose unicast for individual treatment, multicast for common content, and broadcast for unknown or universal local recipients. Recheck the choice when topology or mission priority changes.
“One stream from the source” does not mean one radio transmission across the mesh. Suppose a camera sends the same feed to three receivers through two relay branches. Separate unicast sessions may repeat identical packets across shared upstream hops, then continue independently toward each destination.
A multicast mesh network can carry one logical flow across the common path and replicate it where routes diverge. The saving appears only when forwarding avoids unnecessary relays and duplicates. Broadcast or uncontrolled flooding may cause most nodes to retransmit traffic even when few receivers need it.
Wireless airtime makes this more important than raw throughput suggests. Each half-duplex relay receives before forwarding, while hidden nodes and interference increase contention. Hop count multiplies the cost of redundant packets, especially for video, so capacity should be judged as usable airtime along the path.
Simplified Multicast Forwarding was developed for limited wireless mesh and mobile ad hoc environments where efficient flooding is an acceptable trade-off. Duplicate packet detection and reduced relay sets help a multicast mesh network retain resilience without relying on blind flooding.
Mobility changes the route and the best place for replication. A receiver moving between branches may leave stale forwarding state, while a disappearing relay can briefly divide the group. Fast route repair helps, but a multicast mesh network still cannot restore every missed packet.
Wireless multicast also has a link-layer reliability gap. On many IEEE 802 systems, multicast frames lack the individual acknowledgements and retransmissions normally available to unicast. A sender may know that a packet was transmitted without knowing which members received it; lower basic rates used for weak nodes can occupy the channel longer.
Live video or rapidly refreshed positions may tolerate occasional loss because the next frame or update replaces missing data. Configuration files, tasking messages, and map packages cannot. A practical multicast mesh network uses sequence numbers, selective repair, or unicast fallback when certainty is worth more than saved airtime.
Unicast fits private, individualized, or transactional exchanges. Commands, authentication, configuration changes, acknowledgements, file transfers, and requests for a specific sensor feed benefit from a direct relationship. Retransmission, rate selection, and delivery logging are easier when one endpoint is expected to respond.
The cost appears when identical high-rate content is copied for many users. Six command posts watching one feed can create six flows over shared links, consuming capacity needed by voice or control traffic. Unicast should remain the default for certainty, not avoidable duplication.
Multicast becomes attractive when authorized users require substantially the same real-time information. Examples include a camera stream viewed by several command posts, a push-to-talk group, common operating picture updates, unit position data, and role-based alerts. The source sends one logical stream, and the multicast mesh network replicates it along paths toward members.
Membership should follow mission roles rather than include every connected node. Medical teams, vehicle elements, and command staff may need different groups on the same infrastructure. A multicast mesh network may therefore carry several small, purposeful groups instead of one oversized audience. The break-even point arrives when shared-forwarding savings exceed group maintenance, weaker-link support, and loss-recovery overhead.
Broadcast is useful during bootstrapping and discovery, when addresses or memberships are unknown. Neighbor discovery, service discovery, limited route discovery, address acquisition, and a universal local emergency notice can justify one-to-all delivery. Messages should remain short, rate-limited, scoped, and protected against repeated forwarding.
Routine video, voice, and telemetry should not use broadcast merely because it is easy. Every reachable node must receive or discard the packet, consuming airtime without proving interest. Repeated broadcasts can also collide with the control exchanges needed to maintain routes. A disciplined multicast mesh network treats broadcast as a control tool, not a distribution default.
Effective multicast starts with a clear forwarding model. Designers must decide whether group distribution occurs through Layer 2 switching, Layer 3 routing, or an application overlay, because each choice changes where state is stored and packets are replicated. Mixing mechanisms without defined boundaries often creates duplicate delivery or traffic that travels too far.
For IPv4, IGMP reports group membership; IPv6 uses MLD. Snooping devices can inspect that control traffic and build forwarding tables, directing multicast only toward interfaces with interested receivers. Without IGMP or MLD snooping, traffic in a Layer 2 domain may be flooded like broadcast, weakening the central advantage of a multicast mesh network.
Address planning, querier availability, scope, timers, duplicate detection, and relay selection need explicit settings. Long timers preserve stale members; aggressive timers create churn during brief fades. The multicast mesh network needs state that converges at the pace its applications require.
Making every multicast packet fully reliable can erase its efficiency. If every receiver acknowledges every packet, the return channel may suffer acknowledgement implosion as the group grows. Recovery should instead match the payload’s operational value and update rate.
Sequence numbers reveal gaps without immediate feedback. Forward error correction can protect continuous media, selective retransmission can recover important blocks, and unicast repair can serve the few receivers that fell behind. Rapidly refreshed data may need no repair because the next update supersedes the lost one.
This layered approach keeps the multicast mesh network efficient without treating best-effort delivery as sufficient for every payload. Reliability can be increased only for the flows that justify its airtime and control overhead. When complete, ordered delivery is mandatory, moving that flow to unicast is often cleaner than building heavy reliability around multicast.
Traffic classes should reflect mission impact. Command, voice, video, telemetry, and bulk transfer need separate queues, admission rules, and rate limits so group video cannot delay control packets. Source authentication, authorized membership, group keys, and replay protection matter because replication amplifies a forged sender’s impact. A secure multicast mesh network must reject unauthorized sources before forwarding.

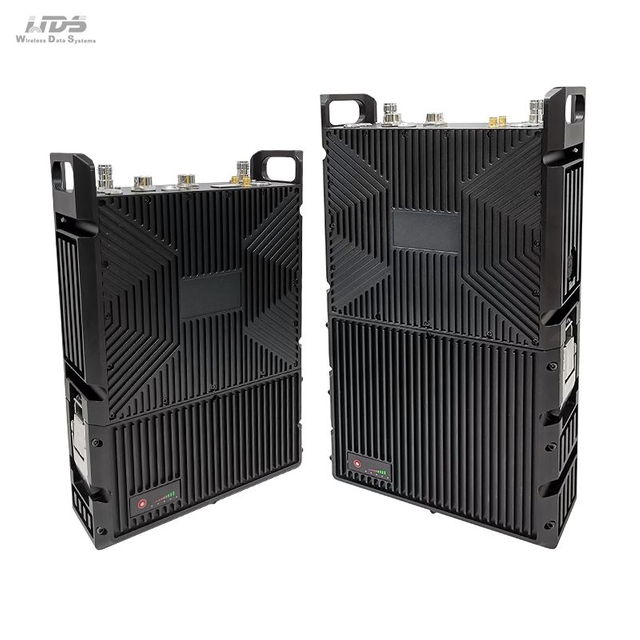

The WDS MIMOmesh vehicular and rack-mounted series combines an all-IP MANET architecture with Layer 2 or Layer 3 dynamic routing, multi-hop relay modes, adaptive data rates, QoS, selectable service priority, encryption options, and topology monitoring. These capabilities can support a controlled multicast mesh network, but they do not replace application-level policy or field validation.
Start with a flow inventory rather than a radio menu. For each application, document recipients, priority, acceptable loss, latency, group size, update rate, fallback behavior, and an owner. The policy usually assigns commands and repair to unicast; common video, voice groups, and operational updates to multicast; and scoped discovery or universal alerts to broadcast.

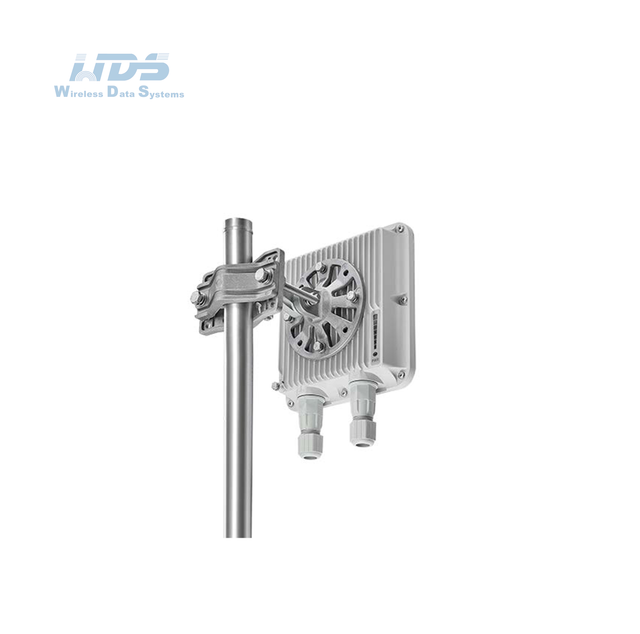

Fixed links may also form part of the architecture. The WDS Q5-E outdoor unit provides point-to-point connectivity with transparent Layer 2 transport, eight priority queues, IEEE 802.1p, IP DiffServ, IGMP snooping, and querier support. Used as controlled backhaul, those functions can preserve traffic classes and multicast forwarding decisions without making one product the entire design.
Stable line-of-sight throughput says little about a moving multicast mesh network. Tests should reproduce realistic node counts, hop depths, terrain, interference, traffic mixes, and receiver movement. Each receiver must be observed rather than hidden inside an aggregate result.
Track goodput, airtime utilization, latency, packet-loss distribution, duplicates, join and leave time, route recovery, and command delay during high-rate video. Repeat the test while a relay disappears, several members join, a weak receiver moves outward, the querier fails, or unicast repair competes with an active group stream. These cases expose whether the multicast mesh network remains stable when forwarding state and radio quality change together. Testing should continue until failures produce predictable degradation rather than unexplained collapse.
Acceptance thresholds must belong to applications, not data sheets. Video may remain usable with modest loss, while a command transaction may require a confirmed response within a strict deadline. Deployment approval should depend on measured mission behavior, including the point at which multicast gives way to unicast or a lower-rate service.
Choosing among unicast, multicast, and broadcast is ultimately a flow-by-flow decision. Unicast suits addressed control and confirmed delivery, multicast supports shared operational data with better airtime efficiency, and broadcast should remain limited to discovery or truly network-wide alerts. A reliable multicast mesh network also depends on disciplined group management, traffic prioritization, and field testing under mobility and interference.
Shenzhen Sinosun Technology Co., Ltd. offers MIMOmesh radios and outdoor wireless broadband systems that can support these hybrid architectures, helping teams separate critical traffic, extend coverage, and use available spectrum more efficiently.
A: Unicast sends data to one receiver, multicast delivers it to a selected group, and broadcast sends it to every reachable device within the network scope.
A: Multicast is preferable when several authorized nodes need the same video, voice, telemetry, or situational data, reducing repeated transmissions across shared wireless links.
A: A multicast mesh network forwards one logical data stream along shared paths, replicating packets only where routes branch toward different group members.
A: Multicast may lack per-receiver acknowledgements and retransmissions, so reliability often depends on sequence numbers, forward error correction, selective repair, or unicast fallback.
A: Broadcast reaches interested and uninterested nodes, consumes shared airtime, and can increase congestion. It is best reserved for discovery, bootstrapping, and urgent network-wide alerts.
A: Yes. Hybrid designs commonly use unicast for commands, multicast for shared operational data, and broadcast for narrowly scoped discovery or emergency functions.
