MM2 - High speed frequency hopping radio and module

MM2 radio has been designed to provide the performance,reliability,and quality that our customers have come to know and expect in our products in our products in a MM2"Mega-Mini" from factor for applications where space is at a premium.The MM2 has all of the functionality of the larger footprint FGR Series of radios.

Model:
MM2
Brand:
WDS

Quantity:
Availability:





Inquire Add to Basket

Product Advantage

1.Improved Low Signal Performance:RISC - based signal demodulation with matched filter.

2.Versatility: A single radio can operate as a master,slave,reperater,or slave/repeater.

3.Unparalleled Signal Performance: GaAs FEI RF front end with multistage SAW filtering has unmatched combination of overload immunity and sensitivity.

4.High Noise Immunity:Superior perfor-mance in noise congested environments.

5.TDMA: Time Divisible Multiple Access available.

6.115.2 - 153.6kbps

7.Secure:Proprietary spread spectrum technology prevents detection and unauthorized access;128 bit AES encryption available.

8.Reliability:Every radio 100% tested for RF performance from -40℃ to +85℃.

9.Size & Performance:Smallest data radio with the highest performance available.

10.Low power consumption.

11.UL Approved

Technical Parameters

Transmitter
Frequency Range	902-928M/225-400(228-235)M/310-390M/410-480M/1.35-1.39GHz(FHSS)(DTS)
Output Power	10 mW to 1 W,1 to 2W (Military & rxport versions only)
Range - Line of Sight	60miles
Modulation	2 level GFSK
RF Data Rate	Selectable speeds 115.2 to 153.6kbps(MM2),115.2k to1.2Mbps(N920/N320/N425/N1350)
Occupied Bandwidth	230kHz/611.2kHz
Hopping Patterns	15 per Band,105 total,user selectable
Hopping Channels	50 to 112,user selectable
Hopping Bands	7,user selectable
Frequency Zones	16 Zones
RF Connector	MMCX(Straight)
Receiver
Sensitivity	-108(MM2)/-107(N1350)/-106(N920/N320/N425)dBm @ 115.2 kbps for BER10-4 -103dBm @ 153.6 kbps for BER10-4/-100dBm @ 1.2 Mbps for BER10-4
IF Selectivity	40 dB at fc +/-230 kHz
RF Selectivity	50 dB at 896 MHz, 935MHz
Dynamic Range	+10 dBm 3rd Order Intercept Point at Input Connector
DATA Transmission
Error Detection	32 bit CRC, Retransmit on error
Data Encryption	Proprietary Spread Spectrum Technology
Data Interface	1200bps - 230.4kbps
Data Connector	Straight 14-pin dual row header 2.0mm spacing
Data Throughput	115.2-153.6kbps(MM2),115.2k-1.2Mbps(N920/N320/N425/N1350)
Power Requirements
Operating Voltage	MM2:+5 VDC(+/-5%)，N920/N320/N425/N1350:3.3 VDC(+/-3%)
Current(mA)	Mode	+5VDC(MM2)	+3.3VDC(N920/N320/N425)	+3.3VDC(N1350)
	Transmit	635mA	1.3A	100mA
	Receive	135mA	160mA	120mA
	Idle	19mA	20mA	20mA
	Sleep	6mA	1mA	1mA
General Information
Operating Temperature Range	-40℃ to +80℃(-40℉ to +185℉)
Dimensions/ Weight	FGR2(N920/N320/N425/N1350)		5.7x9.8x4.3cm, 228g
			11.0x5.8x2.3cm, 136g
	FGR2-Multi-port		11.4x9.8x4.3cm, 300g
			8.7x5.4x2.2cm, 135g
	FGR2-15Watts		15x12x6cm, 900g
			11x8x4cm, 300g
	MM2		50.8x36x9.6mm, 14g
	N920/N320/N425/N1350		32x51x6.35mm, 18g
Humidity	0 to 95% non-condensing

FGR2应用

Related Products

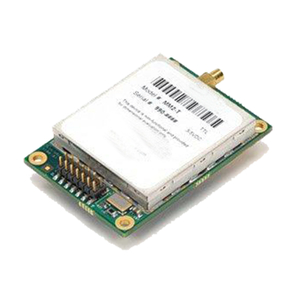

FGR2 Data Module
