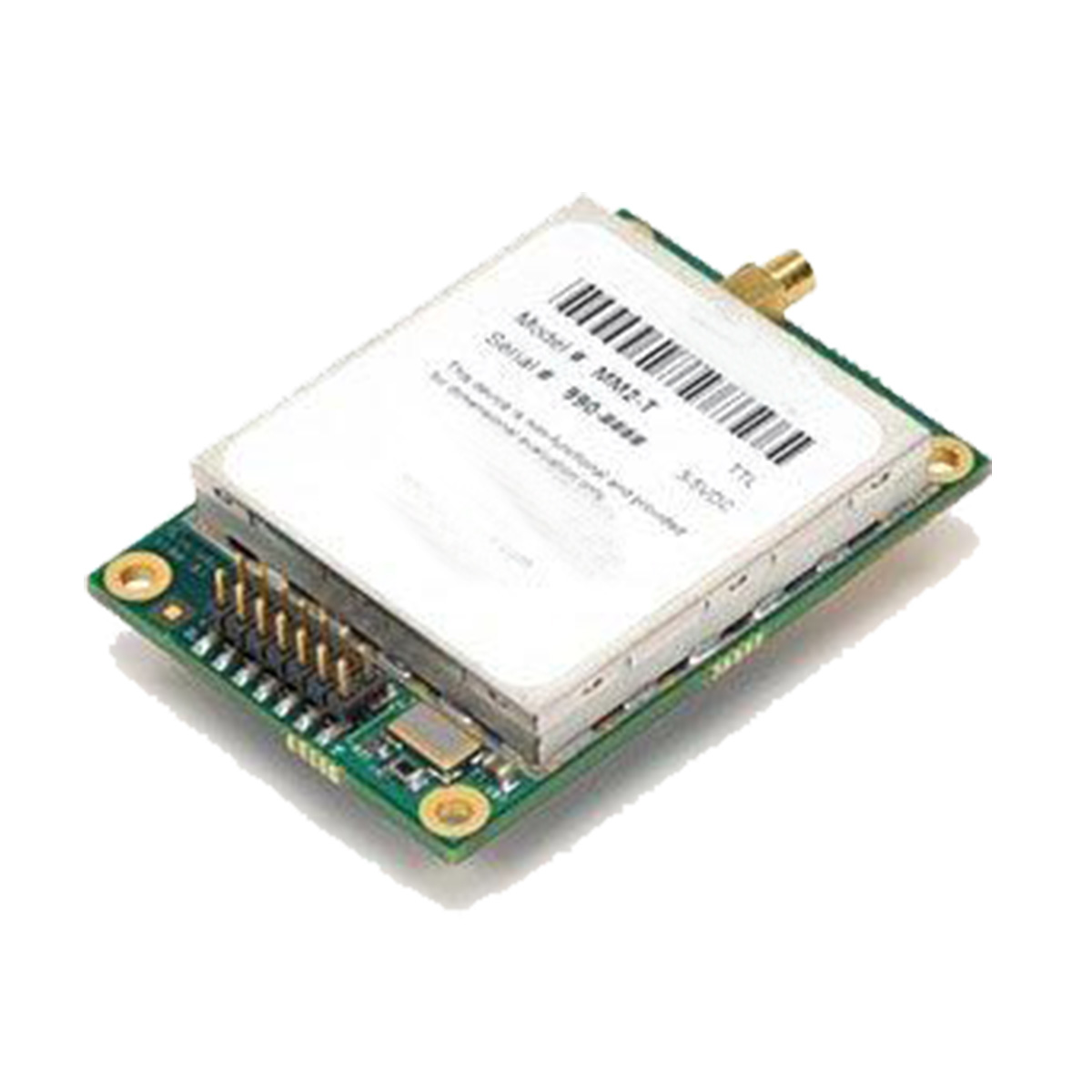

MM2 radio has been designed to provide the performance,reliability,and quality that our customers have come to know and expect in our products in our products in a MM2"Mega-Mini" from factor for applications where space is at a premium.The MM2 has all of the functionality of the larger footprint FGR Series of radios.
Product Advantage
1.Improved Low Signal Performance:RISC - based signal demodulation with matched filter.
2.Versatility: A single radio can operate as a master,slave,reperater,or slave/repeater.
3.Unparalleled Signal Performance: GaAs FEI RF front end with multistage SAW filtering has unmatched combination of overload immunity and sensitivity.
4.High Noise Immunity:Superior perfor-mance in noise congested environments.
5.TDMA: Time Divisible Multiple Access available.
6.115.2 - 153.6kbps
7.Secure:Proprietary spread spectrum technology prevents detection and unauthorized access;128 bit AES encryption available.
8.Reliability:Every radio 100% tested for RF performance from -40℃ to +85℃.
9.Size & Performance:Smallest data radio with the highest performance available.
10.Low power consumption.
11.UL Approved
Technical Parameters
Transmitter |
|
Frequency Range |
902-928M/225-400(228-235)M/310-390M/410-480M/1.35-1.39GHz(FHSS)(DTS) |
Output Power |
10 mW to 1 W,1 to 2W (Military & rxport versions only) |
Range - Line of Sight |
60miles |
Modulation |
2 level GFSK |
RF Data Rate |
115.2k to1.2Mbps(N920/N320/N425/N1350) |
Occupied Bandwidth |
230kHz/611.2kHz |
Hopping Patterns |
15 per Band,105 total,user selectable |
Hopping Channels |
50 to 112,user selectable |
Hopping Bands |
7,user selectable |
Frequency Zones |
16 Zones |
RF Connector |
MMCX(Straight) |
Receiver |
|
Sensitivity |
-107(N1350)/-106(N920/N320/N425)dBm @ 115.2 kbps for BER10-4 -103dBm @ 153.6 kbps for BER10-4/-100dBm @ 1.2 Mbps for BER10-4 |
IF Selectivity |
40 dB at fc +/-230 kHz |
RF Selectivity |
50 dB at 896 MHz, 935MHz |
Dynamic Range |
+10 dBm 3rd Order Intercept Point at Input Connector |
DATA Transmission |
|
Error Detection |
32 bit CRC, Retransmit on error |
Data Encryption |
Proprietary Spread Spectrum Technology |
Data Interface |
1200bps - 230.4kbps |
Data Connector |
Straight 14-pin dual row header 2.0mm spacing |
Data Throughput |
115.2k-1.2Mbps |
Power Requirements |
|
Operating Voltage |
3.3 VDC(+/-3%) |
Current(mA) |
Mode+5VDC(MM2)+3.3VDC(N920/N320/N425)+3.3VDC(N1350)Transmit635mA1.3A100mAReceive135mA160mA120mAIdle19mA20mA20mASleep6mA1mA1mA
|
General Information |
|
Operating Temperature Range |
-40℃ to +80℃(-40℉ to +185℉) |
Dimensions |
F50EX008/Q508X006 128 L x 61.8 W x 19.7 H(mm) N920/N320/N425/N1350 32 L x 51 W x 6.35 H(mm) |
Weight |
18g(N920/N320/N425/N1350) |
Humidity |
0 to 95% non-condensing |
