Node density can make a MANET either resilient or inefficient. With too few reachable nodes, routes become fragile and network partitions are more likely; pack radios too closely under heavy traffic, and shared airtime, interference, and routing overhead can start to erode performance. For anyone planning a Wireless Mesh Radio deployment, the real challenge is finding a density that supports reliable multi-hop paths without creating unnecessary contention. Understanding how density affects packet delivery, throughput, latency, and route stability makes it easier to size and position nodes for real operating conditions.
Sparse MANETs suffer first from reachability. When the distance between nodes approaches or exceeds the usable radio range, a source may have only one possible relay toward its destination—or none at all. Movement, terrain masking, antenna orientation, or a temporary obstruction can then break the route and divide the network into disconnected groups.
Adding nodes often helps significantly at this stage because new relays fill geographic gaps and create alternative paths. Packet delivery can improve because the network is no longer dependent on a single intermediate link, while route repair has more neighboring candidates to work with. Low-density conditions are particularly vulnerable to poor connectivity, and carefully positioned gateway or backbone nodes can improve communication between otherwise separated groups.
The practical lesson for a Wireless Mesh Radio deployment is that coverage gaps should be solved before raw network capacity becomes the main concern. In many cases, a strategically positioned airborne or elevated relay contributes more useful connectivity than several extra nodes placed inside an area that is already well covered.
Past a certain point, additional neighbors create a different problem. Wireless nodes operating on shared spectrum must compete for transmission opportunities, and packets may need retransmission when collisions or interference prevent successful reception. More neighbors can also mean more route advertisements, discovery messages, broadcasts, and other control exchanges occupying the same medium as application traffic.
A dense network is not automatically congested, because activity matters as much as physical proximity. Fifty radios exchanging occasional telemetry may leave substantial airtime unused, whereas the same topology carrying several video streams, command traffic, and frequent routing updates can place much greater pressure on the channel. Link sharing and interference eventually limit how much useful throughput each active node can obtain.
The useful operating region therefore lies between two extremes. A Wireless Mesh Radio network needs enough neighbors to maintain alternate routes, but adding nodes stops helping when the extra path diversity is outweighed by RF competition, retransmissions, and control overhead. Throughput can be poor in sparse conditions because connectivity is weak, then fall again in very dense, heavily loaded conditions as repeated transmissions consume more available bandwidth.
Packet delivery ratio, or PDR, measures how many transmitted application packets successfully reach their destinations. Moderate increases in node density can improve PDR because routing has more ways to bypass a moving, blocked, or failed link. Two or three usable relay choices are normally more resilient than a topology in which one radio is the only bridge between two parts of the network.
Location matters more than the raw total, however. Ten radios clustered around one vehicle may increase local neighbor count without improving connectivity to a remote group. A smaller number of well-distributed Wireless Mesh Radio nodes can provide more meaningful route diversity when they occupy positions that close actual coverage gaps.
This distinction also explains why density should not be treated as nodes per square kilometer alone. Links must have sufficient quality to be operationally useful. A neighbor that is technically detectable but highly unstable under mobility adds far less resilience than a dependable relay positioned along a useful route.
Better reachability does not guarantee better application throughput. Every multi-hop transmission consumes radio resources, and forwarding the same data across several hops requires repeated access to the wireless medium. When several flows overlap geographically, their transmissions can compete for airtime even though routing connectivity remains excellent.
Latency can rise for similar reasons. Packets may spend longer waiting in queues, backing off before channel access, or being retransmitted after unsuccessful delivery attempts. As traffic intensifies, a Wireless Mesh Radio network can therefore remain fully connected while individual users experience lower throughput, higher delay, or more jitter.
The difference between a stated PHY data rate and application-level throughput is particularly important here. Real application capacity is reduced by multiple-access behavior, protocol overhead, retransmissions, fading, interference, route length, and traffic competition. A link capable of a high peak rate under ideal conditions may deliver considerably less usable throughput after several hops or when many nearby nodes are active.
Density State | Main Benefit or Problem | First Metric to Check |
Too sparse | Missing or fragile routes | PDR / route availability |
Moderate | More usable alternate paths | PDR + latency |
Dense, light traffic | Strong route redundancy | Per-node throughput |
Dense, heavy traffic | Contention and queueing | Throughput + latency + retransmissions |
Routing also consumes capacity. As neighbor count increases, a MANET may have more topology information to maintain, more potential paths to evaluate, and more control messages associated with route discovery or maintenance. If nodes are moving quickly, those relationships can change before previously learned information remains useful for long.
The effect depends heavily on routing design. Reactive protocols create routes when they are needed, while proactive approaches maintain more routing information continuously; adaptive systems may use additional link or topology inputs when choosing paths. There is therefore no universal node count at which every Wireless Mesh Radio network becomes inefficient.
Control overhead should be measured alongside user traffic rather than treated as a separate theoretical issue. Excessive signaling can reduce data-routing performance when control and application packets share the same capacity-limited channel. Connectivity, usable capacity, and routing efficiency must consequently be tested as separate outcomes.
Calling a 50-node MANET "dense" tells an engineer very little without describing the operating area. Fifty nodes within a compact industrial site may create dozens of overlapping neighbor relationships, while the same radios distributed across many square kilometers could form a sparse multi-hop chain. Clustering can make the contrast even stronger: one area may be crowded while another contains a critical relay gap.
A more useful concept is effective neighbor density—the number of nodes with which a radio can maintain a usable link under actual operating conditions. Terrain, buildings, NLOS propagation, antenna placement, transmit power, interference, and frequency choice can all change that figure without changing the number of devices deployed.
This is where Wireless Mesh Radio planning differs from counting dots on a coverage map. Two nodes separated by a modest distance may communicate poorly when an obstacle blocks the path, while an elevated relay at a longer geometric distance may provide a much stronger route. Physical density and effective RF density should not be assumed to be equivalent.
Mobility adds time to the density problem. A vehicle convoy may maintain fairly predictable relative spacing, whereas UAVs crossing different altitudes and directions can cause neighbor relationships to appear and disappear rapidly. Higher mobility can increase route changes, link failures, and recovery activity even when the total number of radios stays constant.
Traffic density creates another distinction. Topology density describes how many potential radio neighbors exist; traffic density describes how many of those nodes are transmitting or relaying meaningful amounts of data. A Wireless Mesh Radio carrying light telemetry places very different demands on shared airtime from one forwarding simultaneous video streams.
Testing should therefore reproduce the expected application mix. Command-and-control traffic may be relatively light in bandwidth but highly sensitive to delay, while video can consume much more sustained capacity. A topology that performs comfortably under idle or low-rate tests may behave very differently once realistic traffic and mobility occur together.
Network planning should begin with geography and application requirements rather than an arbitrary target number of nodes. The aim is to establish enough reliable neighboring links for route diversity while preserving capacity for the traffic that those routes must carry. A practical Wireless Mesh Radio planning process can follow six steps:
1. Map the operating area, expected movement, and likely node concentrations.
2. Identify NLOS zones, terrain obstacles, and worst-case separation between radios.
3. Estimate useful neighbor count under unfavorable—not merely average—positions.
4. Identify nodes likely to become critical relays between geographic groups.
5. Add the expected simultaneous telemetry, command, voice, or video load.
6. Increase or reposition nodes only when they add useful routes rather than mainly enlarging contention domains.
The resulting design may use fewer radios than a coverage-first plan, but each node has a clearer networking role. Where two groups are separated geographically, one appropriately positioned relay can be more effective than increasing density inside either group. That approach also makes capacity testing easier because planners can identify which relays are likely to carry disproportionate traffic.
Sparse deployments should prioritize stable paths. Relay placement, antenna position, transmit power, operating frequency, channel bandwidth, and link robustness can determine whether nodes form a continuous multi-hop topology. Raising density is only one of several possible corrections.

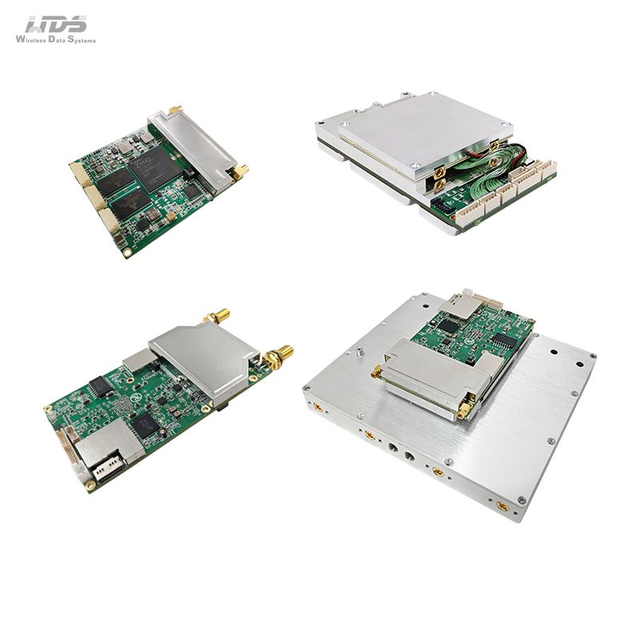

The WDS MIMOmesh family includes the MIMO-AB series as a lightweight airborne Wireless Mesh Radio for UAV integration and strategically positioned airborne relay nodes. Both support MANET + MIMO operation, distributed dynamic routing, and multi-hop relay functionality. Airborne and ground nodes can therefore occupy different positions within the same Wireless Mesh Radio topology rather than functioning only as additional endpoints.
Configurable channel bandwidth, transmission power control, MIMO techniques such as beamforming and diversity, spectrum-aware channel selection, and remote topology monitoring provide additional tools for adjusting link behavior. In a sparse network, improving effective reach, strengthening a critical relay link, or changing node placement may produce more value than simply adding more radios.
Dense deployments require the opposite emphasis. Once neighboring coverage is plentiful, the engineering objective shifts toward preventing unnecessary transmissions and oversized contention domains from consuming useful capacity. High transmit power is not automatically beneficial if it causes more nodes to hear and compete with one another than the routing design actually needs.
Channel width, frequency use, traffic prioritization, multicast behavior, and relay loading deserve particular attention. When a Wireless Mesh Radio carries both high-bandwidth video and delay-sensitive control data, routing everything through one convenient relay may create a local bottleneck even though many alternate nodes are available. Monitoring per-node throughput, link quality, retransmissions, and latency can reveal these hotspots earlier than an aggregate network-throughput figure.
Features such as configurable bandwidth, transmit-power control, beamforming, spatial diversity and multiplexing, spectrum scanning, intelligent frequency selection, adaptive frequency hopping, and dynamic multi-hop routing can help manage changing RF conditions. They can expand the operating envelope of a Wireless Mesh Radio network, but they do not remove the underlying relationship between shared airtime and node activity.
No single "ideal nodes per square kilometer" figure applies across MANETs. Networks with the same node count can deliver different throughput, packet delivery, and latency depending on routing behavior, topology, mobility, channel conditions, and offered traffic. Field validation should therefore include both the sparsest expected topology and the most concentrated, traffic-heavy condition.
Node density should be treated as a balance between connectivity and shared-channel efficiency, not as a simple “more is better” metric. Reliable MANET performance depends on useful neighbor relationships, node placement, mobility, traffic load, and available airtime. Testing both sparse and heavily loaded conditions helps determine a practical density range before deployment.

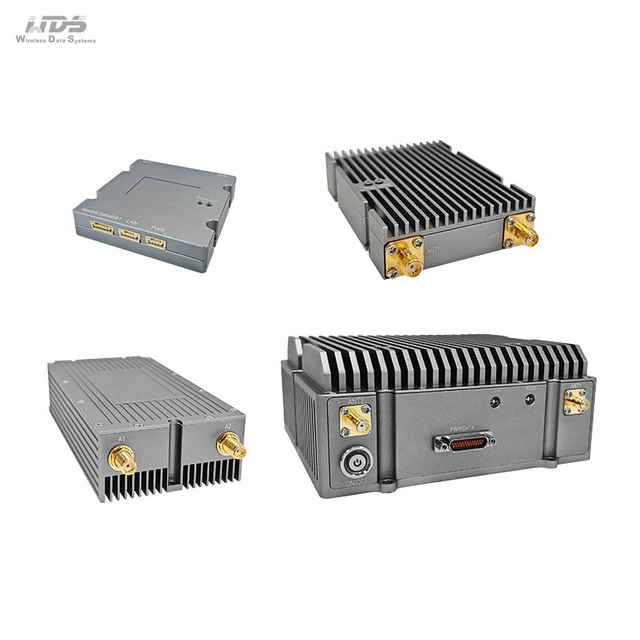

Shenzhen Sinosun Technology Co., Ltd. provides MIMOmesh Wireless Mesh Radio solutions for airborne, vehicular, and other mobile-network applications. These options can support flexible relay placement and multi-hop connectivity when building MANET networks around real coverage and traffic requirements.
A: No. Additional nodes can improve coverage and route redundancy, but excessive density may increase interference, channel contention, routing overhead, retransmissions, and latency.
A: There is no universal value. Suitable density depends on coverage area, radio range, mobility, terrain, traffic volume, routing behavior, and required network resilience.
A: Moderate density can improve connectivity by providing alternate paths. At higher active densities, competing transmissions and multi-hop forwarding can reduce available airtime and per-node throughput.
A: Sparse networks may lack enough intermediate nodes to maintain continuous multi-hop routes. Movement or obstruction of a critical relay can then isolate nodes or partition the network.
A: Mobility continually changes neighbor relationships and available routes. Higher density can provide backup paths, but frequent topology changes may also increase route maintenance and control traffic.
