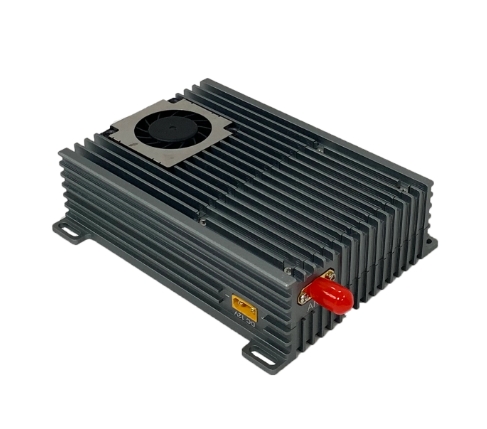

What Is A HD Video Transmission Radio?

In an era where real-time visual data transmission defines operational success across industries, HD video transmission radios emerge as critical enablers of robust wireless networks. This comprehensive guide explores the technical architecture, industrial applications, and evolving standards of these systems, with particular focus on Shenzhen Huaxiasheng Technology's COFDM-based solutions that redefine reliability in NLOS (Non-Line-of-Sight) environments.

Defining HD Video Transmission Radios

Core Functionality & Technical Components

HD video transmission radios are specialized wireless devices designed to transmit uncompressed or low-latency compressed high-definition video over radio frequencies. Unlike conventional Wi-Fi or Bluetooth systems, these radios employ advanced modulation schemes to maintain signal integrity in challenging environments.

Key Components:

• COFDM Modulator: Implements Coded Orthogonal Frequency Division Multiplexing for multipath resilience

• H.264/H.265 Encoder: Reduces bandwidth requirements while preserving 1080P/4K quality

• AES-256 Encryption Module: Ensures military-grade data security

• MIMO Antenna Array: Enables spatial multiplexing for throughput optimization

Wireless Networks Integration

As backbone devices for mission-critical wireless networks, these radios address three fundamental challenges:

1. Latency Control: <100ms end-to-end delay for real-time drone/UAV operations

2. Spectrum Efficiency: 4-8MHz channel utilization achieving 20-50Mbps throughput

3. Network Resilience: Self-healing mesh capabilities in 300MHz-6GHz bands

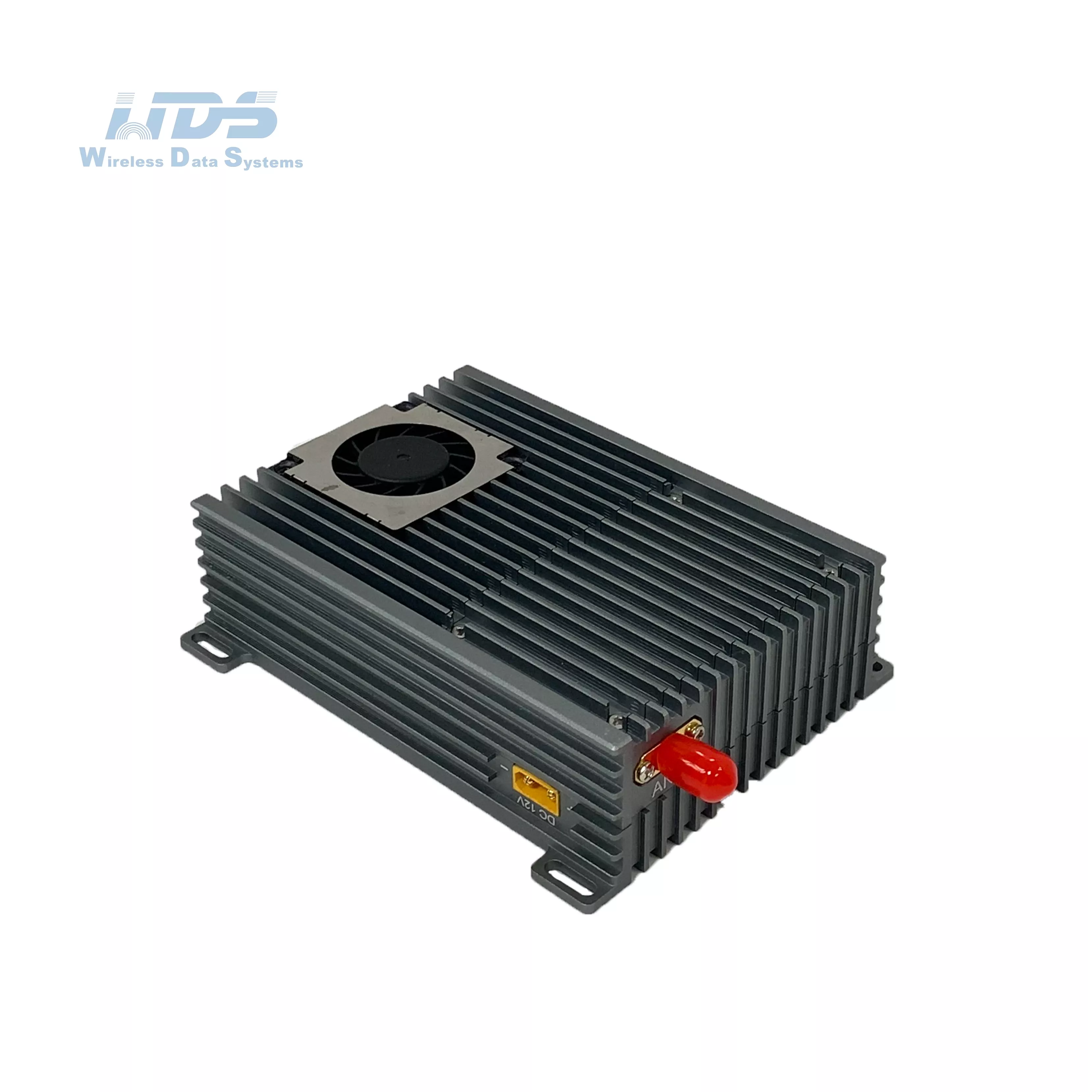

Technical Breakdown: Huaxiasheng's COFDM-HD System

Performance Specifications

Network Architecture Advantages

Huaxiasheng's system implements a three-layer wireless network topology:

1. Physical Layer: 4x4 MIMO with polarization diversity

2. Data Link Layer: TDMA/TDD hybrid scheduling

3. Application Layer: IP-encapsulated video streams with QoS prioritization

This architecture supports:

• Simultaneous transmission of 4x 1080P streams

• Dynamic bandwidth allocation based on motion detection

• GPS/BeiDou synchronization for mobile mesh networks

Emerging Trends Shaping Wireless Video Transmission

1. AI-Driven Spectrum Optimization

Modern radios now integrate machine learning processors for:

• Predictive channel fading compensation

• Automatic interference nulling using CRAN (Cognitive Radio) principles

• Bitrate adaptation based on scene complexity analysis

2. 5G Convergence Strategies

Hybrid networks combining COFDM robustness with 5G speed are gaining traction:

• Bandwidth Bridging: Using 5G mmWave (26GHz) for backhaul + COFDM for last-mile

• Network Slicing: Allocating dedicated video slices in 5G SA cores

• MEC Integration: Edge computing nodes for on-site video analytics

3. Quantum-Resistant Cryptography

Next-gen systems are adopting lattice-based algorithms to counter quantum computing threats while maintaining <1% processing overhead.

4. Sustainable Power Management

Huaxiasheng's latest models feature:

• Solar-ready DC inputs (12-48V)

• Adaptive power scaling from 5W (standby) to 40W (peak)

• Energy harvesting from RF ambient signals

Industrial Applications Redefined

Public Safety & Emergency Response

• Incident Command Systems: Live 4K streaming from firefighting drones

• Body-Worn Solutions: 1080P60 helmet cams with <120ms dispatch center latency

• Disaster Recovery: Rapid deployment of ad-hoc video networks

Broadcast & Media

• Wireless OB Vans: Replacing SMPTE fiber with zero-compression RF links

• EPG Metadata Injection: Simultaneous program-associated data casting

• Hybrid Event Production: Merging 5G/COFDM feeds for immersive AR experiences

Industrial IoT Integration

• Automated Quality Control: Multi-angle 4K inspection systems

• Remote Crane Operations: Stereoscopic video for precision handling

• Smart City Networks: Traffic monitoring with embedded LIDAR data

Future Development Roadmap

1. THz Band Exploration

Prototype systems using 90-300GHz bands demonstrate:

• 100Gbps throughput for 16K RAW video

• Sub-millisecond latency through OAM multiplexing

• Molecular absorption compensation algorithms

2. Neuromorphic Encoding

Brain-inspired compression techniques achieving:

• 90% bandwidth reduction vs H.265

• Context-aware quality preservation

• Subjective QoE optimization

3. Self-Organizing Networks

Autonomous radio clusters featuring:

• Distributed ledger technology for node authentication

• AI-mediated spectrum sharing

• Self-diagnosis/repair capabilities

Why Choose Huaxiasheng's Solution?

1. Military-Grade Reliability

• MIL-STD-810G vibration/shock resistance

• IP67-rated enclosures (-40°C to +75°C operation)

• 100,000hr MTBF certified

2. Regulatory Compliance

• FCC Part 90/ETSI EN 300 113

• CE-RED/IC RSS-210

• Customizable for regional NB-IoT standards

3. Scalable Deployment

• Rack-mountable base stations

• Man-portable field units <3kg

• UAV-optimized micro transmitters

4. Lifecycle Support

• Over-the-air firmware updates

• Predictive maintenance via IIoT sensors

• Cryptographic key rotation services
