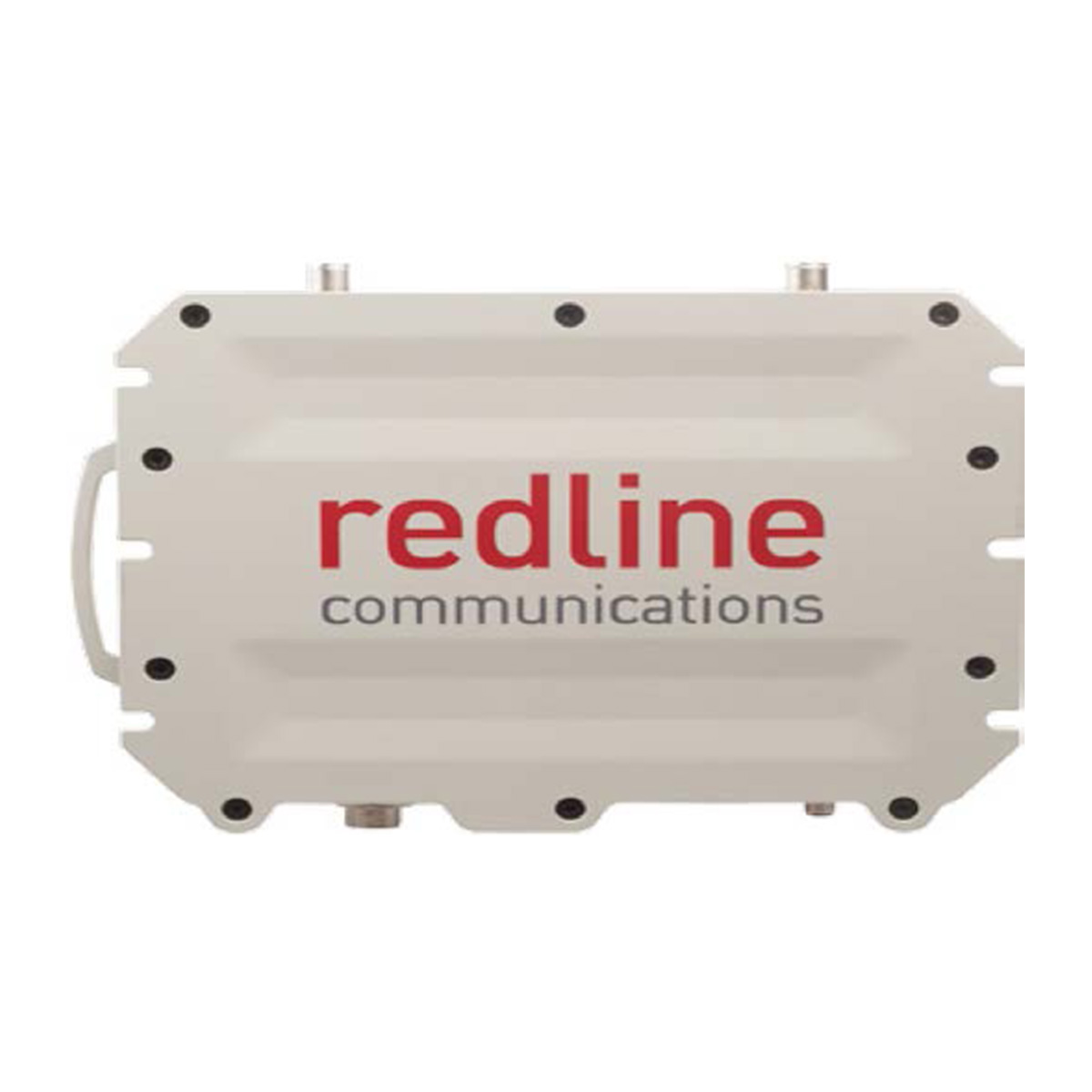

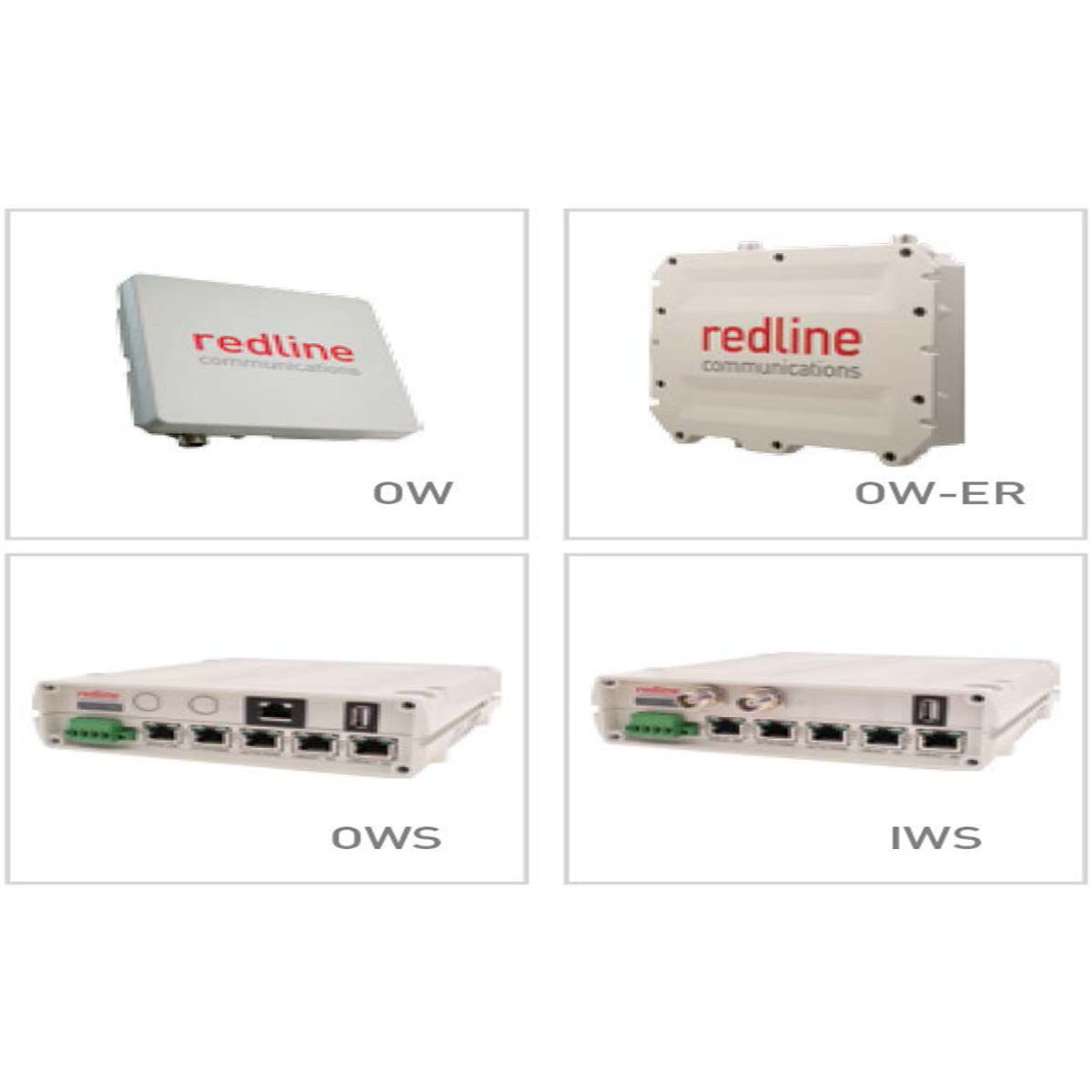

The RDL-3000 XP Ellipse manages all security, traffic scheduling and Quality of Service (QoS) functions for Redline’s extensive family of outdoor wireless TCP/IP remote data terminals. This highly configurable wireless base station features powerful processing capabilities to reliably transport any mix of wireless traffic between the base station and multiple remote sites.
Product Advantage
1. Highly reliable transport hub supports all RDL-3000 XP remote wireless data terminals including auto-acquire systems
2. High throughput for concurrent transport of M2M telemetry and telecontrol, data, video and voice services
3. Durable all-weather enclosure for reliable operation in extreme temperatures and environmental conditions
4. Over-the-air monitoring, configuration and software keyed features enable upgrades without physical access
5. Software-defined architecture enhances reliability and service lifetime
Technical Parameters
Max Tx Power | +31 dBm1 (Max combined tx power, MIMO mode/frequency band specific) |
RF Band (MHz) | 470-6981, 2000-23001, 2300-27001, 3300-38001, 4940-58751 |
Antenna Info | External MIMO sectoral or omni directional |
Capability | LOS/OLOS/NLOS software-defined PMP Base Station1 or PTP terminal1 |
Wireless QoS | Auto link distance ranging, auto channel scanning, optimal channel selection, ATPC, DFS |
Transmission | OFDM (orthogonal frequency-division multiplexing), TDD/TDMA 2 x 2 MIMO A/B with STBC & MRRC, high-rejection Tx/Rx filtering |
Throughput | Up to 186.6 Mbps1 UBR |
Channel Size (MHZ) | 0.875/1.25/1.75/2.5/3.5/5/6/7/10/12/14/20 [software selectable1] |
Modulation & Coding | BPSK to 256 QAM 7/81 |
Spectral Efficiency | 9.3 bits per second per Hertz |
Channel Efficiency | Up to 93% |
Max Range | 150 km (93 mi) |
Number of Remotes | 120 |
Security | Management Encryption: TLS v1.2, AES-256, SHA1, Device Authentication: ECDSA digital signature-based authentication or MAC-based mutual authentication, Data Encryption: AES-128/256 with ECDH secure key exchange (over-the-air, FIPS 197 compliant), NIST FIPS-140-2 |
Network Features | Transparent bridge, DHCP pass-through, 802.1Q VLAN (Q-in-Q), VLAN Whitelisting, Syslog, SNTP, spectrum analyzer |
Layer 2 | 160 Mbps aggregate1 |
Latency | <10 ms |
Processing (PPS) | ＞280,000 |
MAC | Per link: dynamic ARQ, dynamic adaptive modulation, dynamic and fixed frame, Fast Fusion Link Adaptation |
QoS | 802.1p, 802.3x, CIR & PIR settings, up to 8 services per terminal |
Management Interface | Redline ClearView NMS, SNMP v2c/v3, HTTP/HTTPS (Web), Telnet/SSH (CLI), Management VLAN tagging, RADIUS User Authentication |
Provisioning | MAC-Based; Template-based1; Automatic using Redline ClearView NMS1 |
Redundancy | 1+1 Warm Standby1 , HSR, PRP or RSTP compatible |
Location & Timing | Built-in GPS1 |
Power | <17W; Standard IEEE 802.3at (PoE); CAT5 cable 100m (330 ft) max |
Temperature | -40 to 75 ˚C (-40 to 167 ˚F)3 |
Connections | 10/100 Ethernet (RJ-45), 2xRF N(f), GPS TNC(f) |
Surge Protection | Built-in: PoE and RF ports |
Enclosure | IP67 (IEC 60259) |
Humidity | 100% humidity, condensing |
