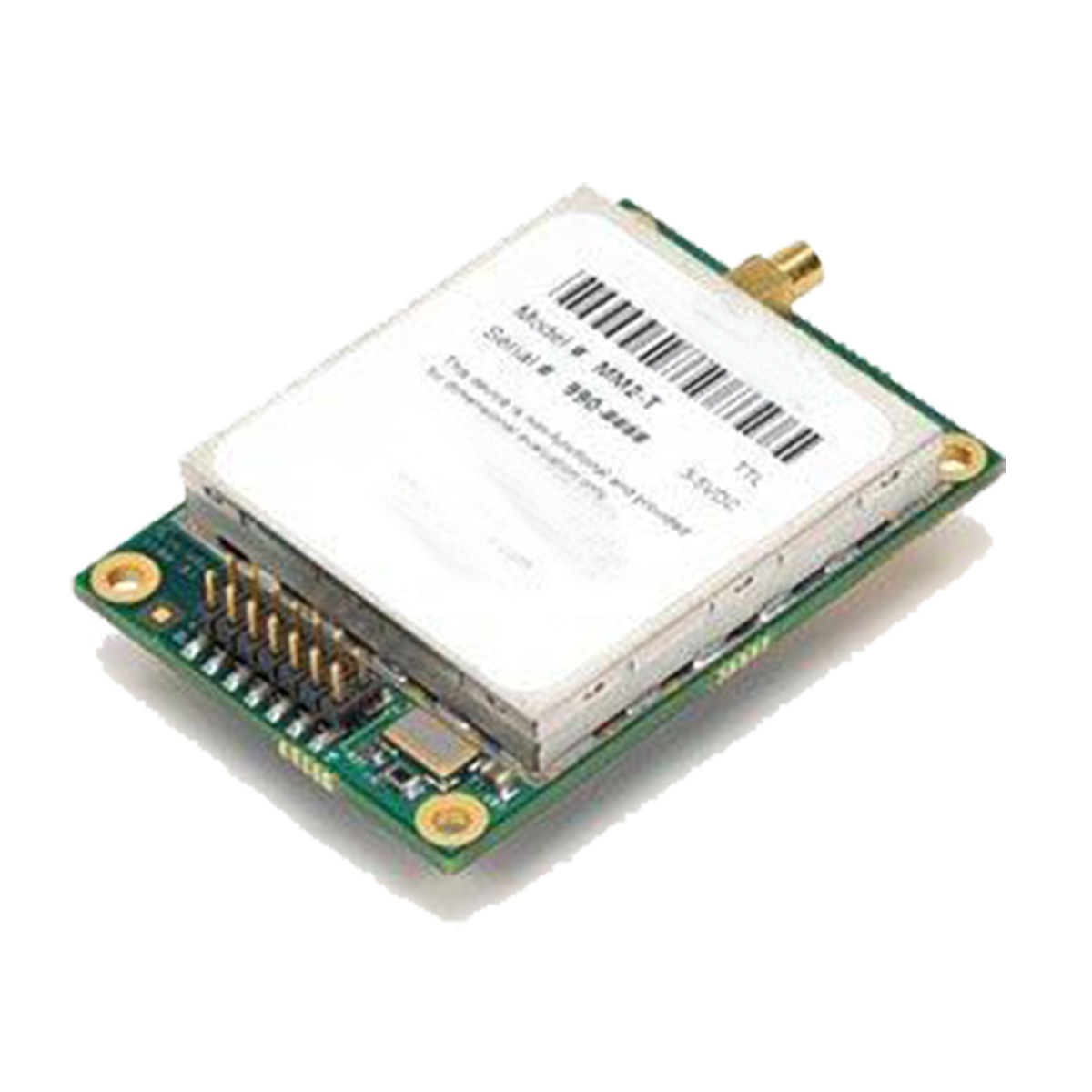

MM2 radio has been designed to provide the performance,reliability,and quality that our customers have come to know and expect in our products in our products in a MM2"Mega-Mini" from factor for applications where space is at a premium.The MM2 has all of the functionality of the larger footprint FGR Series of radios.
Product Advantage
1.Improved Low Signal Performance:RISC - based signal demodulation with matched filter.
2.Versatility: A single radio can operate as a master,slave,reperater,or slave/repeater.
3.Unparalleled Signal Performance: GaAs FEI RF front end with multistage SAW filtering has unmatched combination of overload immunity and sensitivity.
4.High Noise Immunity:Superior perfor-mance in noise congested environments.
5.TDMA: Time Divisible Multiple Access available.
6.115.2 - 153.6kbps
7.Secure:Proprietary spread spectrum technology prevents detection and unauthorized access;128 bit AES encryption available.
8.Reliability:Every radio 100% tested for RF performance from -40℃ to +85℃.
9.Size & Performance:Smallest data radio with the highest performance available.
10.Low power consumption.
11.UL Approved
Technical Parameters
Transmitter | |
Frequency Range | 902-928M/225-400(228-235)M/310-390M/410-480M/1.35-1.39GHz(FHSS)(DTS) |
Output Power | 10 mW to 1 W,1 to 2W (Military & rxport versions only) |
Range - Line of Sight | 60miles |
Modulation | 2 level GFSK |
RF Data Rate | Selectable speeds 115.2 to 153.6kbps |
Occupied Bandwidth | 230kHz/611.2kHz |
Hopping Patterns | 15 per Band,105 total,user selectable |
Hopping Channels | 50 to 112,user selectable |
Hopping Bands | 7,user selectable |
Frequency Zones | 16 Zones |
RF Connector | MMCX(Straight) |
Receiver | |
Sensitivity | -108dBm @ 115.2 kbps for BER10-4 -103dBm @ 153.6 kbps for BER10-4/-100dBm @ 1.2 Mbps for BER10-4 |
IF Selectivity | 40 dB at fc +/-230 kHz |
RF Selectivity | 50 dB at 896 MHz, 935MHz |
Dynamic Range | +10 dBm 3rd Order Intercept Point at Input Connector |
DATA Transmission | |
Error Detection | 32 bit CRC, Retransmit on error |
Data Encryption | Proprietary Spread Spectrum Technology |
Data Interface | 1200bps - 230.4kbps |
Data Connector | Straight 14-pin dual row header 2.0mm spacing |
Data Throughput | 115.2-153.6kbps |
Power Requirements | |
Operating Voltage | +5 VDC(+/-5%) |
Current(mA) | Mode+5VDC(MM2)+3.3VDC(N920/N320/N425)+3.3VDC(N1350)Transmit635mA1.3A100mAReceive135mA160mA120mAIdle19mA20mA20mASleep6mA1mA1mA |
General Information | |
Operating Temperature Range | -40℃ to +80℃(-40℉ to +185℉) |
Dimensions | 50.8 L x 36 W x 9.6 H(mm) |
Weight | 14g |
Humidity | 0 to 95% non-condensing |
