COFDM Vs OFDM for Mobile Video Transmission

Views: 0     Author: Site Editor     Publish Time: 2026-09-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

A mobile video link may look stable during a stationary line-of-sight test, then freeze when a vehicle turns behind a building or a UAV drops below terrain. The problem is not range alone: motion, multipath, NLOS obstruction, coding, modulation, and guard-interval choices all affect whether the picture remains usable. OFDM-based broadcast standards combine these elements within a complete transmission profile.

The COFDM vs OFDM decision therefore comes down to priorities. The discussion focuses on how each approach handles difficult channels, where bitrate and reliability trade off, and how to choose and test a link for real mobile video conditions.



Which Performs Better for Mobile Video?

The difference is not simply “coded” versus “uncoded”

OFDM is the underlying transmission method: information is distributed across many closely spaced orthogonal subcarriers. COFDM describes an OFDM profile built around channel coding, interleaving, guard intervals, and channel-aware reception. In established terrestrial broadcasting systems, these features work together because coding cannot remove delayed echoes, while a guard interval cannot rebuild bits lost in deep fades. DVB-T, for example, combines coding, interleaving, selectable constellations, and multiple guard-interval options in one OFDM-based system.

Consequently, COFDM vs OFDM cannot be judged from the acronyms alone. Coding rate controls redundancy, interleaving spreads concentrated errors, and modulation order determines how much signal quality is required. Channel estimation, antenna diversity, synchronization, buffering, and codec behavior can be equally decisive. A well-engineered OFDM radio may outperform a COFDM unit configured for maximum payload with too little fade margin.

A robust COFDM profile is generally preferable when one live feed must remain visible through short fades, movement, reflections, and intermittent obstruction. In that mission, losing some detail is usually less damaging than losing the entire picture. Conservative settings trade part of the payload for a better chance of recovery.

Broadband OFDM becomes more attractive when the network must carry several cameras, telemetry, voice, control traffic, or general IP data in both directions. Planned antenna sites and predictable paths also reduce the need to reserve as much capacity for severe fading. Neither approach is automatically superior: the meaningful field metrics are usable-route coverage and recovery time after blockage.

Decision factor

COFDM-oriented video link

Broadband OFDM link

Main priority

Continuity of one primary feed

Aggregate capacity and flexibility

Typical traffic

Video with limited auxiliary data

Multiple video and IP services

Difficult route

Strong starting point for changing NLOS

Better with planned or stable geometry

Best metric

Freeze resistance and recovery

Capacity and traffic management



Why Movement and Obstructions Change the Result

Reflections damage different parts of the signal

A mobile receiver rarely sees one clean radio path. Buildings, vehicles, steel structures, water, and terrain create delayed copies of the same transmission, each arriving with a different amplitude and phase. Those copies may reinforce some subcarriers while cancelling others, producing frequency-selective fading. Average received power can therefore look acceptable while several carriers sit in deep nulls.

OFDM helps by dividing the data among many relatively low-rate subcarriers, making a wideband frequency-selective channel easier to equalize. Delayed energy still has limits. An echo arriving within the guard interval can usually be handled without destroying symbol orthogonality; one arriving later can produce inter-symbol and inter-carrier interference. Extending the interval tolerates more delay but reduces the airtime available for video, creating a direct robustness-versus-capacity trade-off.

Movement continually changes this interference pattern. A small change in position can determine whether two paths reinforce or cancel, so the picture may fail even though the transmitter has moved only a short distance. Signal-strength readings alone do not capture that behavior.

NLOS is more than a shorter transmission distance

Clear LOS provides a dominant direct path. Obstructed LOS weakens it through foliage, vehicles, partial structures, or poor Fresnel clearance. Full NLOS removes it, leaving the receiver dependent on reflection, diffraction, and limited penetration. These paths are usually weaker and more sensitive to position.

The visible symptoms include macroblocking, rapid quality changes, frozen frames, decoder resets, and slow recovery after passing an obstacle. COFDM can improve tolerance, but it cannot make a wall or hill disappear. Frequency, antenna height, polarization, receiver sensitivity, cable loss, interference, and fade margin still decide whether sufficient useful energy reaches the decoder.

Doppler makes the channel change continuously

Relative motion changes path length and received frequency. Reflected paths can experience different Doppler shifts, making the channel vary across both time and frequency. If that variation becomes too fast, channel estimates grow stale and subcarrier orthogonality deteriorates, creating inter-carrier interference. Doppler spread and time-selective multipath are therefore major challenges for mobile OFDM receivers.

Speed alone does not predict the result. Carrier frequency, travel direction, acceleration, moving reflectors, pilot design, and receiver tracking all matter. A stationary open-field demonstration therefore cannot represent an urban vehicle route, indoor camera path, maritime link, or low-altitude UAV mission.

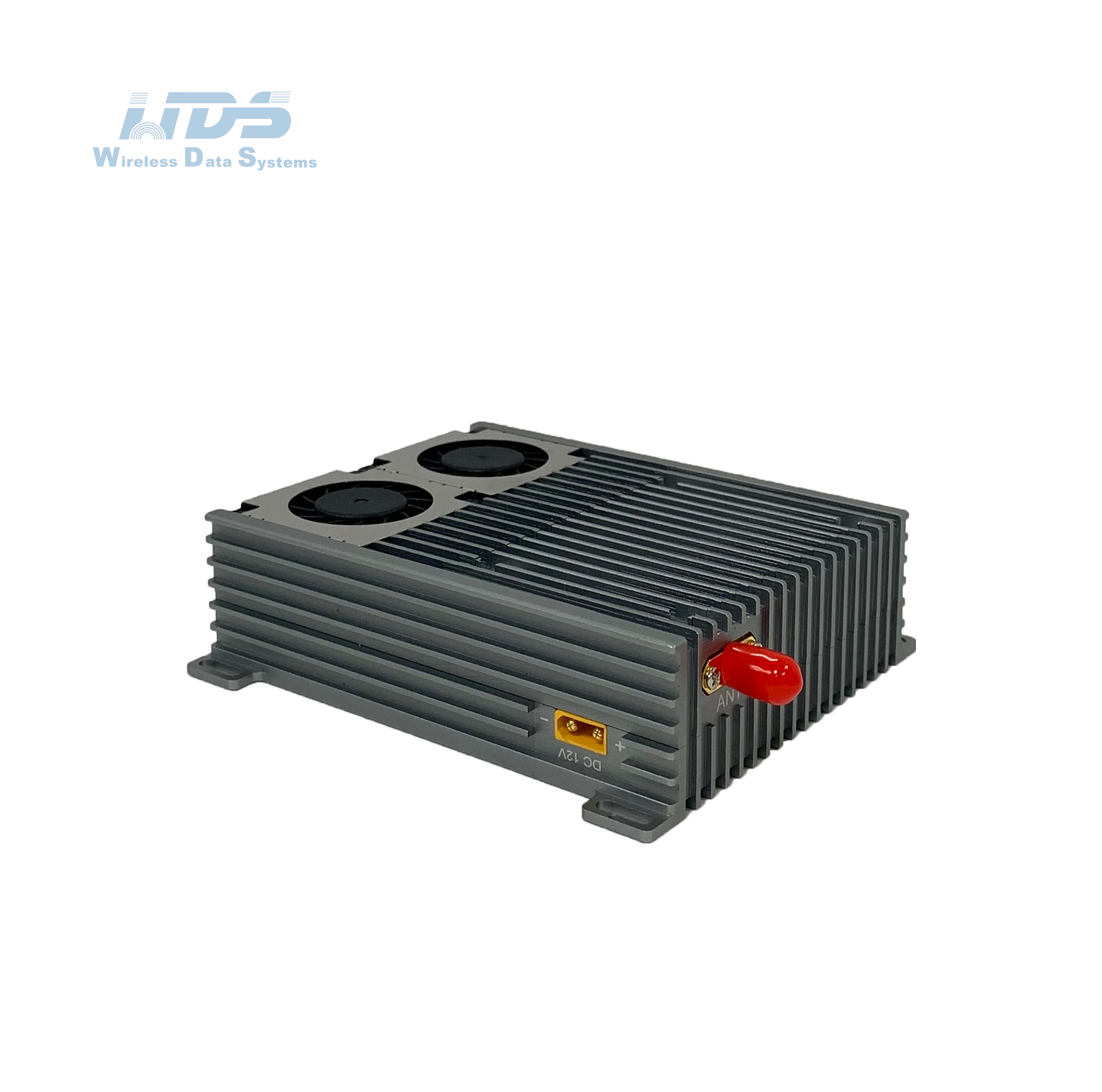

COFDM vs OFDM



The Settings That Trade Bitrate for Reliability

Coding and interleaving help recover damaged video data

Forward error correction adds structured redundancy before transmission. When fading or noise corrupts part of the coded stream, the receiver may reconstruct the information without requesting another copy. Stronger coding improves error tolerance but leaves less radio capacity for image data. That trade-off directly affects COFDM vs OFDM performance in the field.

Interleaving changes the shape of the damage. A short fade or frequency notch may destroy a cluster of adjacent bits; spreading related bits across time or subcarriers turns that burst into smaller errors that a decoder can handle more effectively. This improves recovery when neighboring carriers are weakened together.

For live monitoring, the highest nominal rate is not always the best setting. A stable 4 Mbps stream may be more useful than a 12 Mbps feed that repeatedly freezes. Retransmitted packets can also arrive after the moment they were meant to show.

Modulation and guard interval must match the route

Modulation order controls how many bits each subcarrier carries. QPSK provides the most margin but the lowest payload. 16-QAM balances resilience and capacity, while 64-QAM carries more information but requires a cleaner, more stable channel. More constellation states increase capacity while reducing ruggedness at a given transmit power.

The guard interval should cover meaningful echo delays without wasting too much of each symbol. Longer settings suit reflective industrial sites or dense streets; shorter settings may be efficient on clear air-to-ground paths. Choosing the longest interval or strongest FEC rate by default can leave too little throughput for the required resolution and frame rate.

RF bandwidth adds the same kind of compromise. Wider channels support higher video rates but may face more interference or spectrum constraints. Narrower channels limit payload while allowing a more conservative profile. These parameters should be tuned together.

RF throughput is not the same as usable video performance

Maximum RF throughput describes only one layer of the link. Encoded bitrate, protocol overhead, buffering, decoding, display processing, and recovery behavior determine what reaches the operator. Network latency is also different from full encode-to-display delay.

The configurable COFDM HD video system offers QPSK, 16-QAM, and 64-QAM modulation; FEC rates of 1/2, 2/3, 3/4, and 7/8; guard intervals from 1/4 to 1/32; adjustable 2–8 MHz bandwidth; and a 2–20 Mbps adaptive stream. It also supports H.264 and H.265 encoding, multiple video inputs, and separate system- and video-delay specifications. These options demonstrate why codec and RF settings must be assessed together.

The available configurations allow an integrator to balance image quality, delay, range, and recovery. A fair COFDM vs OFDM test should compare profiles that deliver similar displayed quality rather than one conservative mode against another system’s maximum-rate setting.

Reproduce the real route during testing

Use the final frequency, bandwidth, antennas, polarization, cable lengths, mounting positions, transmit power, codec, resolution, frame rate, and target bitrate. Install the receiver at its operational height rather than on a convenient elevated stand. Vehicle or aircraft speed must also match deployment conditions.

Divide the route into clear LOS, obstructed LOS, full NLOS, and high-reflection sections. Repeat difficult segments several times so consistent dead zones can be separated from random interference. Both candidates should deliver comparable image quality and end-to-end delay; otherwise, the system carrying less information gains an artificial reliability advantage.

Record weather, nearby traffic, temporary obstructions, antenna orientation, and competing RF activity. Testing must also use frequencies, bandwidths, and power levels permitted at the deployment site.



Conclusion

COFDM vs OFDM is ultimately a system-level decision, not a contest between labels. COFDM-oriented links generally suit mobile video that must remain usable through multipath, brief fades, and changing NLOS conditions, while broadband OFDM can better serve planned routes requiring higher two-way capacity and mixed IP traffic. The right choice depends on coding, modulation, guard interval, antennas, latency, and actual route testing.

Shenzhen Sinosun Technology Co., Ltd. offers COFDM HD video and wireless transmission products that help users balance continuity, image quality, delay, and network capacity for practical mobile deployments.



FAQ

Q: What is the main difference between COFDM and OFDM?

A: OFDM distributes data across orthogonal subcarriers, while COFDM emphasizes forward error correction and interleaving to improve recovery when fading, interference, or damaged subcarriers affect reception.

Q: Is COFDM better than OFDM for mobile video transmission?

A: COFDM is often better for continuity-critical video in mobile, multipath, or changing NLOS conditions. Broadband OFDM may suit controlled routes requiring higher bidirectional capacity and mixed IP traffic.

Q: Why does COFDM perform well in multipath environments?

A: Its multicarrier structure, error correction, interleaving, and guard interval help manage delayed signal copies and recover data affected by frequency-selective fading or short signal interruptions.

Q: Can COFDM transmit video without a clear line of sight?

A: COFDM can improve reliability under NLOS conditions by using reflected or diffracted signal paths, but performance still depends on frequency, antennas, obstacles, interference, and available link margin.

Q: How does the guard interval affect wireless video transmission?

A: A longer guard interval tolerates greater multipath delay but reduces usable data capacity. It should match the route’s echo conditions while preserving enough bandwidth for the required video bitrate.

A: Test the actual route using final antennas, frequency, speed, codec, and bitrate. Compare video freezes, recovery time, end-to-end latency, image quality, and usable coverage rather than maximum range alone.
